PRELIMINARY
®
®
INNOVATION and EXCELLENCE
Single Output
LQN D12 Models
Non Isolated, 12V
IN
, 0.8-5V
OUT
45-50 Amp, ¼-Brick DC/DC Converters
Features
■
3-phase buck regulators for new
distributed 12V power architectures
12V input (10.2-13.8V range)
0.8/1/1.2/1.5/1.8/2/2.5/3.3/5V
OUT
@ 45-50A
Non-isolated, fixed-frequency,
synchronous-rectifier topology
¼-brick size, through hole or SMT
Current share/N+1 redundancy
±1% setpoint accuracy
Efficiencies to 94% @ 45 Amps
Noise as low as 20mVp-p
Stable no-load operation
On/Off control, trim & sense functions
Output Overvoltage Protection
Input Over/Undervoltage lockout
Thermal shutdown
Designed to meet UL/EN/IEC60950
EMC compliant
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
The LQN D12 Series of non-isolated quarter bricks are ideal building blocks for
emerging, on-board power-distribution schemes in which isolated 12V buses deliver
power to any number of non-isolated, step-down buck regulators. LQN D12 DC/DC's
accept a 12V input (10.2V to 13.8V input range) and convert it, with the highest
efficiency in the smallest space, to a 0.8, 1, 1.2, 1.5, 1.8, 2, 2.5, 3.3 or 5 Volt output
fully rated at 45-50 Amps.
LQN D12's are ideal POLPP's (point-of-use/load power processors) and they
typically require no external components. They occupy the standard quarter brick
board space (1.45" x 2.3") and come in either through-hole packages or surface-
mount packages with a profile of only 0.4" (0.5" including heatsink).
The LQN's best-in-class power density is achieved with a fully synchronous,
fixed-frequency, 3-phase buck topology that delivers extremely high efficiency (95%
for 5V
OUT
models), low noise (20mVp-p typ.), tight line/load regulation (±0.25%
max.), quick step response (70µsec), stable no-load operation, and no output
reverse conduction.
The fully functional LQN's feature input over/undervoltage lockout, output over-
voltage and overcurrent detection, continuous short-circuit protection, overtempera-
ture protection, an output-voltage trim function, a remote on/off control pin, a sense
pin and a current share function (optional). High efficiency enables the LQN D12's to
deliver rated output currents of 50 Amps at high ambient temperatures and minimal
air flow½.
If your new system boards call for multiple supply voltages, check out the
economics of on-board 12V distributed power. If you don't need to pay for multiple
isolation barriers, DATEL's non-isolated LQN D12 brick's will save you money.
½½½½½½
½½½
½½½½½½½
½½½½½
➀
½½½½½½
½½½½
½½½½½
½½½½½½
½½½
½½½½½½½½
½½½½½
½
½½
½½½½½½
½½½½½½½
½½½
½½½½½½
½½½½½½
½½½½½½
½½½½½½½
½½½
½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½
½
½½½
½½½½
½½½
➀
Only one phase of three shown.

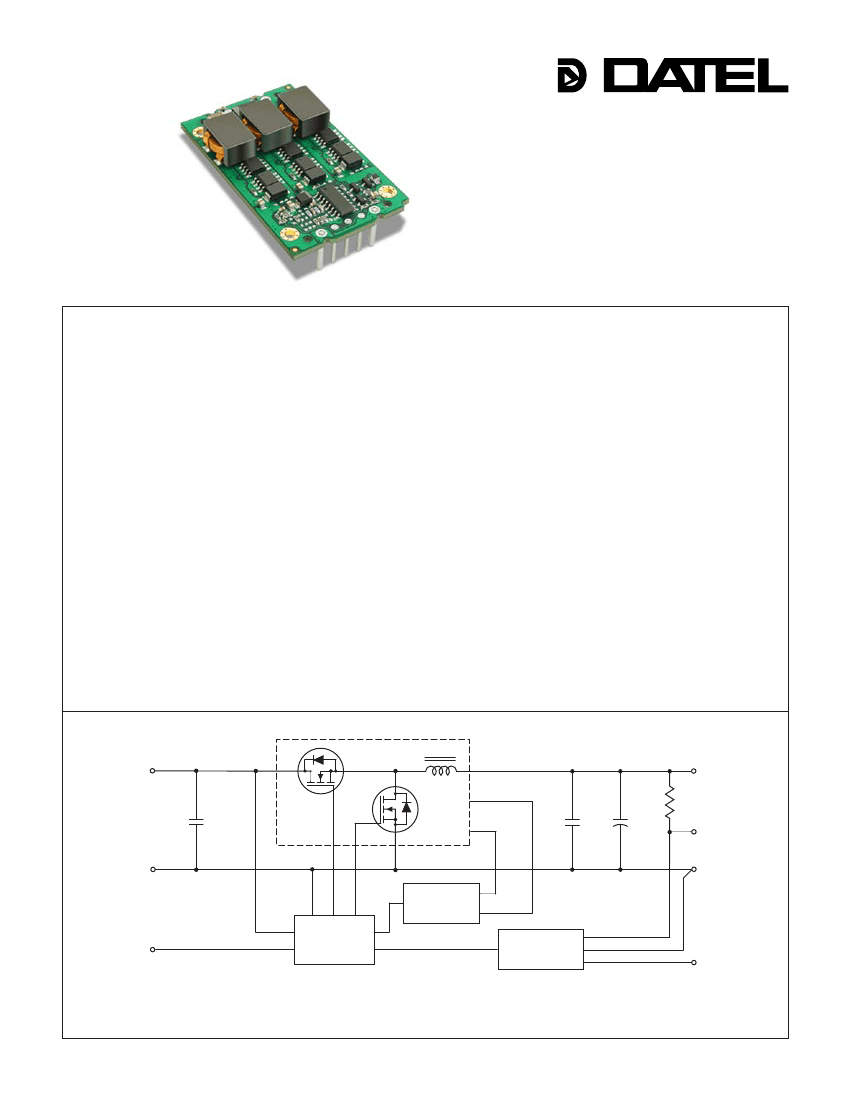

Figure 1. Simplified Schematic
DATEL, Inc., Mansfield, MA 02048 (USA) · Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356 · Email: sales@datel.com · Internet: www.datel.com
LXN D12 Series
N O N - I S O L AT E D , 4 5 - 5 0 A Q UA R T E R B R I C K , D C / D C C O N V E R T E R S
Performance Specifications and Ordering Guide
Output
Model
LQN-0.8/50-D12
LQN-1/50-D12
LQN-1.2/50-D12
LQN-1.5/50-D12
LQN-1.8/50-D12
LQN-2/50-D12
LQN-2.5/45-D12
LQN-3.3/45-D12
LQN-5/45-D12
➀
Input
Regulation (Max.)
➂
Line
Load
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
V
OUT
(Volts)
0.8
1
1.2
1.5
1.8
2
2.5
3.3
5
I
OUT
(Amps)
50
50
50
50
50
50
45
45
45
R/N (mVp-p)
➁
Typ.
Max.
30
30
30
20
20
20
20
30
30
50
50
50
50
50
50
50
50
50
V
IN
Nom. Range
➄
(Volts)
(Volts)
12
12
12
12
12
12
12
12
12
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
10.2-13.8
I
IN
➃
(mA/A)
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
Efficiency
Full Load
½ Load
Min.
TBD%
TBD%
TBD%
TBD%
TBD%
TBD%
TBD%
TBD%
TBD%
Typ.
83%
85%
87%
88%
89.5%
90%
91.5%
93%
95%
Typ.
83%
86%
87.5%
88%
89.5%
90%
92%
93.5%
95.5%
Package
(Case,
Pinout)
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
C41,C42, P62
➀
Typical at T
A
= +25°C under nominal line voltage and full-load conditions, unless otherwise
noted. All models are tested and specified with external 33µF input capacitor and 470µF
poscap output capacitor paralleled with a 100µF ceramic output capacitor.
➁
Ripple/Noise (R/N) is tested/specified over a 20MHz bandwidth.
➂
These devices have no minimum-load requirements and will regulate under no-load conditions.
Regulation specifications describe the output-voltage deviation as the line voltage or load is
varied from its nominal/midpoint value to either extreme.
➃
Nominal line voltage, no-load/full-load conditions.
➄
The operating input voltage is 10.2V to 13.8V. However, under full load the startup voltage must
be 10.8V minimum for reliable startup. Once running, the operating voltage may decay to 10.2V.
See page 9 for Part Number Structure.

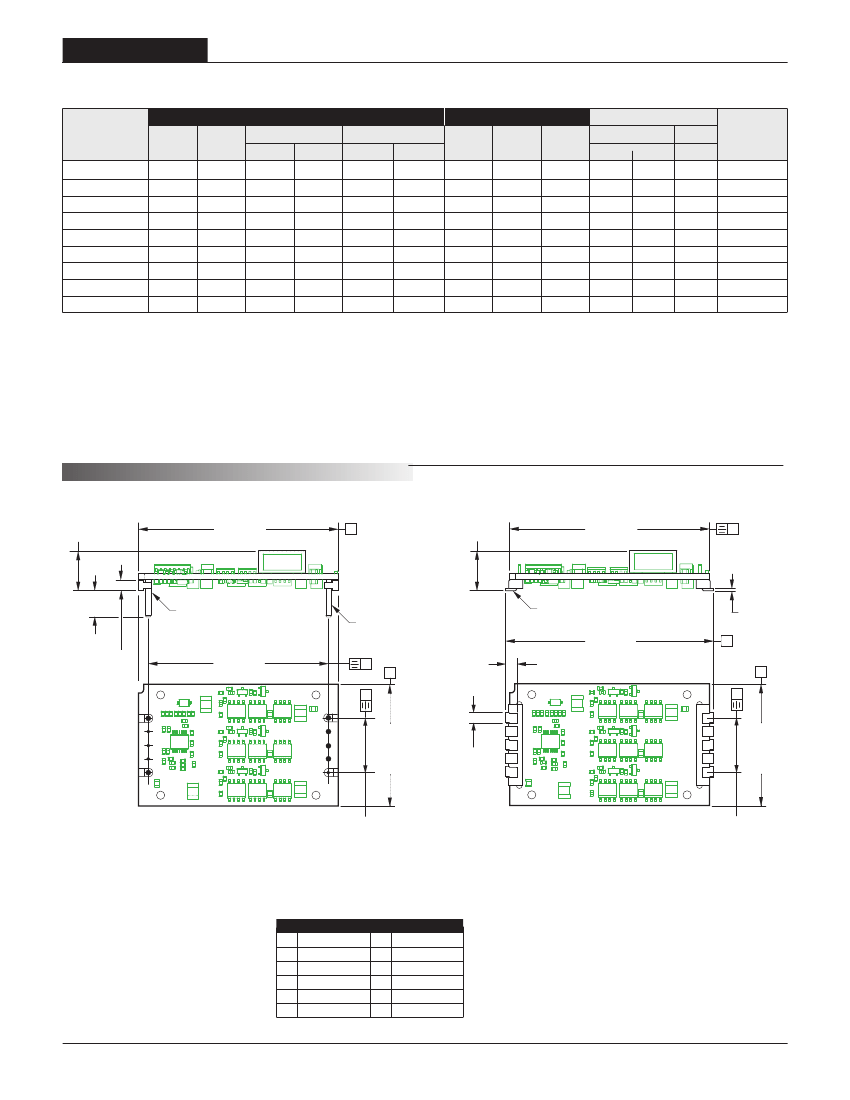

M E C H A N I C A L
S P E C I F I C A T I O N S
½½½½½
½½½½½½½
½½½½½½½½½½½½
½
½½½½½
½½½½½½½
½½½½½½½½½½½½
½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½
½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½
½½½½½½
½½½½½½½½½½½½
½½½½½½½½½½
½½½½½½
½
½
½
½
½
½
½
½
½½½½½½½½½½½½
½
½
½
½
½
½
½
½
½
½
½½
½
½½½½½½½½½½
½½½½½½
½
½
½
½½
½½½½½½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
C41 Through-Hole Package
I/O Connections
Function P62
Pin
Function P62
Input Common
6
Output Common
V
OUT
Trim
7
+Output
N.C.*
8
Output Common
On/Off Control
9
+Output
+Input
10
+Sense In
C42 Surface-Mount Package
Pin
1
2
3
4
5
* A "Power Good" output is available
on pin 3 under special order.
Contact DATEL.
