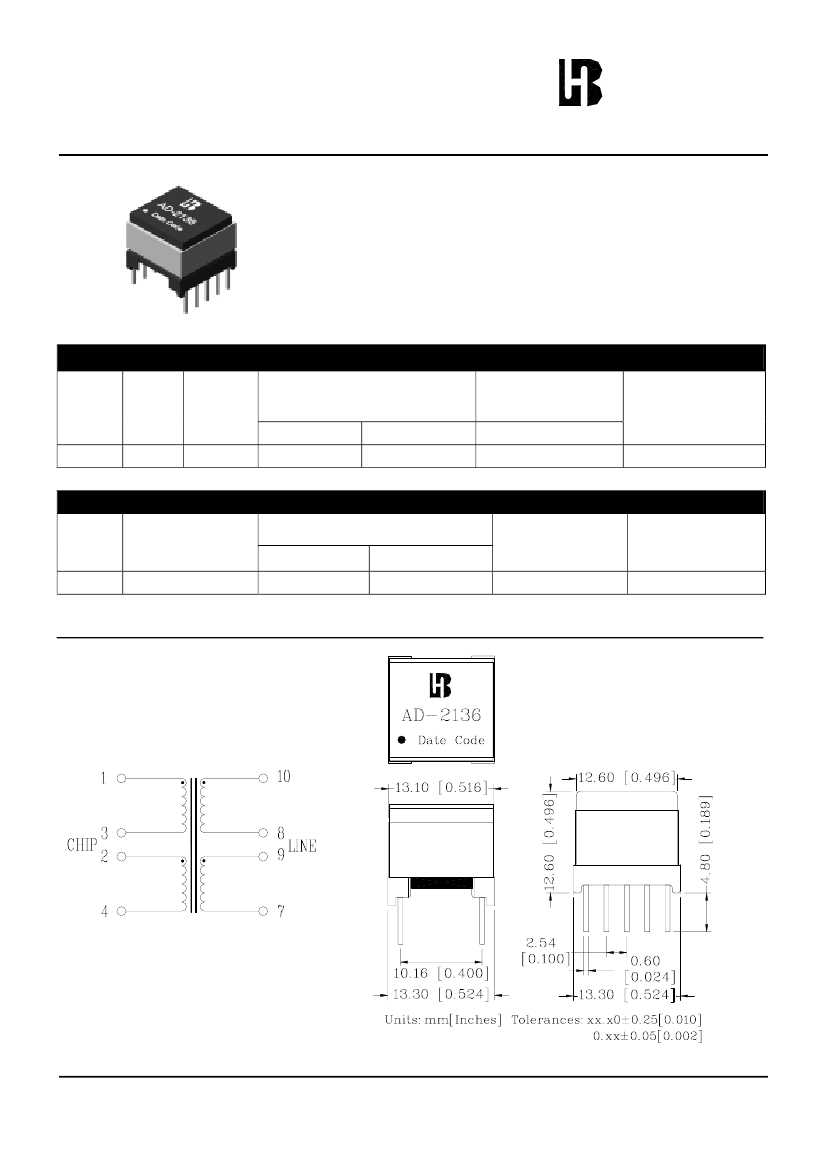

ADSL LINE TRANSFORMER

P/N: AD-2136 DATA SHEET

BOTHHAND

USA

Bothhand USA. e-mail: sales@bothhandusa.com http://www.bothhand.com

Feature

Recommended by Analog Devices for use with their

AD20MSP930 ADSL Chipset.

Excellent THD performance in a small footprint.

Operating Temperature.: -10℃ to+60℃.

Storage Temperature.: -25

℃

to +75

℃

Electrical Specifications @ 25°C

Part

Number

AD-2136

THT

Turn Ratio

(±2%)

(1-4):(10-7)

1:1.1

OCL

@ 10KHz,0.1 V

(1-4),(2+3) short

1.75mH Min

Leakage Inductance

Longitudinal

(µH Max)

Balance (dB Min)

@300 KHz,0.1V

(from 30KHz to1.1 KHz)

(10-7),(8+9) short (1-4),(2+3,10+7,9+8)short

2.03~2.3mH

7.5

-45

Mounting

Additional Specifications

Part

Number

AD-2136

THD (dB Max)

(Linearity-Typical)

-80 @ 30KHz 4Vpp

DC Resistance

(Ω Max)

(1-4), (3+2) short

1.25

(10-7) ,(8+9) short

1.4

Isolation Voltage

(Vrms)

1500

Insertion Loss

(dB Max)

@ 300 KHz

-0.5

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
