MH62TDG01.0000MHZ datasheet, PDF

MH62TDG01.0000MHZ: DescriptionXO, Clock, 1MHz Min, 50MHz Max, 1MHz Nom,; CategoryPassive components oscillator; File Size100KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MH62TDG01.0000MHZ Overview

XO, Clock, 1MHz Min, 50MHz Max, 1MHz Nom,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	50 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	METAL
Encapsulate equivalent code	GWDIP4/8,.6
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	40 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

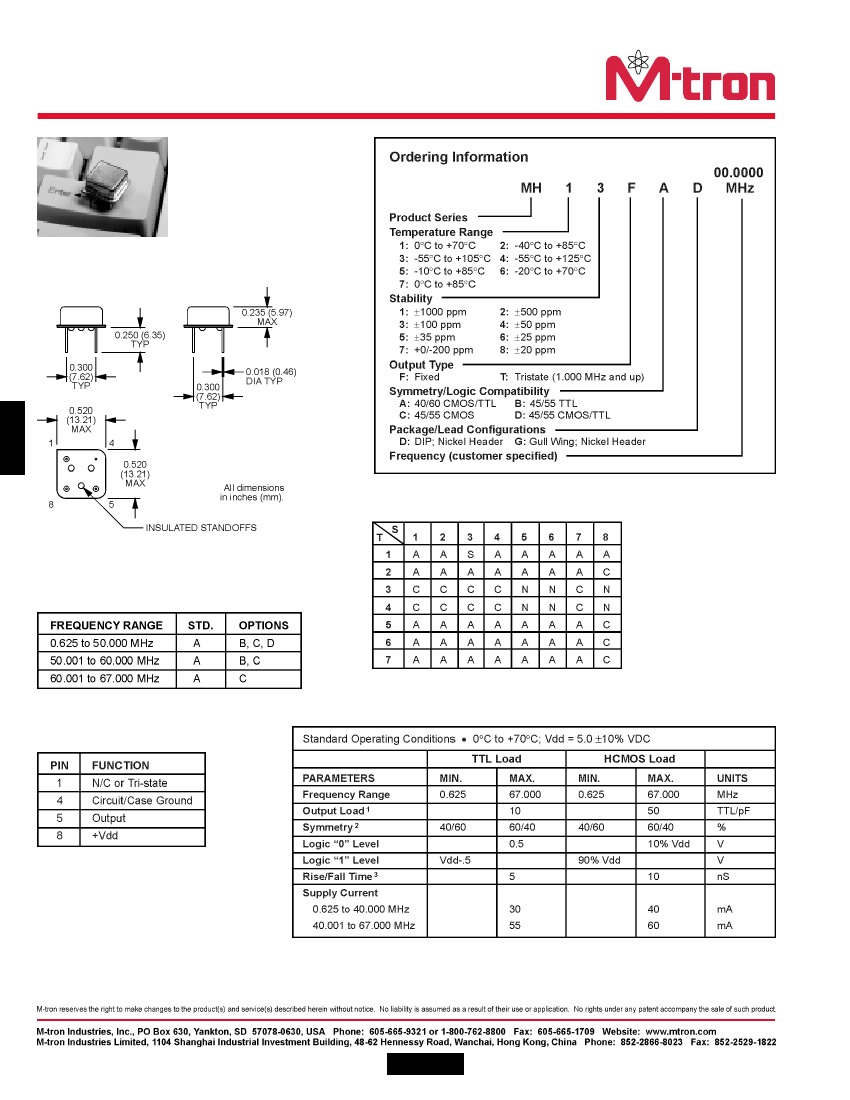

MH Series Half-Size HCMOS/TTL

Compatible Oscillators

Half-Size HCMOS/TTL Compatible Oscillators

Available Stabilities vs. Temperature

See page 135 for gull wing configuration.

Available Symmetry

A = Available

N = Not Available

S = Standard

C = Consult Factory

Electrical Specifications

Pin Connections

Tri-state Control Logic

Pin 1 high or floating: clock signal output

Pin 1 low: output disables to high impedance

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

See page 136 for suggested soldering conditions.
