BZY97-C3V9 thru BZY97-C200
Vishay Semiconductors
formerly General Semiconductor
Zener Diodes
DO-204AM
1.0 (25.4)
MIN.
0.110 (2.79)
0.050 (1.27)
DIA.
ded ge
ten Ran
Ex e
tag
ol
V
Features
V
Z
Range
3.9 to 200V
Power Dissipation
1.5W
0.205 (5.20)
0.125 (3.18)
• Silicon Planar Power Zener Diodes.
• For use in stablilizing and clipping circuits with
high power rating.
• The Zener voltages are graded according to the
international E 24 standard. Smaller voltage
tolerances are available upon request.
Mechanical Data
1.0 (25.4)
MIN.
0.036 (0.91)
0.025 (0.64)
DIA.
Case:
JEDEC DO-204AM molded plastic body
Weight:
approx. 0.34g
Packaging Codes/Options:
E2/4K per Ammo mag. (52mm tape), 20K/box
E3/5K per 13” reel (52mm tape), 10K/box
Dimensions in inches and (millimeters)
Maximum Ratings and Thermal Characteristics
Parameter
Zener Current (see Table “Characteristics”)
Power Dissipation at T
amb
= 60°C
Thermal Resistance Junction to Ambient Air
Junction Temperature
Storage Temperature Range
P
tot
R
ΘJA
T
j
T
S
Symbol
(T
A
= 25°C unless otherwise noted)
Value
1.5
(1)
60
(1)
150
–55 to +150
Unit
W
°C/W
°C
°C
Note:
(1) Valid provided that leads at a distance of 3/8” from case are kept at ambient temperature.
Document Number 88324
29-Apr-02
www.vishay.com
1
BZY97-C3V9 thru BZY97-C200
Vishay Semiconductors
formerly General Semiconductor
Electrical Characteristics
Zener
voltage
(1)
at
I
ZT
V
Z
(V)
min. max.
3.7 ... 4.1
4.0 ... 4.6
4.4 ... 5.0
4.8 ... 5.4
5.2 ... 6.0
5.8 ... 6.6
6.4 ... 7.2
7.0 ... 7.9
7.7 ... 8.7
8.5 ... 9.6
9.4 ... 10.6
10.4 … 11.6
11.4 … 12.7
12.4 … 14.1
13.8 … 15.8
15.3 … 17.1
16.8 … 19.1
18.8 … 21.2
20.8 … 23.3
22.8 … 25.6
25.1 … 28.9
28 … 32
31 … 35
34 … 38
37 … 41
40 … 46
44 … 50
48 … 54
52 … 60
58 … 66
64 … 72
70 … 79
77 … 88
85 … 96
94 … 106
104 … 116
114 … 127
124 … 141
138 … 156
153 … 171
168 … 191
188 … 212
Dynamic
resistance
at I
ZT
f = 1 kHz
max
r
zj
(Ω)
7
7
7
5
2
2
2
2
2
4
4
7
7
10
10
15
15
15
15
15
15
15
15
40
40
45
45
60
60
80
80
100
100
200
200
250
250
300
300
350
350
350
(T
J
= 25°C unless otherwise noted)
Type
BZY97 - C3V9
BZY97 - C4V3
BZY97 - C4V7
BZY97 - C5V1
BZY97 - C5V6
BZY97 - C6V2
BZY97 - C6V8
BZY97 - C7V5
BZY97 - C8V2
BZY97 - C9V1
BZY97 - C10
BZY97 – C11
BZY97 – C12
BZY97 – C13
BZY97 – C15
BZY97 – C16
BZY97 – C18
BZY97 – C20
BZY97 – C22
BZY97 – C24
BZY97 – C27
BZY97 – C30
BZY97 – C33
BZY97 – C36
BZY97 – C39
BZY97 – C43
BZY97 – C47
BZY97 – C51
BZY97 – C56
BZY97 – C62
BZY97 – C68
BZY97 – C75
BZY97 – C82
BZY97 – C91
BZY97 – C100
BZY97 – C110
BZY97 – C120
BZY97 – C130
BZY97 – C150
BZY97 – C160
BZY97 – C180
BZY97 – C200
Typical
Temp. coeff.
of Zener volt.
at
I
ZT
α
VZ
(10
–4
/ K)
-0.025
-0.02
-0.02
-0.01
+0.02
+0.05
+0.35
+0.35
+0.055
+0.055
+0.07
+5 … +10
+5 … +10
+5 … +10
+5 … +10
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+6 … +11
+7 … +12
+7 … +12
+7 … +12
+7 … +12
+7 … +12
+7 … +12
+7 … +12
+7 … +12
+8 … +13
+8 … +13
+8 … +13
+8 … +13
+8 … +13
+8 … +13
+8 … +13
+8 … +13
+8 … +13
Test
current
I
ZT
(mA)
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
Leakage
current
I
R
(µA)
15
10
5
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reverse
voltage
V
R
(V)
1
1
1
1
1
1
1
2
3.5
3.5
5
5
7
7
10
10
10
10
12
12
14
14
17
17
20
20
24
24
28
28
34
34
41
41
50
50
60
60
75
75
90
90
Admissible
Zener
current at
T
amb
= 60°C
I
Z
(mA)
366
327
300
278
250
227
208
190
175
156
142
129
118
106
96
88
79
71
64
59
52
47
43
40
37
33
30
28
25
23
21
19
17
16
14
13
12
11
10
9
8
7
I
ZSM
tp = 10 ms
(A)
3.7
3.4
3.1
2.8
2.6
2.3
2.1
1.9
1.8
1.6
1.4
1.3
1.2
1.1
1.0
0.90
0.81
0.73
0.66
0.60
0.53
0.48
0.44
0.40
0.38
0.33
0.31
0.28
0.26
0.23
0.21
0.19
0.18
0.16
0.15
0.13
0.12
0.11
0.10
0.09
0.08
0.07
Notes:
(1) Tested with pulses t
p
= 5 ms
www.vishay.com
2
Document Number 88324
29-Apr-02
BZY97-C3V9 thru BZY97-C200
Vishay Semiconductors
formerly General Semiconductor

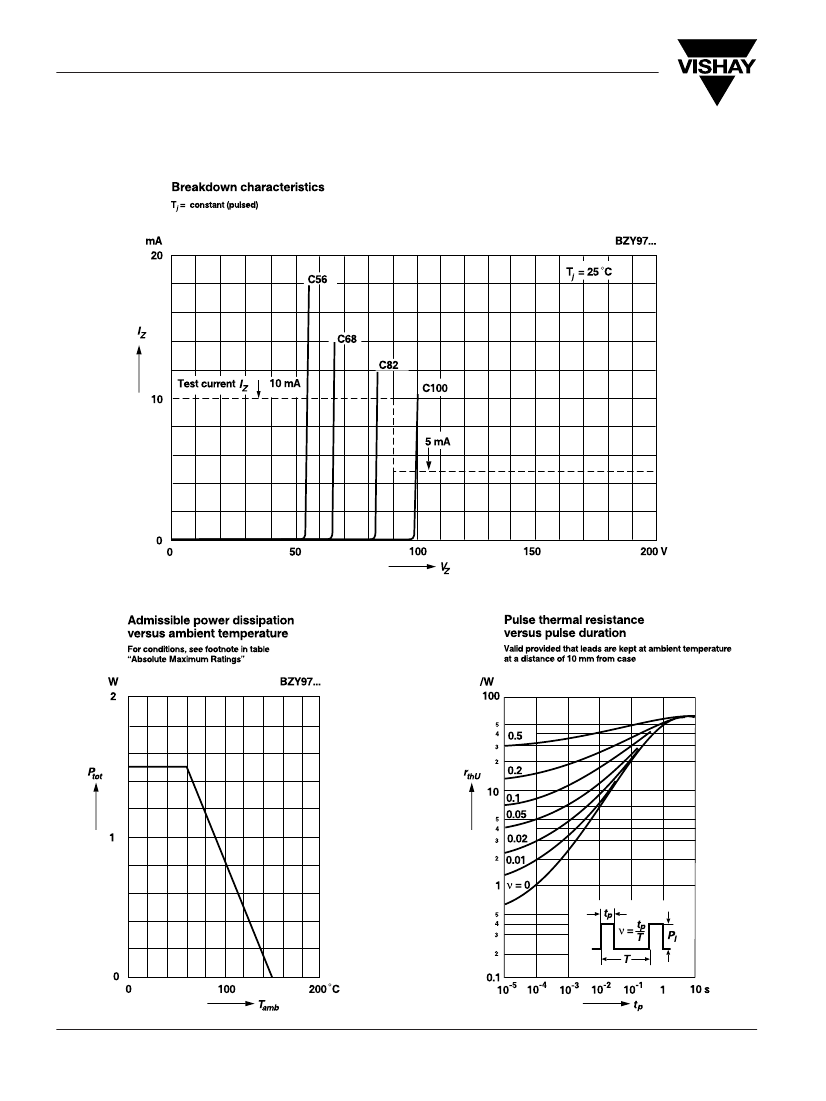

Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)
Document Number 88324
29-Apr-02
www.vishay.com
3
BZY97-C3V9 thru BZY97-C200
Vishay Semiconductors
formerly General Semiconductor

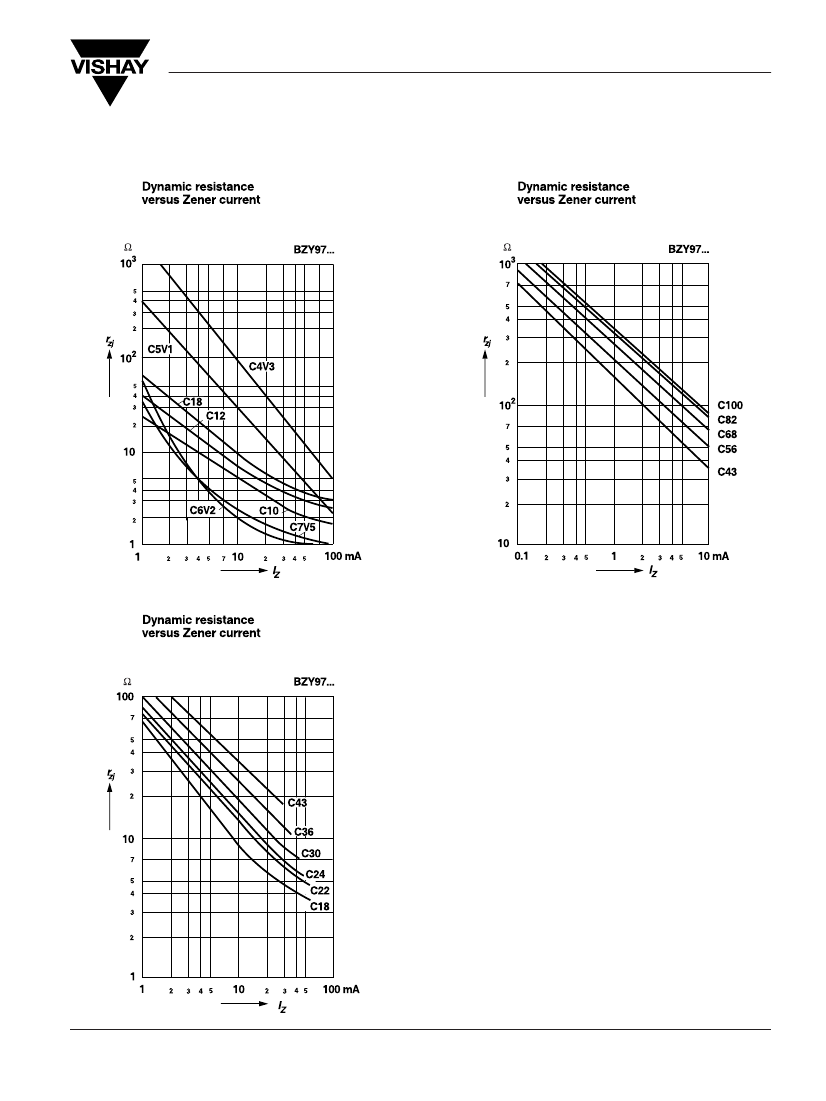

Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)
°C
www.vishay.com
4
Document Number 88324
29-Apr-02
BZY97-C3V9 thru BZY97-C200
Vishay Semiconductors
formerly General Semiconductor

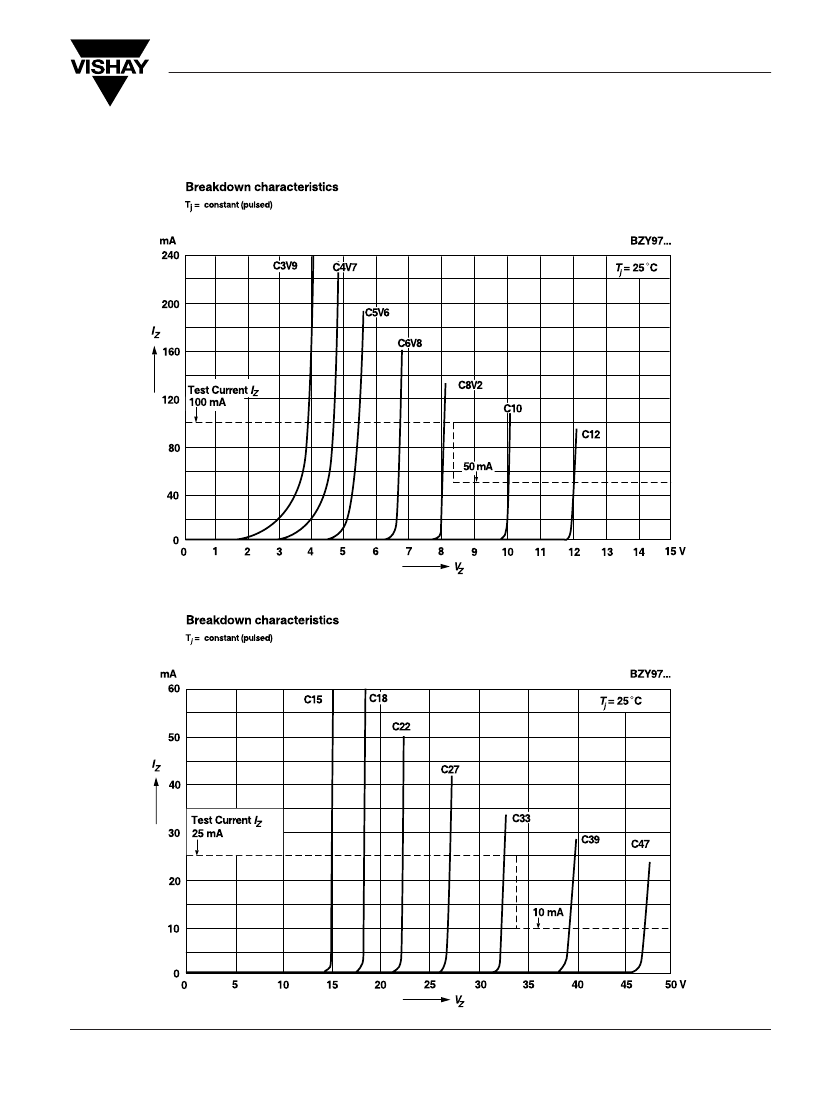

Ratings and
