B125C800G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B125C800G

B125C800G: DescriptionBridge Rectifier Diode, 1 Phase, 0.9A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size78KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

B125C800G Overview

Bridge Rectifier Diode, 1 Phase, 0.9A, 600V V(RRM), Silicon,

B125C800G Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-PBCY-W4
Maximum non-repetitive peak forward current	45 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	0.9 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

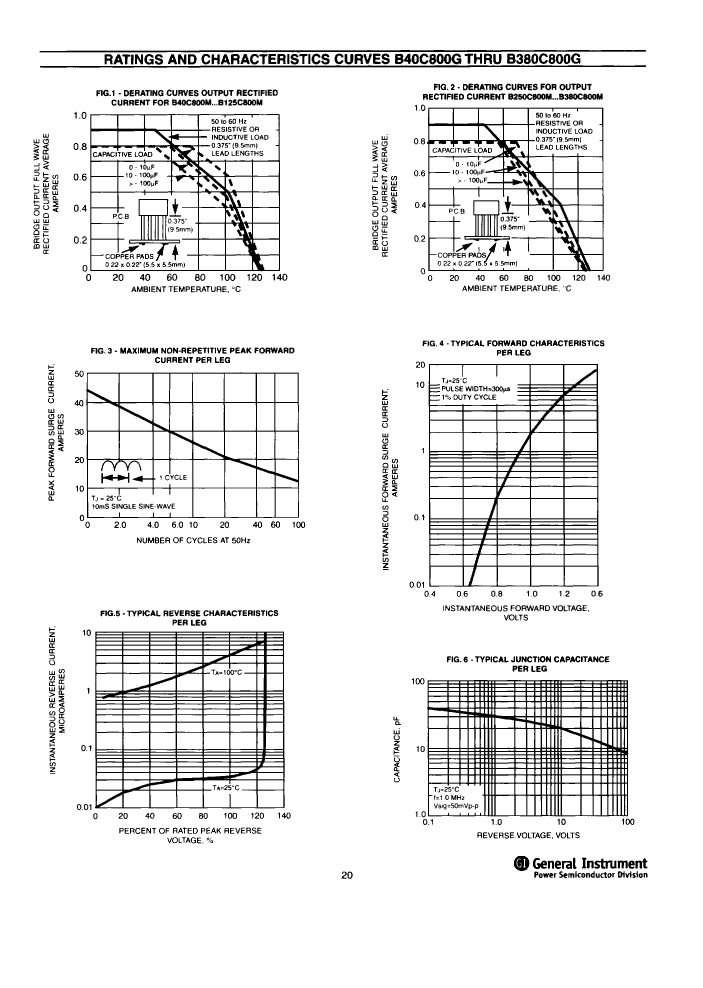

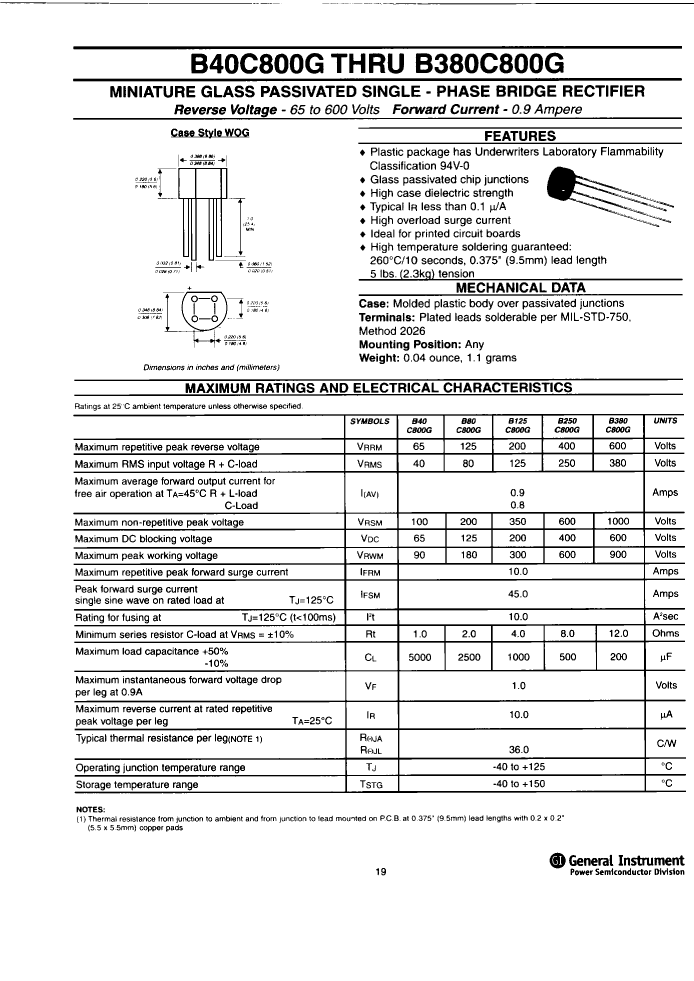

Preview

Download Datasheet

View All

B125C800G Related Products

	B125C800G	B250C800G	B80C800G	B40C800G	B380C800G
Description	Bridge Rectifier Diode, 1 Phase, 0.9A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 125V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 65V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 200V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4
Maximum non-repetitive peak forward current	45 A	45 A	45 A	45 A	45 A
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	400 V	125 V	65 V	200 V
Maximum reverse current	0.00001 µA	0.00001 µA	0.00001 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maker	General Instrument Corp	-	General Instrument Corp	General Instrument Corp	General Instrument Corp
