DCMU-13W6P-OL4-A191-K87

Description
D Subminiature Connector, 13 Contact(s), Male, Solder Terminal,
CategoryThe connector    The connector
File Size30KB,1 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Download Datasheet Parametric View All

DCMU-13W6P-OL4-A191-K87 Overview

D Subminiature Connector, 13 Contact(s), Male, Solder Terminal,

DCMU-13W6P-OL4-A191-K87 Parametric

Parameter NameAttribute value
MakerITT
Reach Compliance Codecompliant
Other featuresEMI/RFI SHIELDED, PANEL MOUNT
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
MIL complianceNO
Manufacturer's serial numberDCMU
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size4/C
Termination typeSOLDER
Total number of contacts13
UL Flammability Code94V-0
Base Number Matches1

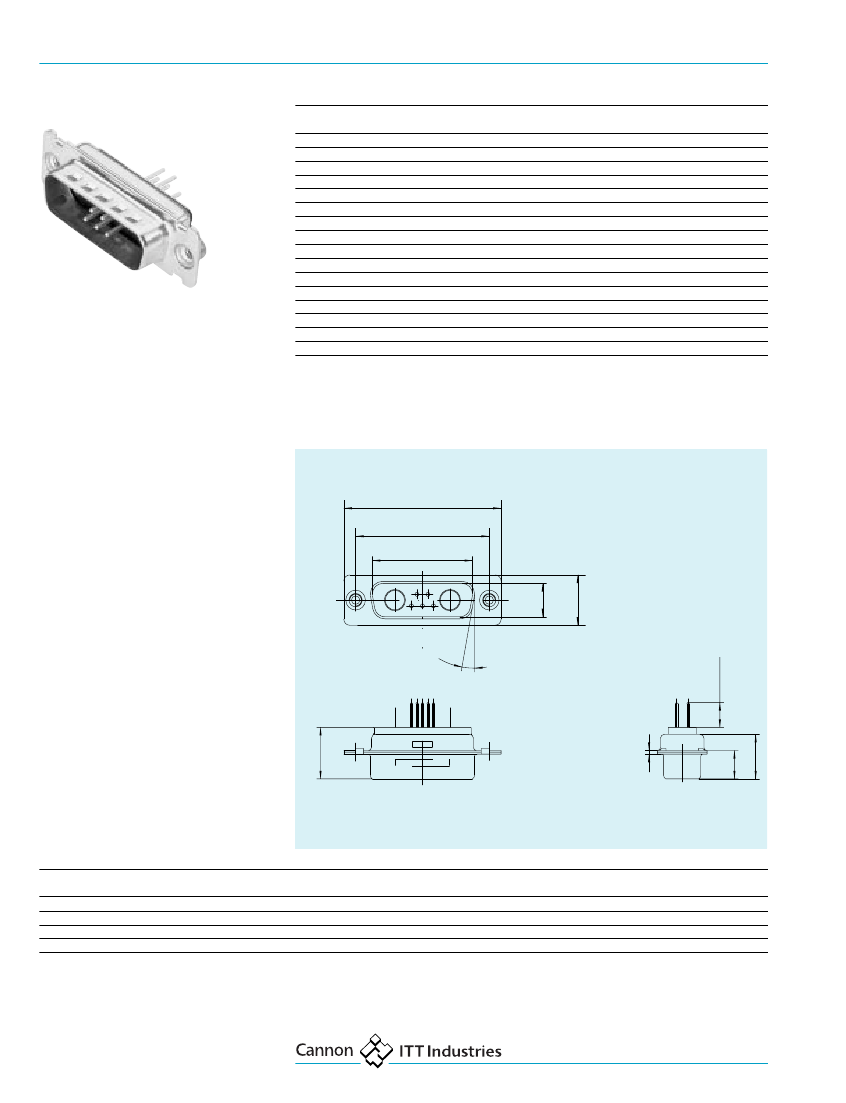

D Subminiature
Pin
Shell
size
Layout
P/N with through hole
3,05 mm
Combo D
®
/European Version
Straight European solder pins, sizes DE – DC, with empty size 8 cavities
P/N with M3 clinch nut
P/N with M3 standoff post P/N with M3 standoff
and pushfit
with pushfit
q
q
q
q
For contact cavity arrangements, see page 52.
For pcb hole pattern, see page 60 – 63.
For mounting methods, see page 86 – 87.
For panel cut-outs, see our D Subminiature
catalogue.
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
DEM-5W1P-OL4-A191-K87
DAM-7W2P-OL4-A191-K87
DAM-11W1P-OL4-A191-K87
DAM-3W3P-K87
DAM-3WK3P-K87
DBM-5W5P-K87
DBM-9W4P-OL4-A191-K87
DBM-13W3P-OL4-A191-K87
DBM-17W2P-OL4-A191-K87
DBM-21W1P-OL4-A191-K87
DCM-8W8P-K87
DCM-13W6P-OL4-A191-K87
DCM-17W5P-OL4-A191-K87
DCM-21WA4P-OL4-A191-K87
DCM-25W3P-OL4-A191-K87
DCM-27W2P-OL4-A191-K87
DEMX-5W1P-OL4-A191-K87
DAMX-7W2P-OL4-A191-K87
DAMX-11W1P-OL4-A191-K87
DAMX-3W3P-K87
DAMX-3WK3P-K87
DBMX-5W5P-K87
DBMX-9W4P-OL4-A191-K87
DBMX-13W3P-OL4-A191-K87
DBMX-17W2P-OL4-A191-K87
DBMX-21W1P-OL4-A191-K87
DCMX-8W8P-K87
DCMX-13W6P-OL4-A191-K87
DCMX-17W5P-OL4-A191-K87
DCMX-21WA4P-OL4-A191-K87
DCMX-25W3P-OL4-A191-K87
DCMX-27W2P-OL4-A191-K87
DEMU-5W1P-OL4-A191-K87
DAMU-7W2P-OL4-A191-K87
DAMU-11W1P-OL4-A191-K87
DAMU-3W3P-K87
DAMU-3WK3P-K87
DBMU-5W5P-K87
DBMU-9W4P-OL4-A191-K87
DBMU-13W3P-OL4-A191-K87
DBMU-17W2P-OL4-A191-K87
DBMU-21W1P-OL4-A191-K87
DCMU-8W8P-K87
DCMU-13W6P-OL4-A191-K87
DCMU-17W5P-OL4-A191-K87
DCMU-21WA4P-OL4-A191-K87
DCMU-25W3P-OL4-A191-K87
DCMU-27W2P-OL4-A191-K87
DEMQ-5W1P-OL4-A191-K87
DAMQ-7W2P-OL4-A191-K87
DAMQ-11W1P-OL4-A191-K87
DAMQ-3W3P-K87
DAMQ-3WK3P-K87
DBMQ-5W5P-K87
DBMQ-9W4P-OL4-A191-K87
DBMQ-13W3P-OL4-A191-K87
DBMQ-17W2P-OL4-A191-K87
DBMQ-21W1P-OL4-A191-K87
DCMQ-8W8P-K87
DCMQ-13W6P-OL4-A191-K87
DCMQ-17W5P-OL4-A191-K87
DCMQ-21WA4P-OL4-A191-K87
DCMQ-25W3P-OL4-A191-K87
DCMQ-27W2P-OL4-A191-K87
For performance class 1 replace A191 with A190.
For performance class 3 delete A191.
For clinch nut 4-40 UNC thread replace X with E.
For standoff, 4-40 UNC thread post and pushfit replace U
with N.
For 4-40 UNC thread standoff with pushfit replace Q
with Z.
For captive nut 4-40 UNC replace X with E.
3W3/3WK3 (keyed) 5W5 and 8W8 without signal
contacts.
A
C
B
A1
1
2
A2
D
7W25
3
ITT
4
5
CANNON
10
°
6,15
±0,3
12,7 max.
E
Dimensions
Shell
size
A
±
0,38
30,8
39,15
53,05
69,3
B
±
0,13
C
±
0,13
D
±
0,13
E
±
0,13
F
±
0,25
L
+
0,2
L
W
±
0,4
DE
DA
DB
DC
16,9
25,25
38,95
55,4
25
33,3
47,05
63,5
8,35
8,35
8,35
8,35
12,55
12,55
12,55
12,55
10,7
10,7
10,8
10,8
0,8
0,8
0,9
0,9
6,7
6,7
6,8
6,8
34
Dimensions are mm
Subject to change
