Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

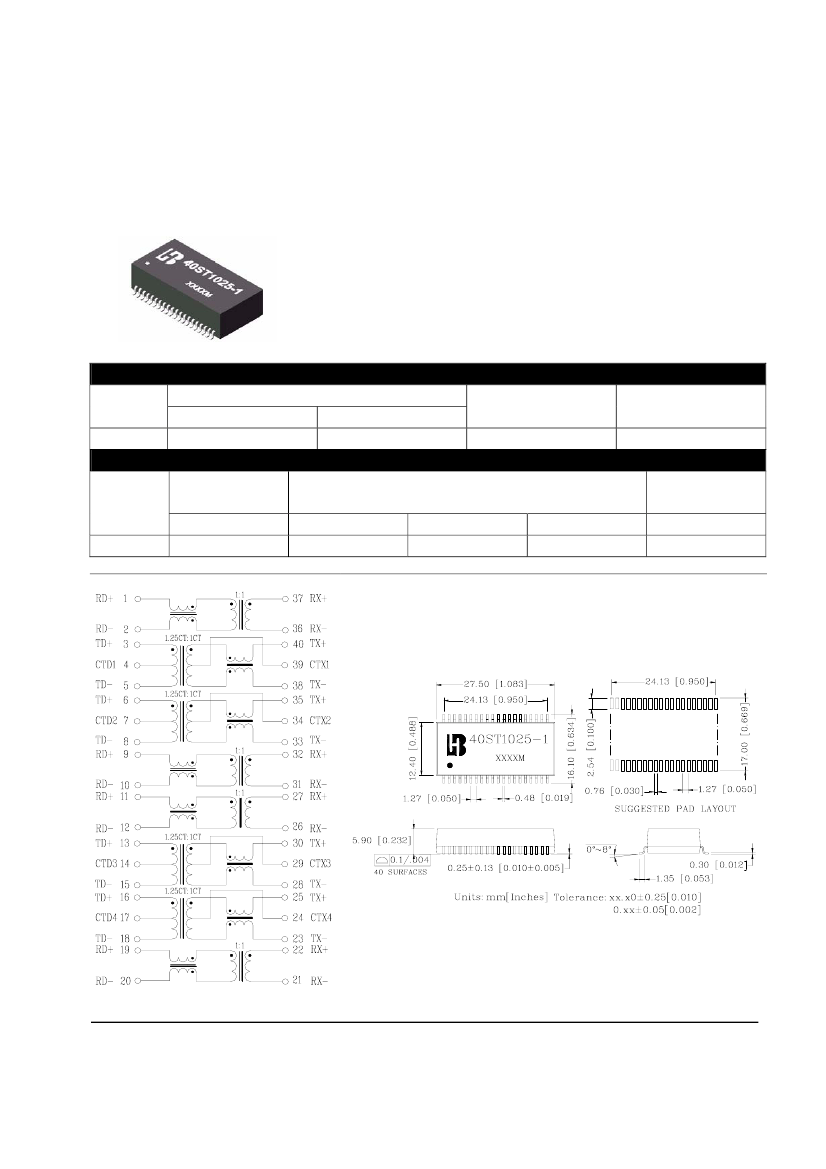

40 PIN SMD QUAD 10 BASE-T/100 BASE-TX TRANSFORMER

P/N: 40ST1025-1 DATA SHEET

Feature

Page : 1/1

Designed to meet IEEE 802.3u requirement.

Primary inductance 350uH Min with 8mA DC Bias

Designed to meet IR 235℃ peak requirement

Operating temperature range : 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

40ST1025-1

1.25CT:1CT

Turns Ratio

1:1

OCL(μH Min)

with 8mA DC Bias

350

HI-POT

(Vrms )

1500

Continue

Part

Number

40ST1025-1

Insertion Loss

(dB Max)

0.3- 100MHz

-1.0

0.3-30 MHz

-16

Return Loss

(dB Min)

30-60 MHz

-12

60-80 MHz

-10

Cross Talk

(dB Min)

0.3 - 100MHz

-38

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A1(02/06)
