40ST1041IX_S: Description40PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER; File Size206KB，1 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

40ST1041IX_S Overview

40PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

Preview

Download Datasheet

View All

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

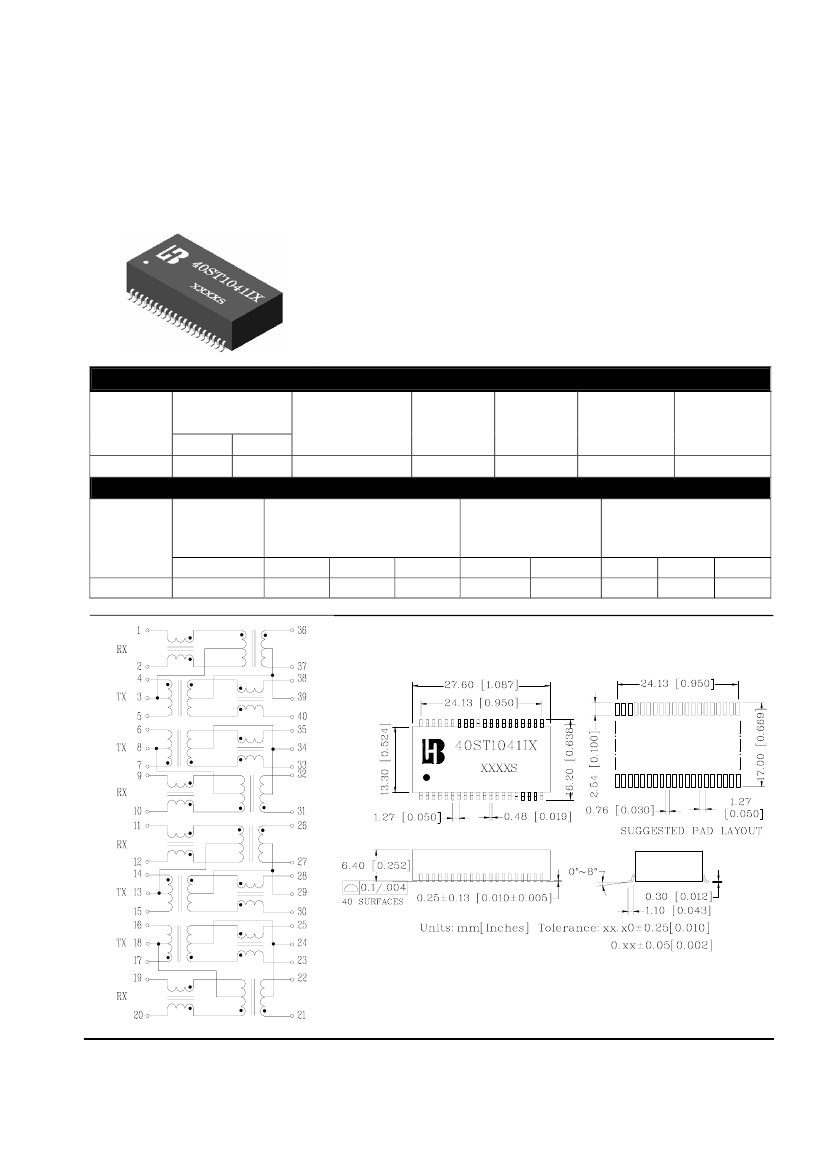

40PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

P/N: 40ST1041IX DATA SHEET

Feature

IEEE 802.3 Ethernet compatible, 100 Base-TX.

Surface mountable.

Design for multiport repeater and Ethernet switching Hub

application.

Customer designs available for specific application.

Operating temperature range : 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

40ST1041IX

Turns Ratio

(±5%)

1CT:1CT

OCL (uH Min)

@ 100KHz/0.1Vrms

with 8mA/DC Bias

350

L.L

(uH Max)

0.45

W/W

(pF Max)

Isolation Voltage

(Vrms)

1500

Rise Time

(nS TYP)

2.5

Page : 1/1

Continue

Part

Number

40ST1041IX

Insertion Loss

(dB Max)

0.3-100 MHz

-1.15

Return Loss

(dB Min)

0.3-30MHz 30-60MHz 60-80MHz

-16

-12

-10

Cross talk

(dB TYP)

0.3-60MHz 60-100MHz

-45

-35

60MHz

-37

DCMR

(dB Min)

100MHz

-28

200MHz

-25

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A2(02/07)
