BAS40-07E6433 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-07E6433

BAS40-07E6433: DescriptionRectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-143, 4 PIN; CategoryDiscrete semiconductor diode; File Size376KB，15 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS40-07E6433 Overview

Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-143, 4 PIN

BAS40-07E6433 Parametric

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	SOT-143
package instruction	SOT-143, 4 PIN
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.38 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	1 µA
Reverse test voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

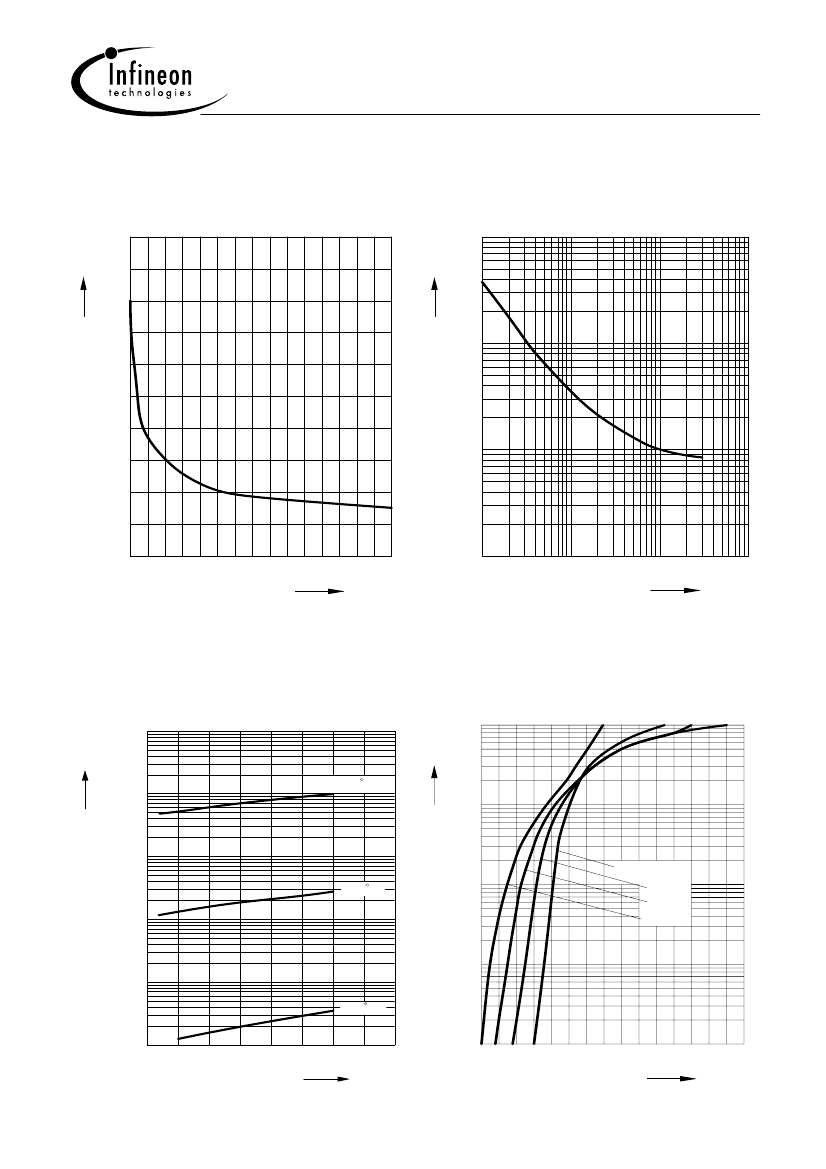

Preview

Download Datasheet

View All

BAS40.../BAS140W

Silicon Schottky Diode

•

General-purpose diode for high-speed switching

•

Circuit protection

•

Voltage clamping

•

High-level detecting and mixing

BAS140W

BAS40-02L

BAS40

BAS40-04

BAS40-05

BAS40-05W

BAS40-06

BAS40-06W

BAS40-07

BAS40-07W

ESD

lectro

tatic

ischarge sensitive device, observe handling precaution!

Type

BAS140W

BAS40

BAS40-02L

BAS40-04

BAS40-05

BAS40-05W

BAS40-06

BAS40-06W

BAS40-07

BAS40-07W

Package

SOD323

SOT23

TSLP-2-1

SOT23

SOT323

SOT23

SOT323

SOT143

SOT343

Configuration

single

single, leadless

series

common cathode

common anode

parallel pair

(nH)

1.8

0.4

1.8

1.4

1.8

1.4

1.6

Marking

white 4

43s

44s

45s

46s

47s

Jan-11-2005

BAS40-07E6433 Related Products

	BAS40-07E6433	BAS140WE6433	BAS40-07WE6433	BAS4007WE6327HTSA1	BAS40-05WE6433	BAS4005WE6327HTSA1	BAS40-06WE6433
Description	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, Schottky, 1 Element, 0.12A, 40V V(RRM), Silicon, SOD-323, 2 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-343, 4 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-343, 4 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-323, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-323, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-323, 3 PIN
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
package instruction	SOT-143, 4 PIN	SOD-323, 2 PIN	SOT-343, 4 PIN	R-PDSO-G4	R-PDSO-G3	SOT-323, 3 PIN	SOT-323, 3 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G4	R-PDSO-G2	R-PDSO-G4	R-PDSO-G4	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	2	1	2	2	2	2	2
Number of terminals	4	2	4	4	3	3	3
Maximum output current	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Parts packaging code	SOT-143	SOD	SOT	-	SC-70	-	SC-70
Contacts	4	2	4	-	3	-	3
Maximum forward voltage (VF)	0.38 V	0.38 V	0.38 V	-	0.38 V	-	0.38 V
JESD-609 code	e3	e3	e3	-	e3	-	e3
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	-	150 °C
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	-	40 V	-	40 V
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	-	MATTE TIN	-	MATTE TIN
Base Number Matches	1	1	1	1	-	-	-
