SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU1T041R
Feature
Operating temperature range: 0°C to +70°C.
Storage temperature range: -25°C to +125°C
Page: 1/2
Electrical Specifications @ 25°C
Part
Number
LU1T041R
Turns Ratio
(±3%) TX/ RX
1CT:1CT
Return Loss
(dB Min)
-16
-14
-13.5
-13
-10
-40
OCL (uH Min)
@ 100 KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
28
L.L
(uH Max)
0.5
Cross talk
(dB Min)
-35
-30
-30
Rise Time
(10-90%)
nS Max
2.5
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
CMR
(dB Min)
60-100MHz 1-30MHz 30-60MHz 60-125MHz
-25
-20
HI-POT
(Vrms)
1500
Continue
Part
Number
LU1T041R
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz

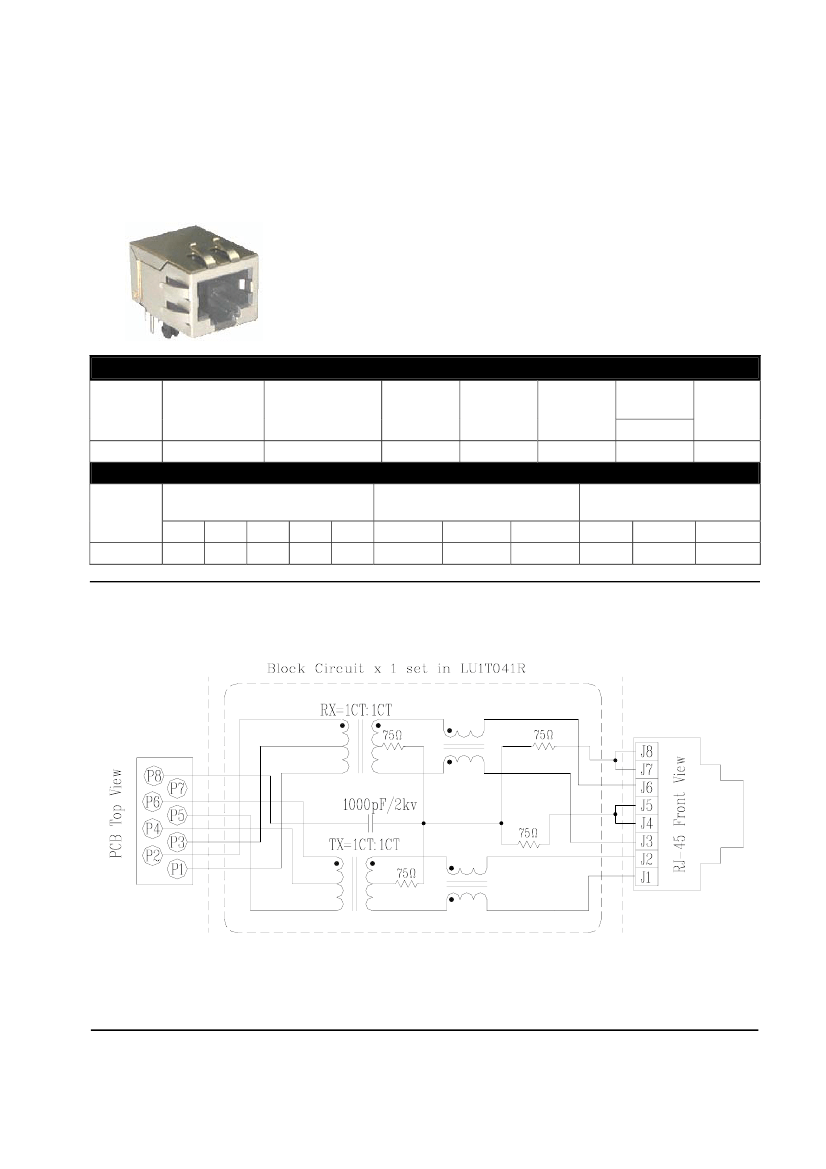

Schematic
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
A0(02/12)
Bothhand USA.
e-mail: sales@bothhandusa.com http://www.bothhandusa.com
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU1T041R

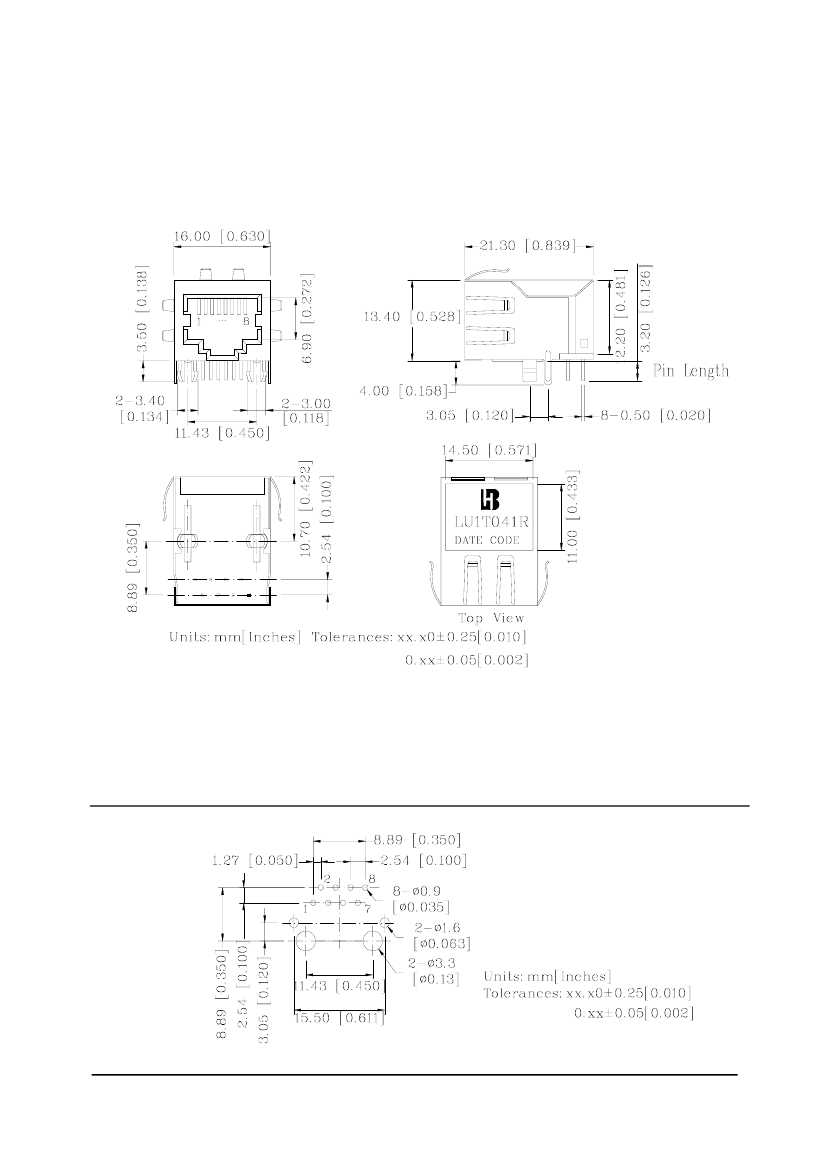

Mechanical
Page: 2/2
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: PBT 15% Glass Filled(UL 94V-0), Black Housing
: Brass C2680-H, 20u Nickel Plated, t=0.25mm
: 0.45mm Dia. Phosphor bronze with 6u gold plated
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 300 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
A0(02/12)
