40ST1041N

Description
40 PIN SMD ETHERNET 10/100 BASE-TX HIGH SPEED LAN MAGNETICS
File Size90KB,1 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet View All

40ST1041N Overview

40 PIN SMD ETHERNET 10/100 BASE-TX HIGH SPEED LAN MAGNETICS

Bothhandusa.com
APPLY TO BCM 53178/5317/5228

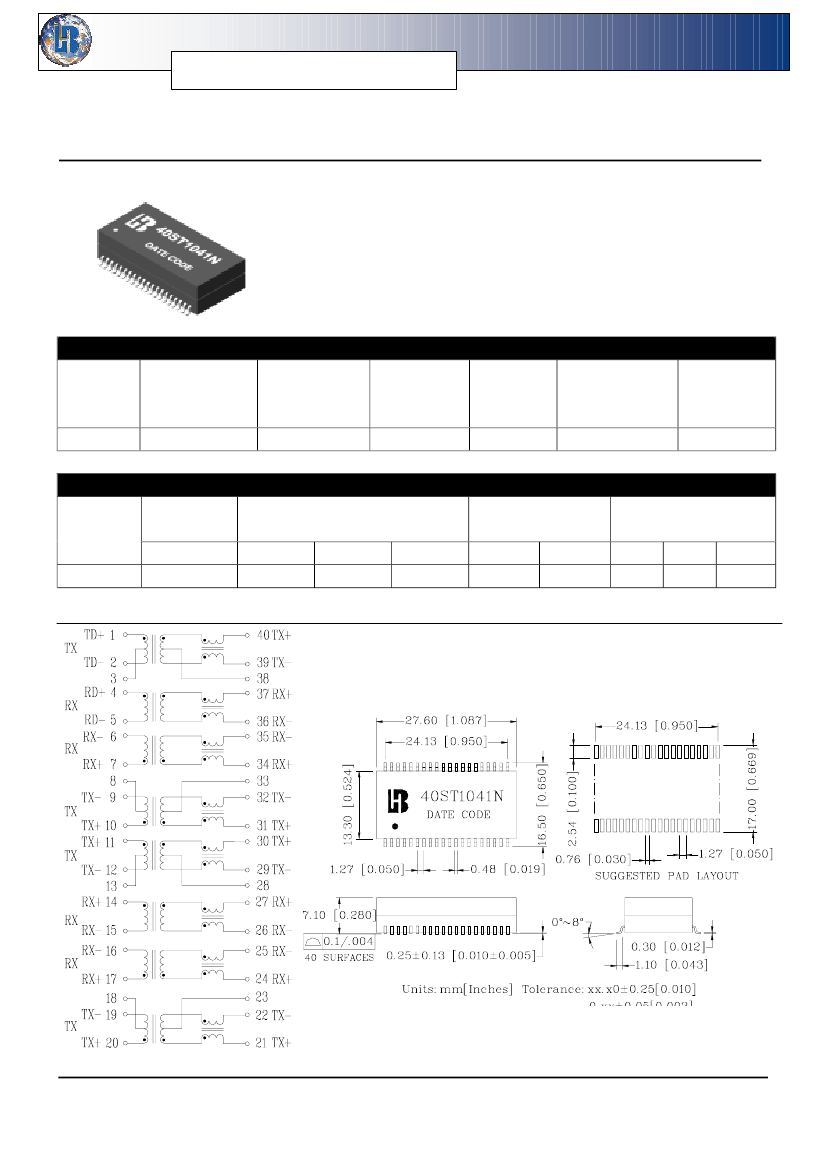

P/N: 40ST1041N DATA SHEET
Feature
IEEE 802.3 Ethernet compatible.
100 BASE-TX Surface mountable.
Design for multi-port repeater and Ethernet switching Hub
application.
!
Customer designs available for specific application.
!
Operating temperature range : 0℃ to +70℃.
!
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
40ST1041N
Turns Ratio
(±5%) TX/ RX
1CT:1CT
OCL(μH Min)
@100KHz/0.1Vrms
8mA DC/Bias
350
L.L
(μH Max)
0.4
C
W/W
(pF Max)
28
HI-POT
(Vrms)
1500
Rise Time
(nS Typ)
2.5
!
!
!
Continue
Part
Number
40ST1041N
Insertion Loss
(dB Max)
0.3–100MHz
-1.15
0.3-30MHz
-16
Return Loss
(dB Min)
30-60MHz
-12
60-80MHz
-10
Cross talk
(dB Min)
DCMR
(dB Min)
0.3-60MHz 60-100MHz 60MHz 100MHz 200MHz
-40
-35
-37
-28
-25
Schematic
Mechanical
