50PT1150AX

Description
50 PIN DIP ETHERNET 10/100 BASE-TX HIGH SPEED LAN MAGNETICS
File Size89KB,1 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet View All

50PT1150AX Overview

50 PIN DIP ETHERNET 10/100 BASE-TX HIGH SPEED LAN MAGNETICS

Bothhandusa.com

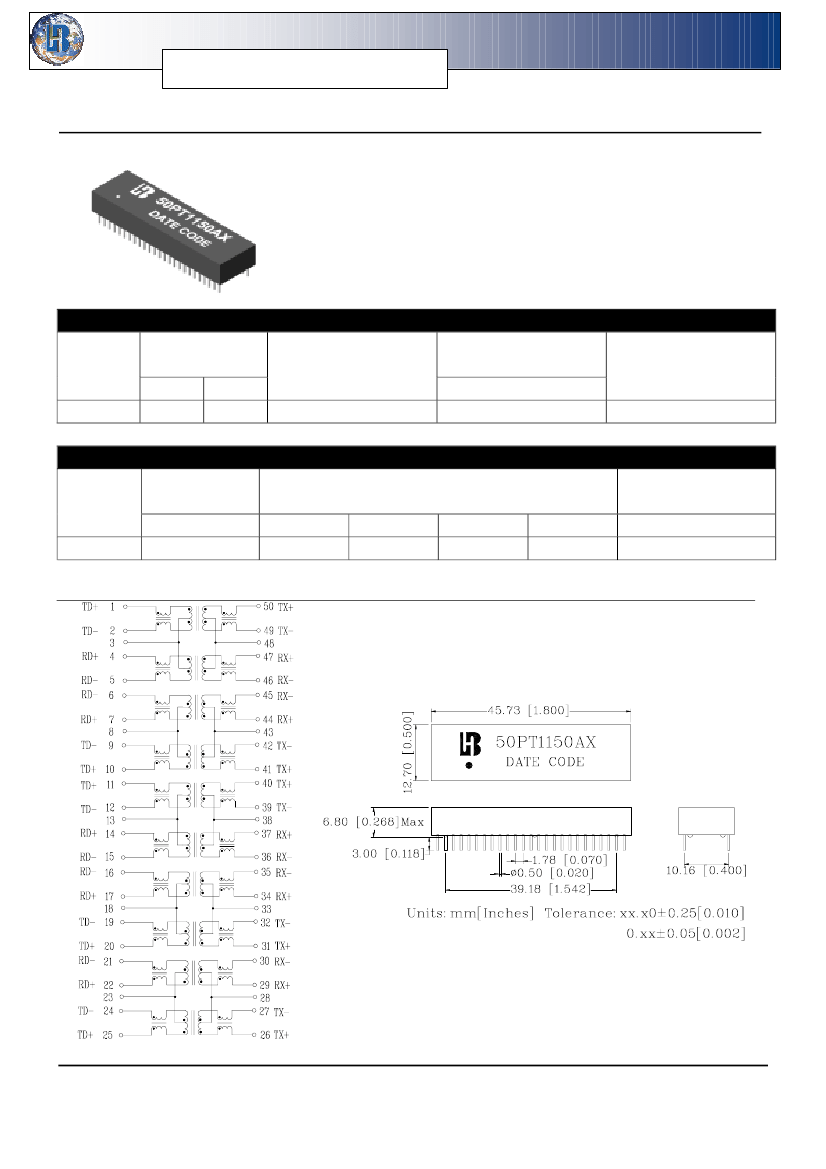

P/N: 50PT1150AX DATA SHEET
Feature
!
!
!
!
Compliant with IEEE 802.3 E and ANSI X3.263 standards
including 350uH OCL with 8mA Bias.
Symmetrical TX and RX channels for Auto MDI/MDIX
capability.
Operating temperature range : 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25°C
Part
Number
TX
50PT1150AX 1CT:1CT
Turns Ratio
(±5%)
RX
1CT:1CT
OCL(uH Min)
@100KHz/0.1V
with 8mA DC Bias
350
Cross talk
(dB Min)
0.3-100MHz
-35
1500
HI-POT
(Vrms)
Continue
Part
Number
50PT1150AX
Insertion Loss
(dB Max)
0.1–100MHz
-1.0
2-3MHz
-18
40MHz
-14.4
Return Loss
(dB Min)
50MHz
-13.1
60-80MHz
-12
DCMR
(dB Min)
0.3-100MHz
-30
Schematic
Mechanical
