ADS-A3A3-BF-18: DescriptionRF Connector Adapter, SMA-SMA, Plug-plug; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

ADS-A3A3-BF-18 Overview

RF Connector Adapter, SMA-SMA, Plug-plug

ADS-A3A3-BF-18 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Adapter type	SMA-SMA
Other features	ROHS COMPLIANT, PANEL MOUNT
Body/casing type	PLUG-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	AU ON NI
Contact material	BRASS
Contact style	COAX
insulator material	TEFLON
Manufacturer's serial number	AD
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
reliability	COMMERCIAL
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

ADS-A3A3-BF-18

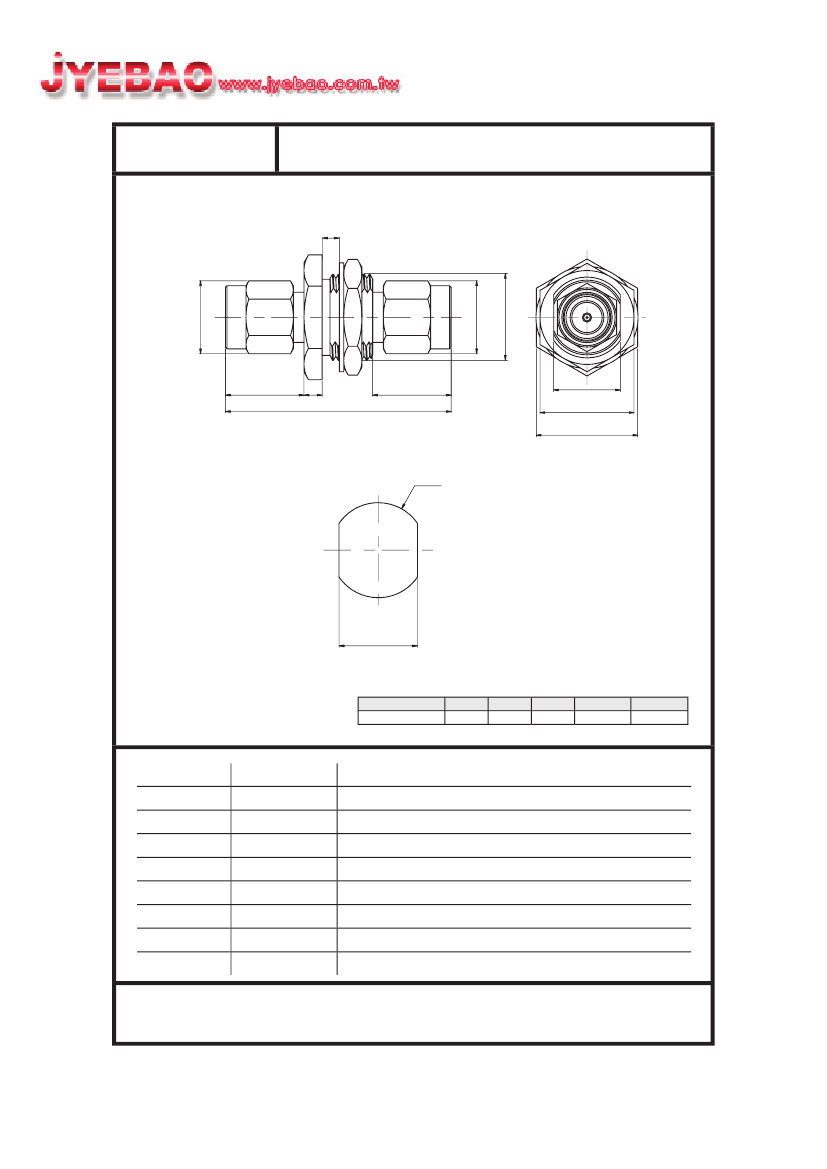

Stainless SMA Plug To SMA Plug For Bulkhead Up To 18 GHz

3.5 MAX

(.138 MAX)

7/16-28UNEF

8 HEX

(.315 HEX)

8 HEX

(.315 HEX)

9.95

(.392)

2.3

(.091)

28.6

(1.126)

9.95

(.392)

9

(.354)

12.7 HEX

(.500 HEX)

13.7 HEX

(.539 HEX)

MOUNTING HOLE:

ø11.5

(ø.453)

9.5

(.374)

Typical VSWR

NOTE: EPOXY CAPTIVATED

Part Number

1~4 GHz 5~9 GHz 10 GHz 11~14 GHz 15~18 GHz

ADS-A3A3-BF-18

1.05

1.06

1.10

1.11

1.20

Parts

Washer

Nut Hex

Renber Ring

Gasket

Contact Pin

Insulator

Body

Coupling Nut

Material

Stainless Steel

Beryllium Copper

Silicon

Brass

Teﬂon

Stainless Steel

Plating (Micro-inch)

Passivated

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Gold 20 Over Nickel 50 Over Copper 50

Passivated

Weight: 11.8 g

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.
