LU1S000-43LF Overview

SINGLE RJ45 CONNECTOR MODULE WITH LEDS

Bothhandusa.com

“LAN-MATE” SERIES

SINGLE RJ45 CONNECTOR MODULE WITH LEDS

P/N: LU1S000-43 LF

Page : 1/2

Feature

l

Size same as RJ-45 connector to save PCB board space.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +85℃.

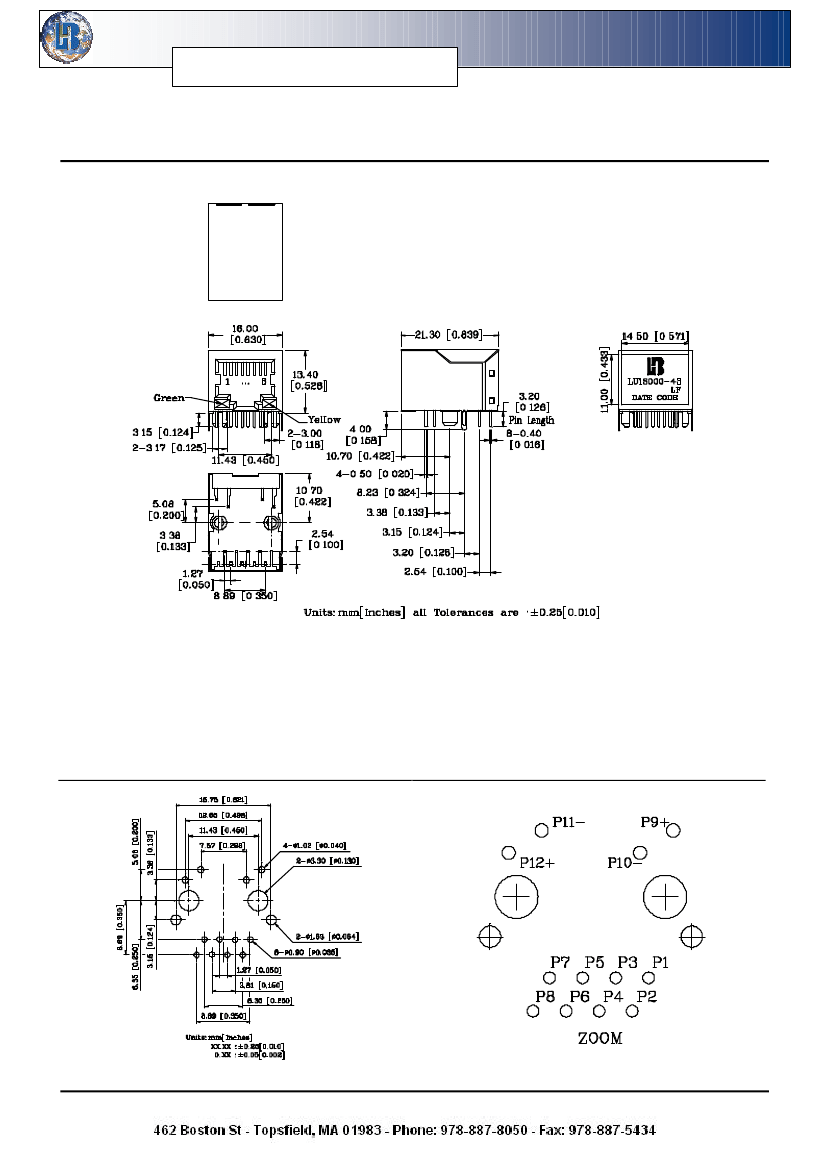

Recommended panel

Part Number Standard LED Forward*V(Max)

3

YELLOW

2.6V

4

GREEN

2.6V

*With a forward current 20mA

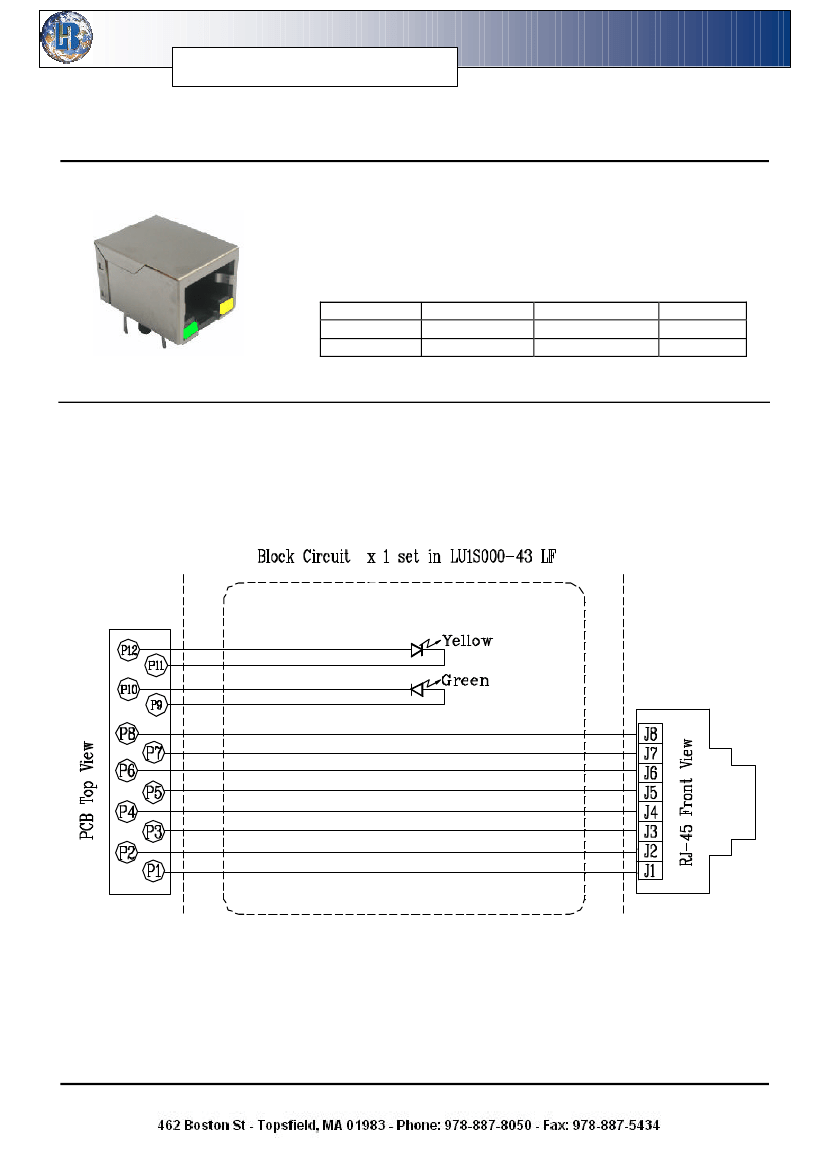

Schematic

(TYP)

2.1V

2.2V

)
