LU1S041B: DescriptionSINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS; File Size451KB，5 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

LU1S041B Overview

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

Preview

Download Datasheet

View All

Bothhandusa.com

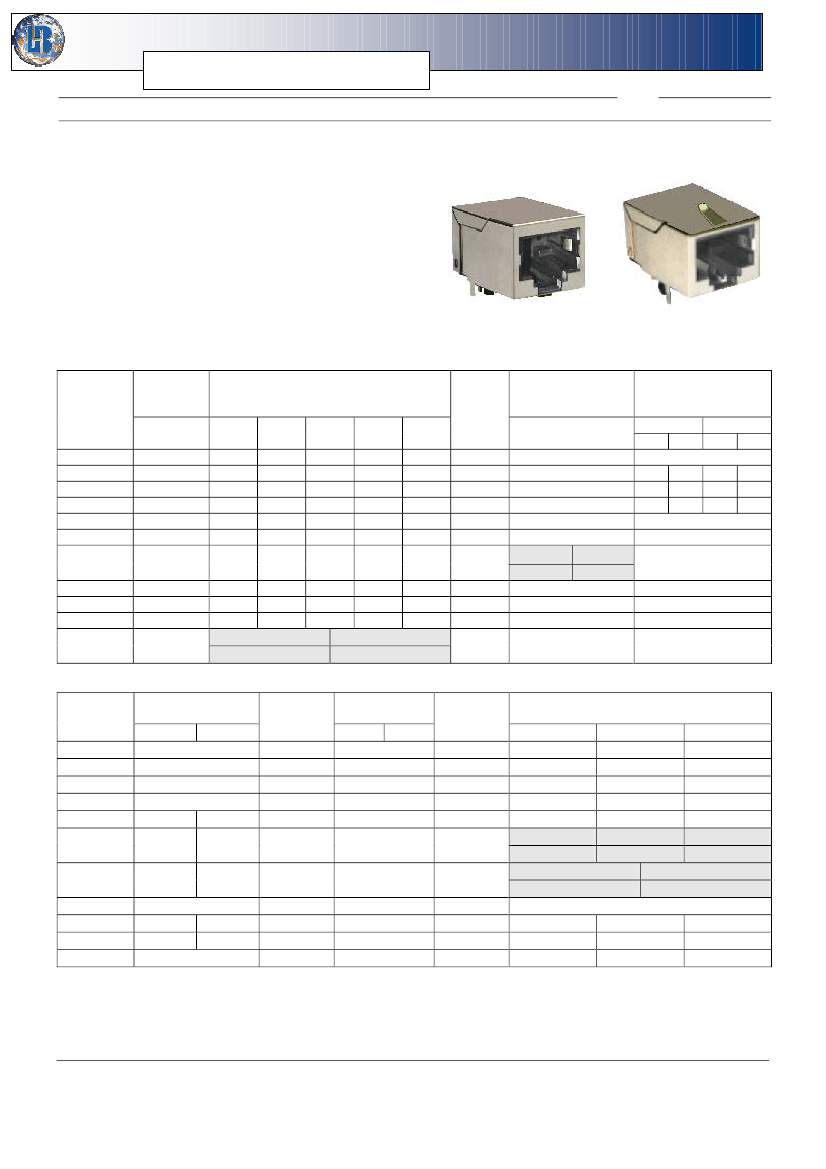

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED

10/100 BASE-TX MAGNETICS

RJ-45 connector integrated with X’FMR/impedance.

resistor/high voltage capacitor.

Size same as RJ-45 connector to save PCB board space.

Reduce EMI radiation, improve EMI performance.

Design for 100 BASE transmission over UTP-5 cable.

Operating temperature range

: 0℃to +70℃

Storage temperature range

: -40℃to +125℃

Electrical specifications @ 25℃

OCL(100KHz, 0.1Vrms with 8mA/DC Bias) : 350 uH Min.

Part

Number

LU1S041

LU1S041A

LU1S041B

LU1S041C

LU1S516

LU1S516A

LU1S516B

LU1S516E

LU1S516G

LU1S516-S

LU1SJ11

Insertion Loss

(dB Max)

LU1SXXX

Return Loss

(dB Min)

LU1SJ11

Differential to Common

CMRR

Mode Rejection

Rise Time

(dB Min)

(10-90%)

nS Typ

0.3-60MHz 60-100MHz

0.3-10 MHz 30MHz 40MHz 50MHz 60MHz 80MHz

0.3-100MHz

TX RX TX RX

-1.15

-16

-14

-13.5

-13

-10

2.5

-30

-1.15

-16

-14

-13.5

-13

-10

-45 -40 -40 -35

-1.15

-16

-14

-13.5

-13

-10

-45 -40 -40 -35

-1.15

-16

-14

-13.5

-13

-10

-45 -40 -40 -35

-1.15

-16

-14

-13.5

-13

-10

2.5

-30

-1.15

-16

-14

-13.5

-13

-10

2.5

30-50MHz 100MHz

-11.5Ty

-1.1

-20Typ

-14

-37 dB Typ -30 dB Typ

-1.15

-16

-14

-13.5

-13

-10

-30

-1.15

-16

-14

-13.5

-13

-12

2.5

-30

-1.15

-16

-14

-13.5

-13

-10

2.5

-30

0.3-60MHz

60-100MHz

-1.1

2.5

-30

-14

-10

Number

LU1S041

LU1S041A

LU1S041B

LU1S041C

LU1S516

LU1S516A

LU1S516B

LU1S516E

LU1S516G

LU1S516-S

LU1SJ11

Turns Ratio

(±5%)

1CT:1CT

1CT:1

1CT:1CT

1CT:1

1CT:1CT

CW/W

(pF Max)

L.L

(uH Max)

0.5

0.3

0.4

0.5

HI-POT

(Vrms)

1500

0.3-60MHz

-40

30MHz

-55

0.3-30MHz

-45

Cross Talk

(dB Min)

0.3-80MHz

-35

50MHz

-45

60-100MHz

-38

100MHz

-35

60-100MHz

-35

1CT:1CT

1CT:1

1CT:1CT

1CT:1

1CT:1CT

-35

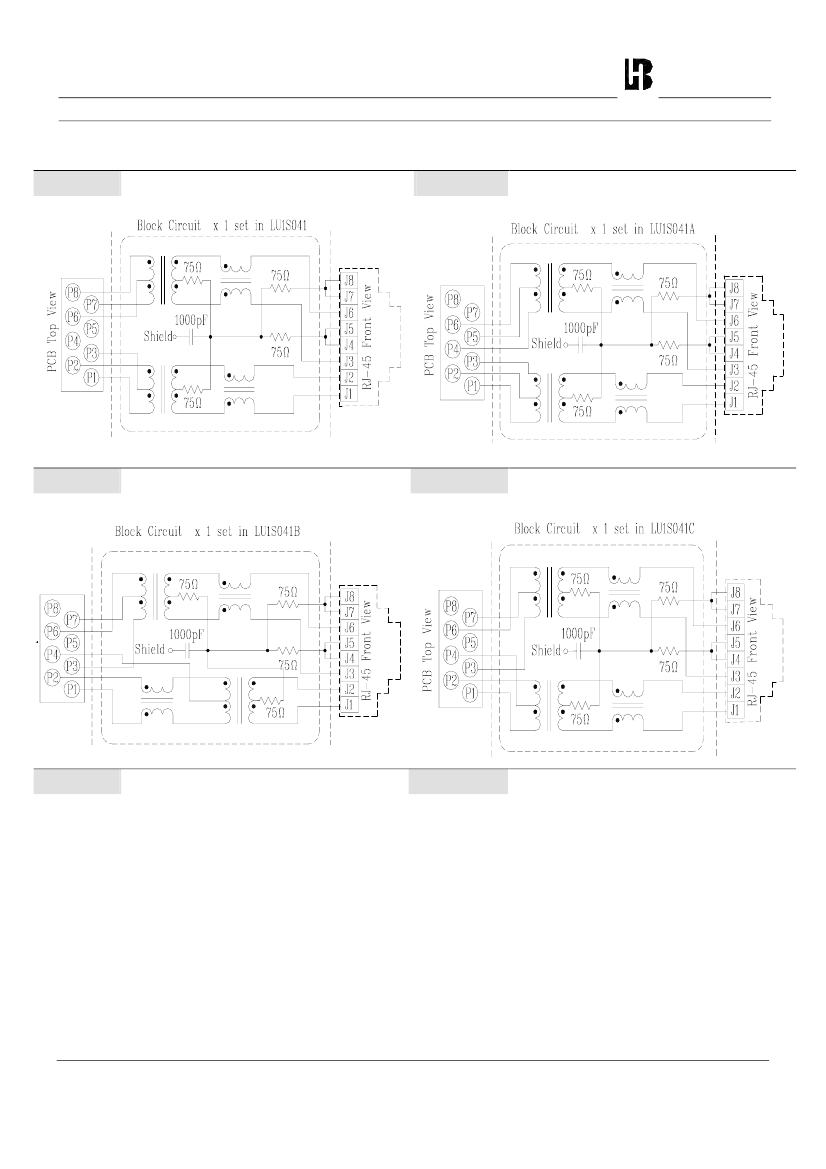

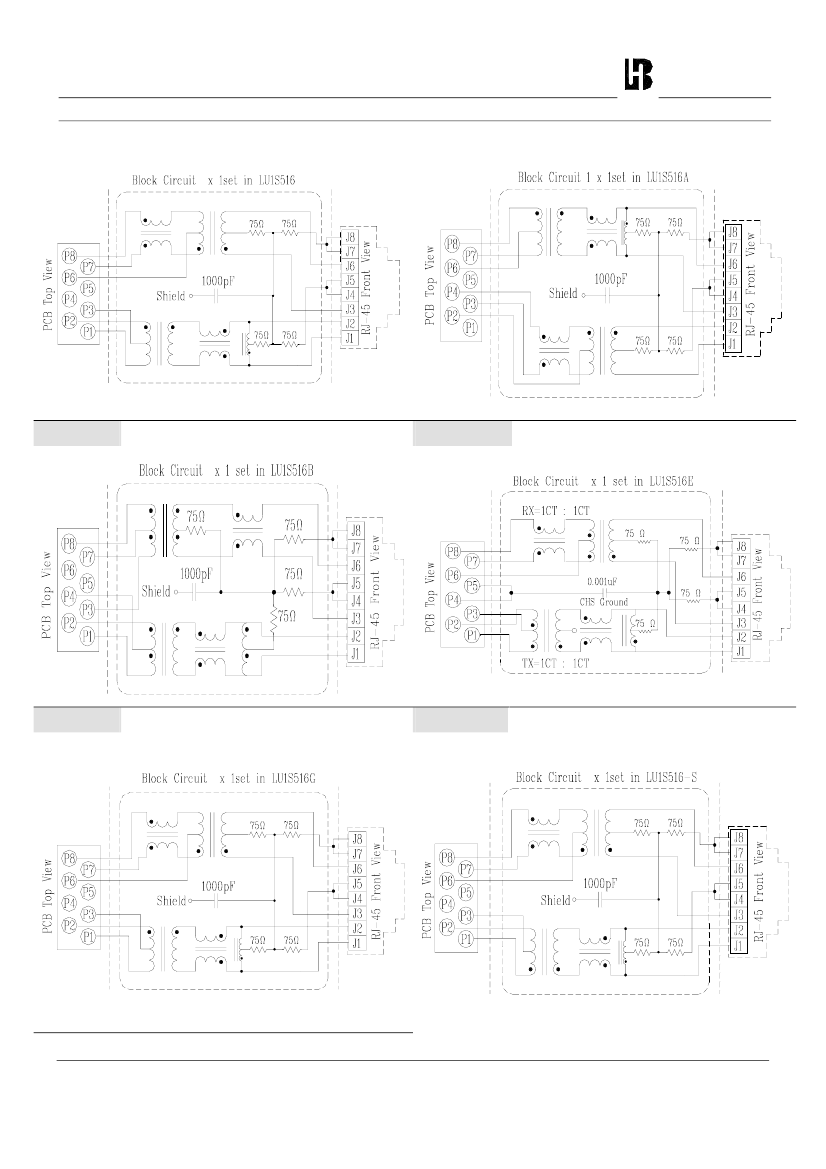

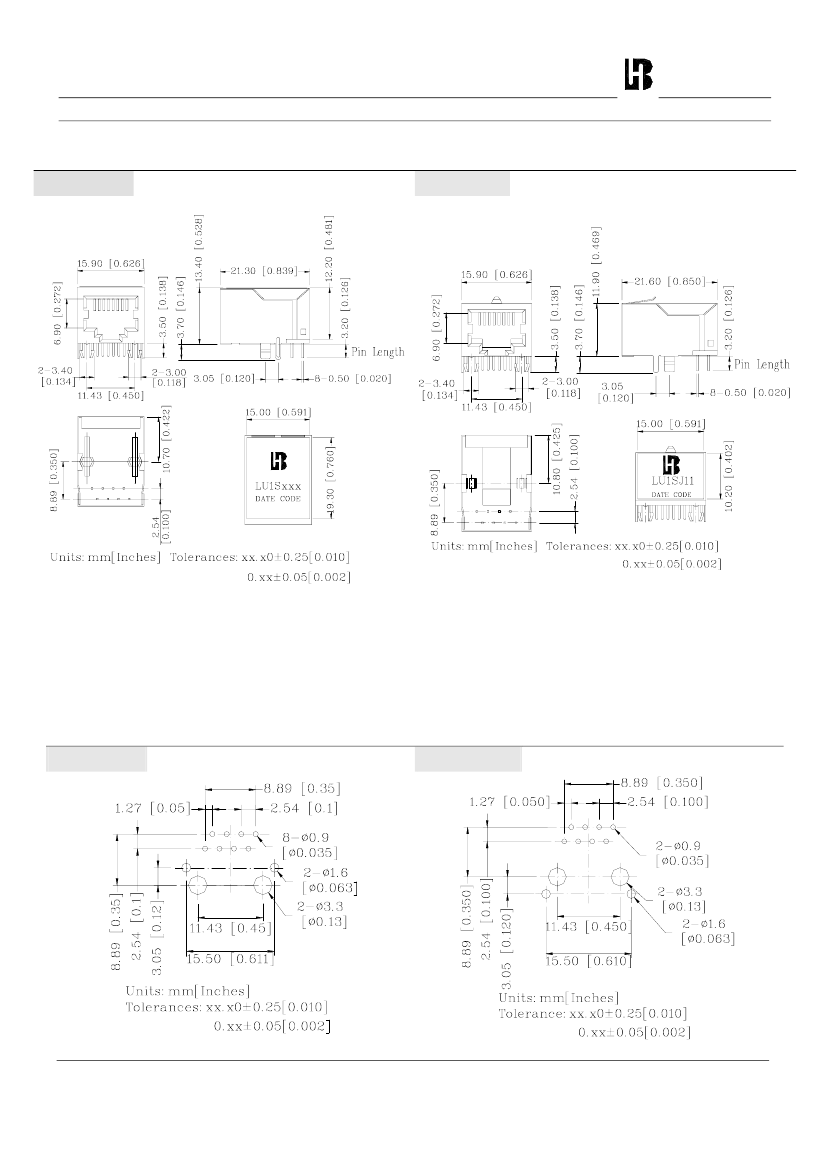

Bothhand USA

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
