LGP2431-0100: DescriptionCircular DC Power Connector, 6V, 0.5A, 1.3mm Dia,; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LGP2431-0100 Overview

Circular DC Power Connector, 6V, 0.5A, 1.3mm Dia,

LGP2431-0100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	JACK
Connector type	CIRCULAR DC POWER CONENCTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LGP2431-0100
Installation type	BOARD
Options	GENERAL PURPOSE
Pin diameter	1.3 mm
Rated current (power)	0.5 A
Rated voltage	6 V
Termination type	SOLID LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

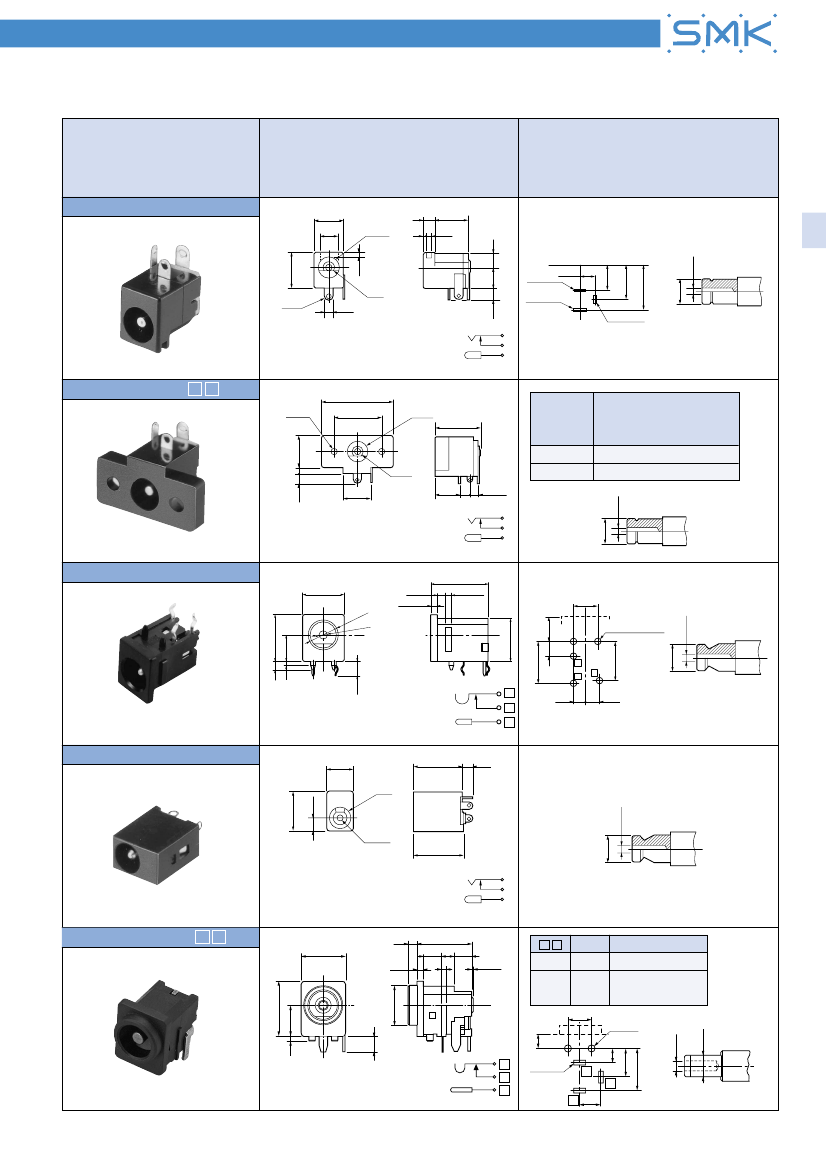

DC Power Supply Jack

特長・Features

1.

豊富なレパートリーを揃え、用途に応じた½い分けがで

きます。

1. A wide variety of power jacks are available for all types of

applications.

½品バリエーション・Products

Variation

適合プラグ・Applicable

Plug

DC POWER SUPPLY PLUGS / JACKS

図番

Part No.

S-G9312 #01

X-G9242 #

LGP6531-1000

LGP2431-0100

X-G9258 #01

LGP7031-11

定格

Rating

DC12V 1A

DC22.5V 4A

DC6V 0.5A

DC19V 5.3A

適合プラグ

Applicable Plug

øX

øY

Type

Dia

A

ø5.5

ø2.1

C

ø3.4

ø1.35

A Type

R0.5

øX

øY

電源ジャック試験用ゲージ・Power

Jack Testing Gauge

9.5

(8.2)

EIAJ RC-6705(DC Plug)

Type

Dia

C Type

øB

øA

ゲージA ゲージD

Gauge A Gauge D

ø2.1

ø5.5

ø2.1

ø5.5

C Type

7

øA

øB

−

A

…標準ゲージ A

-Standard Gauge

D

…絶縁ゲージ D

-Insulation Gauge

単½:mm/

Units:mm

仕様・Specifications

No

項目

Items

条件

Conditions

仕様

Specifications

30mΩ

以下

30mΩ max.

1

接触抵抗

1,000Hz

微小電流

(100mA

以下

)

にて測定する。

Contact

Measure with small current (less than 100mA)at 1,000Hz

Resistance

2

3

絶縁抵抗

DC500V (

100MΩ

以上

ブレーク接点の測定は試験用ゲージＤ挿入状態にて測定する。

)

Insulation

500V DC (Measure break contact with testing gauge D while inserted.)

100MΩ min.

Resistance

AC500V 1

分間

(

ブレーク接点の測定は試験用ゲージＤ挿入状態にて測定する。

)

耐電圧

異常ないこと

Withstanding 500V AC for one minute

There should be no

Voltage

breakdown of insulation.

(Measure break contact with testing gauge D while inserted.)

挿入力

試験用ゲージＡをテンションゲージで測定する。

Insertion Force Measure testing gauge A with a tension gauge.

抜去力

Extraction

Force

試験用ゲージＡをテンションゲージで測定する。

Measure testing gauge A with a tension gauge.

30N

以下

30N max.

3 ~30N

4

5

LGP2431-0100 Related Products

	LGP2431-0100	LGP6531-1000	LGP7031-1100	LGP7031-1101	X-G9242#02	X-G9258#01	X-G9242#01
Description	Circular DC Power Connector, 6V, 0.5A, 1.3mm Dia,	Circular DC Power Connector, 22.5V, 4A, 2mm Dia,	Circular DC Power Connector, 19V, 5.3A,	Circular DC Power Connector, 19V, 5.3A,	Circular DC Power Connector, 12V, 1A, 2mm Dia,	Circular DC Power Connector, 6V, 0.5A, 1.3mm Dia,	Circular DC Power Connector, 12V, 1A, 2mm Dia,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR
DIN compliance	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	LGP2431-0100	LGP6531-1000	LGP7031-1100	LGP7031-1101	X-G9242#02	X-G9258#01	X-G9242#01
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (power)	0.5 A	4 A	5.3 A	5.3 A	1 A	0.5 A	1 A
Rated voltage	6 V	22.5 V	19 V	19 V	12 V	6 V	12 V
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLDER LUG	SOLDER LUG	SOLDER LUG
Pin diameter	1.3 mm	2 mm	-	-	2 mm	1.3 mm	2 mm
Maker	-	-	SMK	SMK	SMK	SMK	SMK
