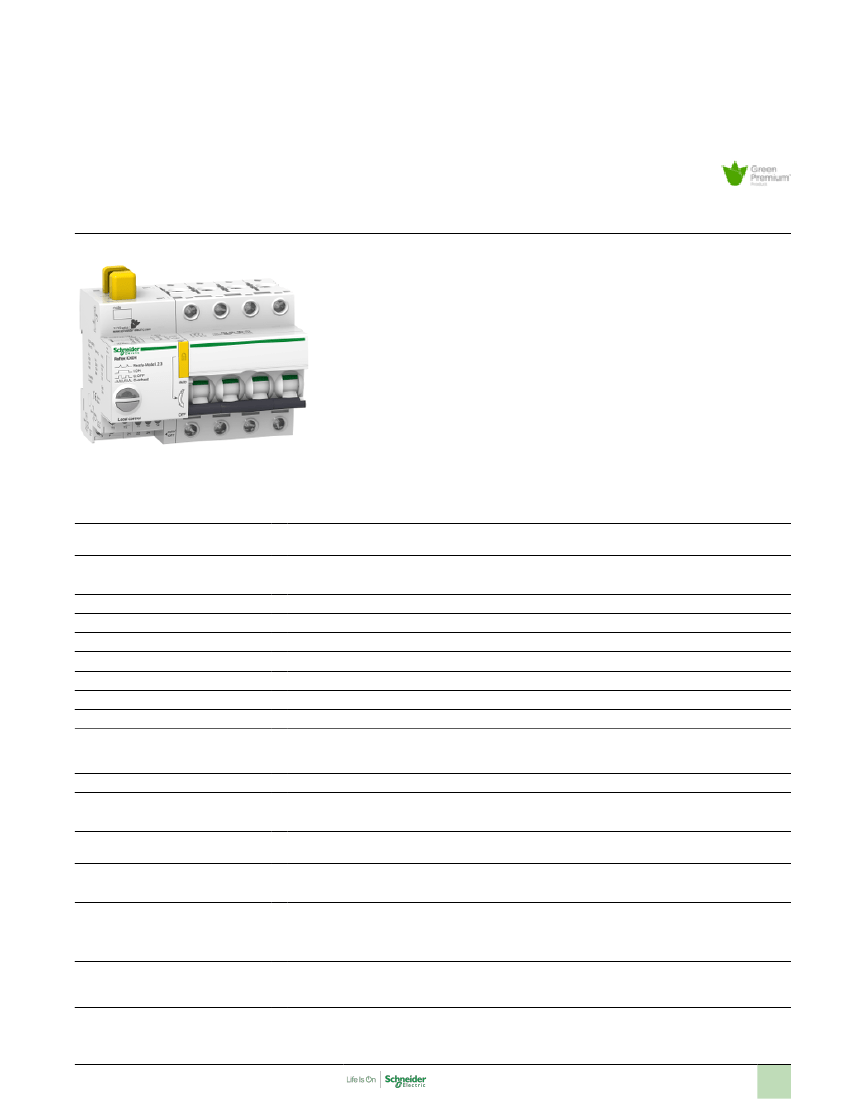

Product datasheet
Characteristics
A9C61416
Reflex iC60N Ti24 16 A 4P curve B integrated
control MCB
Main
Device application
Range
Product name
Device short name
Product or component type
Poles description
Number of protected poles
Network type
Trip unit technology
Curve code
Control
Distribution
Acti 9
Reflex iC60
Reflex iC60N
Integrated control circuit breaker
4P
4
AC
Thermal-magnetic
B
Complementary
[In] rated current
Network frequency
Breaking capacity code
Breaking capacity
[Ui] rated insulation voltage
Contact position indicator
Control type
16 A
50/60 Hz
N
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
500 V AC
Yes
Remote control by continuous command
Toggle
ON/OFF button
Remote control by pulse
Maintained very low voltage
Maintained
Impulse
Red LED: fault
Flashing LED: device ready
Flashing LED: device overheat
1
Control signal type
Local signalling
Aug 15, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Flashing LED: device tripped
Green LED: device ON
[Uc] control circuit voltage
230 V AC 50/60 Hz
24 V AC 50/60 Hz
48 V AC 50/60 Hz
24 V DC
48 V DC
230 V AC at 50/60 Hz
Fixed
35 mm symmetrical DIN rail
13
84 mm
117 mm
77 mm
White
50000 cycles
AC-1: 50000 cycles AC 50 Hz
Padlockable
Padlock in OFF position
Separate block
With PLC
[Us] rated supply voltage
Mounting mode
Mounting support
9 mm pitches
Height
Width
Depth
Colour
Mechanical durability
Electrical durability
Provision for padlocking
Locking options description
Earth-leakage protection
Product compatibility
Environment
IP degree of protection
Pollution degree
Tropicalisation
Relative humidity
IP20 conforming to IEC 60529
3
2
93 % at 40 °C
Offer Sustainability
Sustainable offer status
REACh Regulation
EU RoHS Directive
Mercury free
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
Green Premium product
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Yes
Yes
Download RoHS China Declaration
Product out of China RoHS scope. Substance declaration for your information
Product Environmental Profile
End of Life Information
The product must be disposed on European Union markets following specific waste collection and
never end up in rubbish bins
Contractual warranty
Warranty
18 months
2
