KGL5115KD

Description
Telecom Circuit, 1-Func, 4 X 4 MM, QFN-24
CategoryWireless rf/communication    Telecom circuit
File Size145KB,11 Pages
ManufacturerNeoPhotonics Corporporation
Download Datasheet Parametric Compare View All

KGL5115KD Overview

Telecom Circuit, 1-Func, 4 X 4 MM, QFN-24

KGL5115KD Parametric

Parameter NameAttribute value
Parts packaging codeQFN
package instructionQCCN,
Contacts24
Reach Compliance Codeunknown
JESD-30 codeS-XQCC-N24
length4 mm
Number of functions1
Number of terminals24
Maximum operating temperature95 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
encapsulated codeQCCN
Package shapeSQUARE
Package formCHIP CARRIER
Certification statusNot Qualified
Maximum seat height1.65 mm
Nominal supply voltage3.3 V
surface mountYES
Telecom integrated circuit typesTELECOM CIRCUIT
Temperature levelINDUSTRIAL
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationQUAD
width4 mm
Base Number Matches1
Electronic Components
KGL5115KD Series
11.3 Gbps Modulator Driver IC
September 16, 2010
ODHKGL5115KD-07
FEATURES
• Maximum Input Data Rate
• Output Amplitude
• Maximum Output Offset
• Crossing Point Controllability
• Small Package
• Low Power Consumption
: up to 11.3Gbps
: up to 2.3Vpp
: 1.0V at 50Ω Load
: 35% - 80%
: 4 x 4 mm QFN
: 0.45W @ 2.3Vpp Output and
output AC coupled using Bias-T.
APPLICATIONS
Sonet OC-192 / STM64 Transmission System up to 11.3Gbps
WDM System
10GBE System
Optical Transponder/Transceiver/Transmitter
300Pin / XENPAK / Xpak / X2 /XFP
Sonet/SDH Test Equipment
GENERAL DESCRIPTIONS
KGL5115KD is a high performance electroabsorption modulator and direct modulated LASER diode driver IC
for sonet/SDH and 10GBE applications up to 11.3Gbps.
The device provids typically 2.3Vpp output , output amplitude control, output offset control and output crossing
point ( X-Point )control.
KGL5115KD data input accepts single-ended or differential AC coupled signal. KGL5115KD suports differential
DC coupled or AC coupled ( using external bias tee ) output.
The output amplitude is able to be controled from 0.8Vpp up to 2.3Vpp by bias voltage of VC1. The output offset
can be tuned over 1.0V by bias voltage of VC2. The output crossing point ( X-Point ) is capable of adjusting from
35% to 80% of the output eye diagram via the differential voltage between VB1 and VB2.
KGL5115KD is very low power device, typical power consumption is 0.58W at output DC coupled and 2.3Vpp
output amplitude condition or 0.45W at output AC coupled using bias tee and 2.3Vpp output amplitude condition.
KGL5115KD is suitable for small form factor application such as XFP.

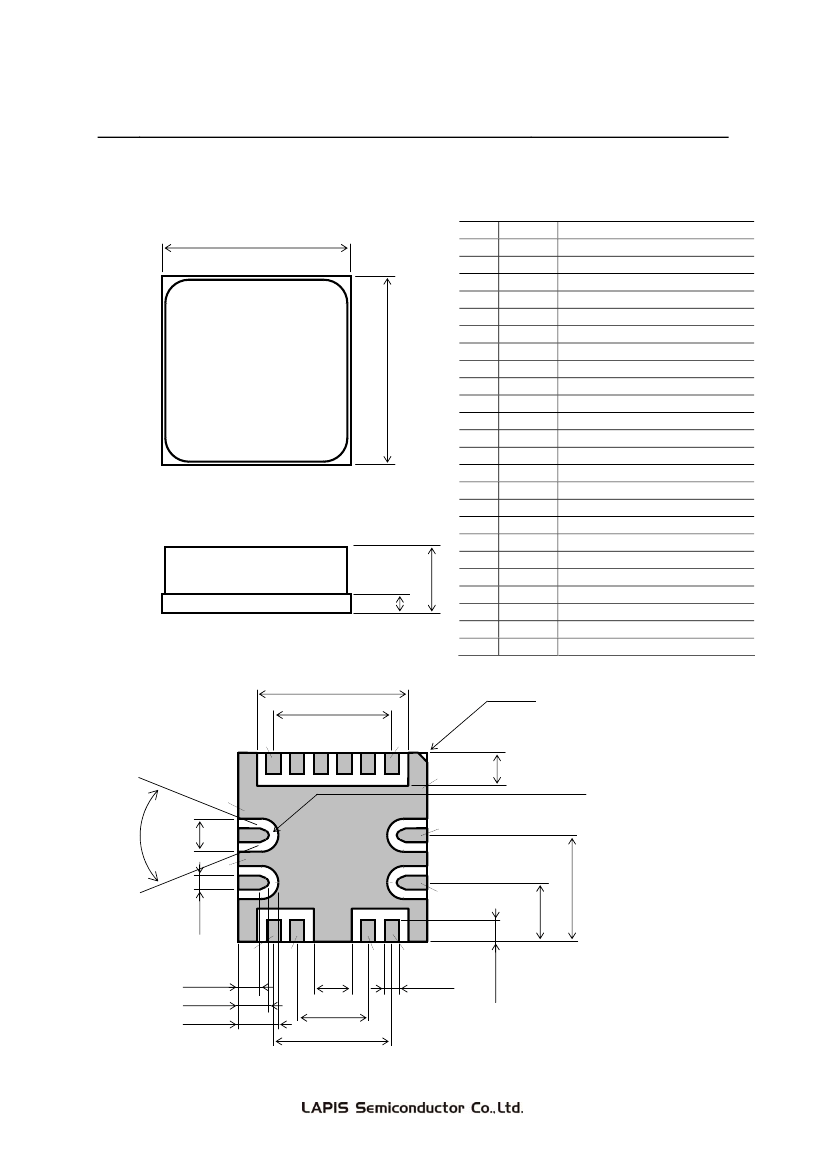

The package of KGL5115KD is 4 x 4mm QFN package.

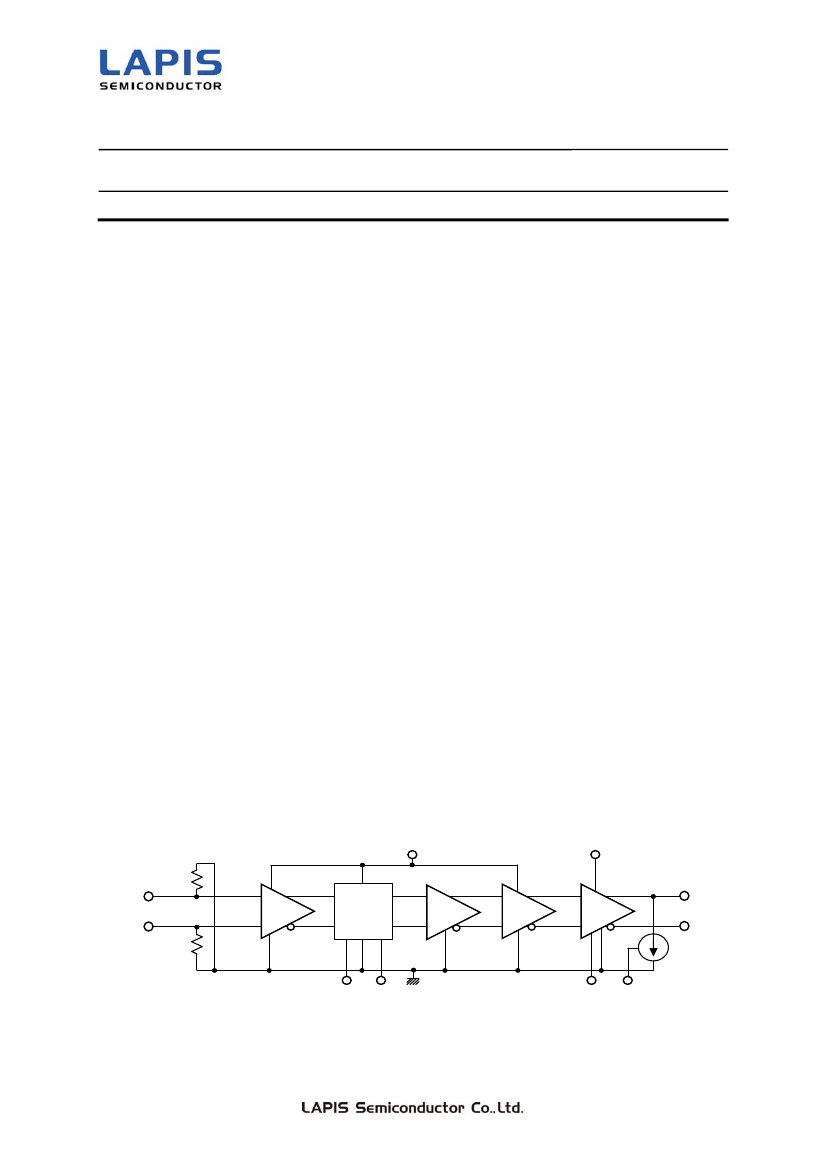

FUNCTION DIAGRAM
VD1
50Ω
IN
INB
50Ω
Crossing
Point
Control
VD2
OUT
OUTB
VB1 VB2
VC1
VC2
1/11

KGL5115KD Related Products

KGL5115KD KGL5115KD-L
Description Telecom Circuit, 1-Func, 4 X 4 MM, QFN-24 Telecom Circuit, 1-Func, 4 X 4 MM, QFN-24
Parts packaging code QFN QFN
package instruction QCCN, QCCN,
Contacts 24 24
Reach Compliance Code unknown unknown
JESD-30 code S-XQCC-N24 S-XQCC-N24
length 4 mm 4 mm
Number of functions 1 1
Number of terminals 24 24
Maximum operating temperature 95 °C 95 °C
Minimum operating temperature -40 °C -40 °C
Package body material UNSPECIFIED UNSPECIFIED
encapsulated code QCCN QCCN
Package shape SQUARE SQUARE
Package form CHIP CARRIER CHIP CARRIER
Maximum seat height 1.65 mm 1.65 mm
Nominal supply voltage 3.3 V 3.3 V
surface mount YES YES
Telecom integrated circuit types TELECOM CIRCUIT TELECOM CIRCUIT
Temperature level INDUSTRIAL INDUSTRIAL
Terminal form NO LEAD NO LEAD
Terminal pitch 0.5 mm 0.5 mm
Terminal location QUAD QUAD
width 4 mm 4 mm
Base Number Matches 1 1
