VPB1-A1D-40M000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> VPB1-A1D-40M000

Preview

VPB1-A1D-40M000: DescriptionHCMOS/TTL Output Clock Oscillator, 40MHz Nom, DIP-4; CategoryPassive components oscillator; File Size115KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

VPB1-A1D-40M000 Overview

HCMOS/TTL Output Clock Oscillator, 40MHz Nom, DIP-4

VPB1-A1D-40M000 Parametric

Parameter Name	Attribute value
package instruction	DIP-4
Reach Compliance Code	compliant
Other features	TRISTATE; TUBE
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	VPB1
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	15 pF
physical size	12.7mm x 12.7mm x 6.08mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

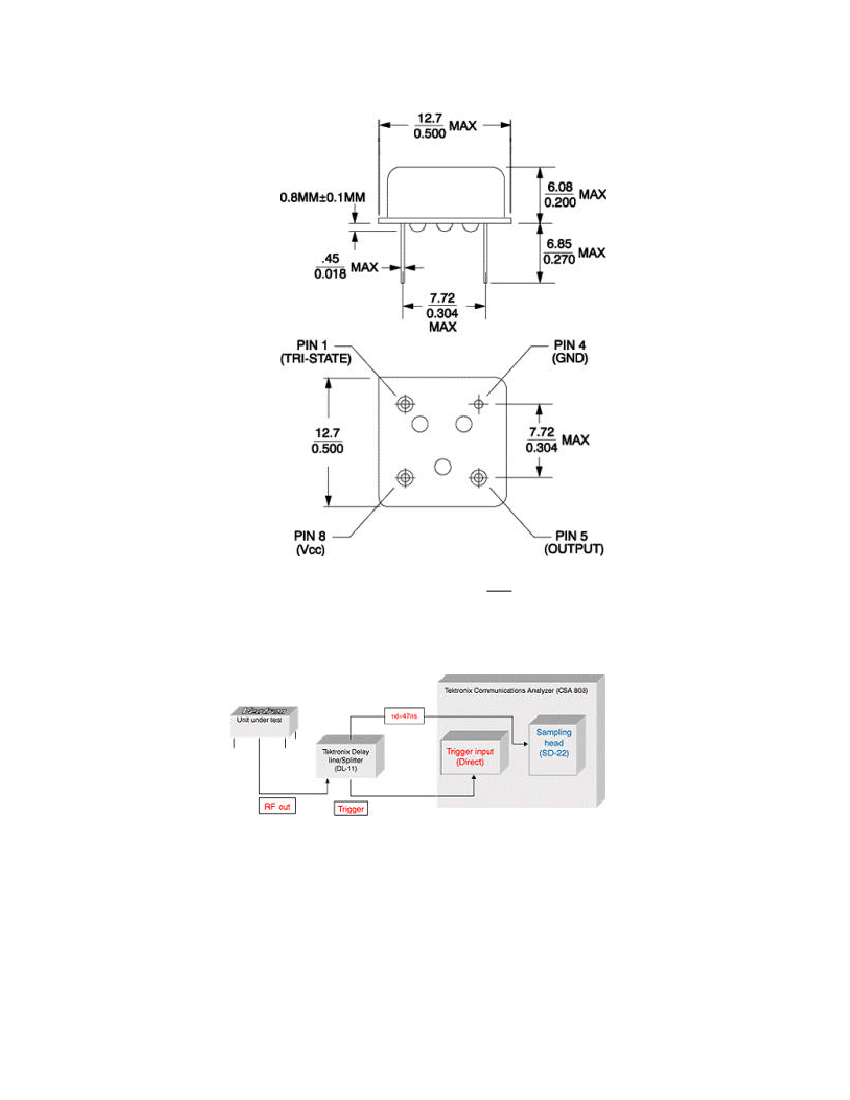

VPB1 Half Size Dip Crystal Oscillators

Featuring

•

Quick delivery

Wide output frequency range up to 125 MHz

Stabilities of ±50, ±100 PPM

3.3 or 5.0 Vdc Option

HCMOS/TTL Compatible

Frequency Range

Package Options

Voltage Options/

Load Drive

1.544 MHz to 125 MHz

B1

= 0.5” x 0.5” x 0.2” Half Size DIP

A

= +5.0 Vdc

±10%

15pF

B

= +3.3 Vdc

±10%

15pF

E

= +5.0 Vdc

±10%

50pF (≤ 66 MHz)

1

= Tristate 60/40 Symmetry

3

= Tristate 55/45 Symmetry (Non Standard)

N/C = OUTPUT

Logic 1 = OUTPUT

Logic 0 = High Impedance

A

=

B

=

C

=

D

=

±100

±50

±100

±50

PPM

0°C to +70°C

-40°C to +85°C

Electrical Options

Tristate

Stability Options

Start-Up

Standard Load

Total Jitter

1

10 ms Maximum

HCMOS/TTL

50 ps peak to peak Maximum

Anti Static Tubes

VPB1-B1B-40M000

A1

= 0.8” x 0.5” x 0.2” 14 pin DIP

B

= +3.3 Vdc ±10% 15pF

1

= Tristate 60/40 Symmetry

B

= ±50 PPM 0°C to +70°C

Standard Packaging

Typical P/N

1. As measured in a test circuit below .

2. Non Standard items may have limited frequency availability and most likely slightly longer lead times.

1
