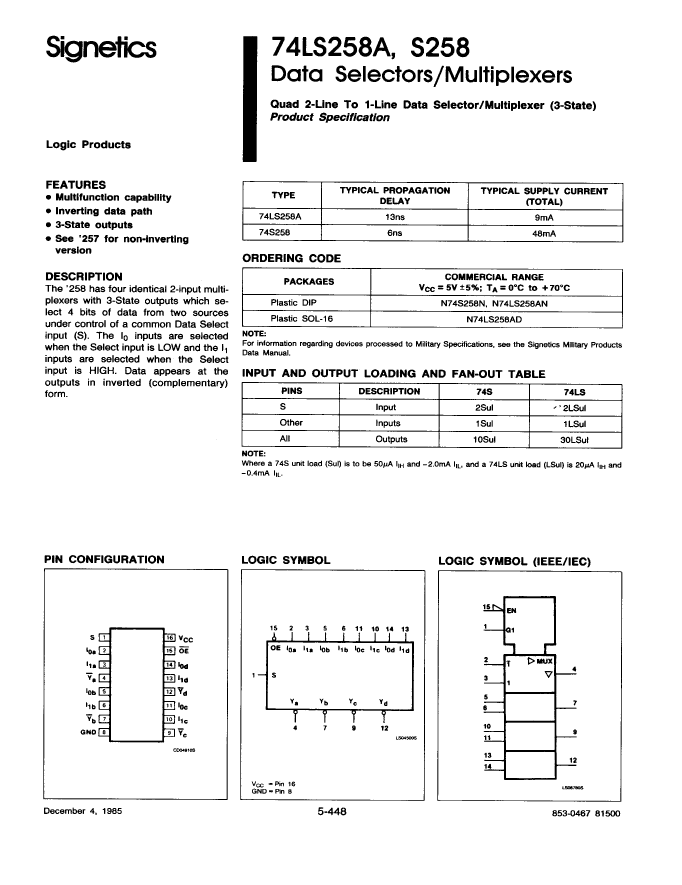

Multiplexer, LS Series, 1-Func, 8 Line Input, 4 Line Output, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16

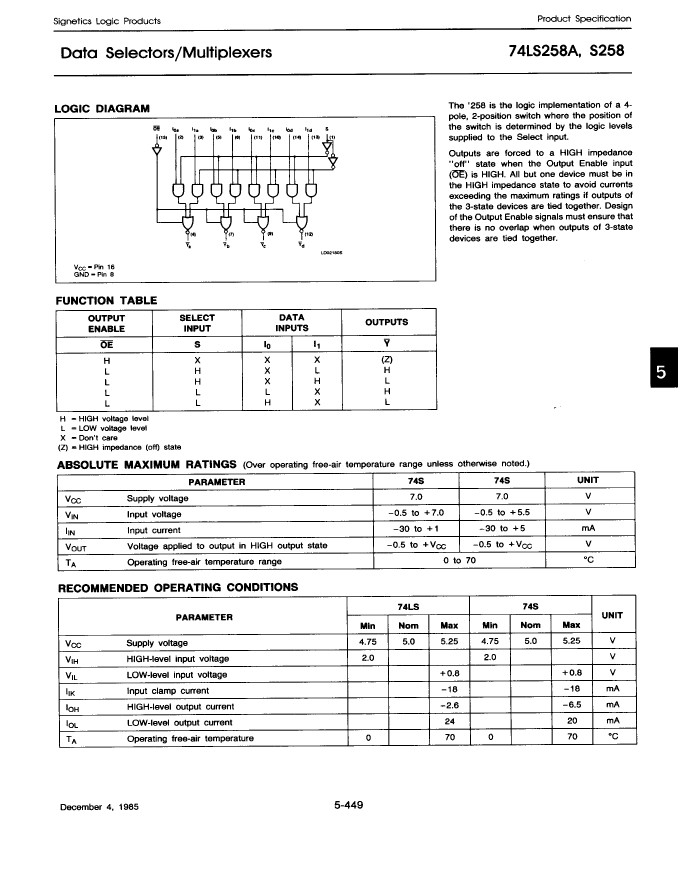

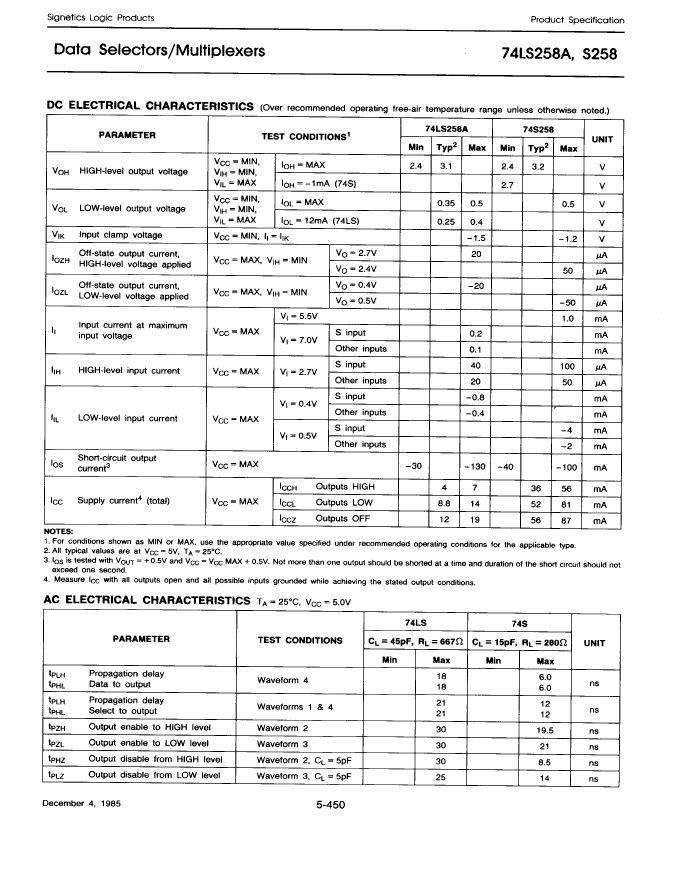

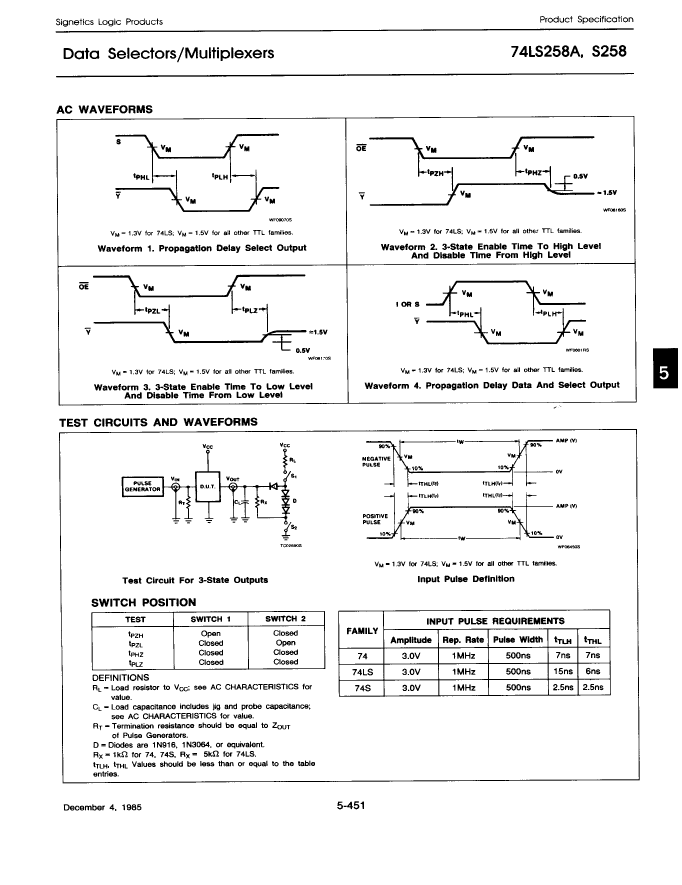

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.02 A |
| Number of functions | 1 |
| Number of entries | 8 |
| Output times | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 87 mA |
| Prop。Delay @ Nom-Sup | 12 ns |
| propagation delay (tpd) | 18 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| N74S258N | N74LS258AN | N74LS258AD | |
|---|---|---|---|
| Description | Multiplexer, LS Series, 1-Func, 8 Line Input, 4 Line Output, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 | Multiplexer, LS Series, 1-Func, 8 Line Input, 4 Line Output, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 | Multiplexer, LS Series, 1-Func, 8 Line Input, 4 Line Output, Inverted Output, TTL, PDSO16, PLASTIC, SOL-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | PLASTIC, SOL-16 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | LS | LS | LS |
| JESD-30 code | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| MaximumI(ol) | 0.02 A | 0.024 A | 0.024 A |
| Number of functions | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 |
| Output times | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | SOP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | SOP16,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE |
| power supply | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 87 mA | 19 mA | 19 mA |
| Prop。Delay @ Nom-Sup | 12 ns | 21 ns | 21 ns |
| propagation delay (tpd) | 18 ns | 18 ns | 18 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | - |
| length | - | 19.09 mm | 10.3 mm |
| Maximum seat height | - | 4.06 mm | 2.65 mm |
| width | - | 7.62 mm | 7.5 mm |
