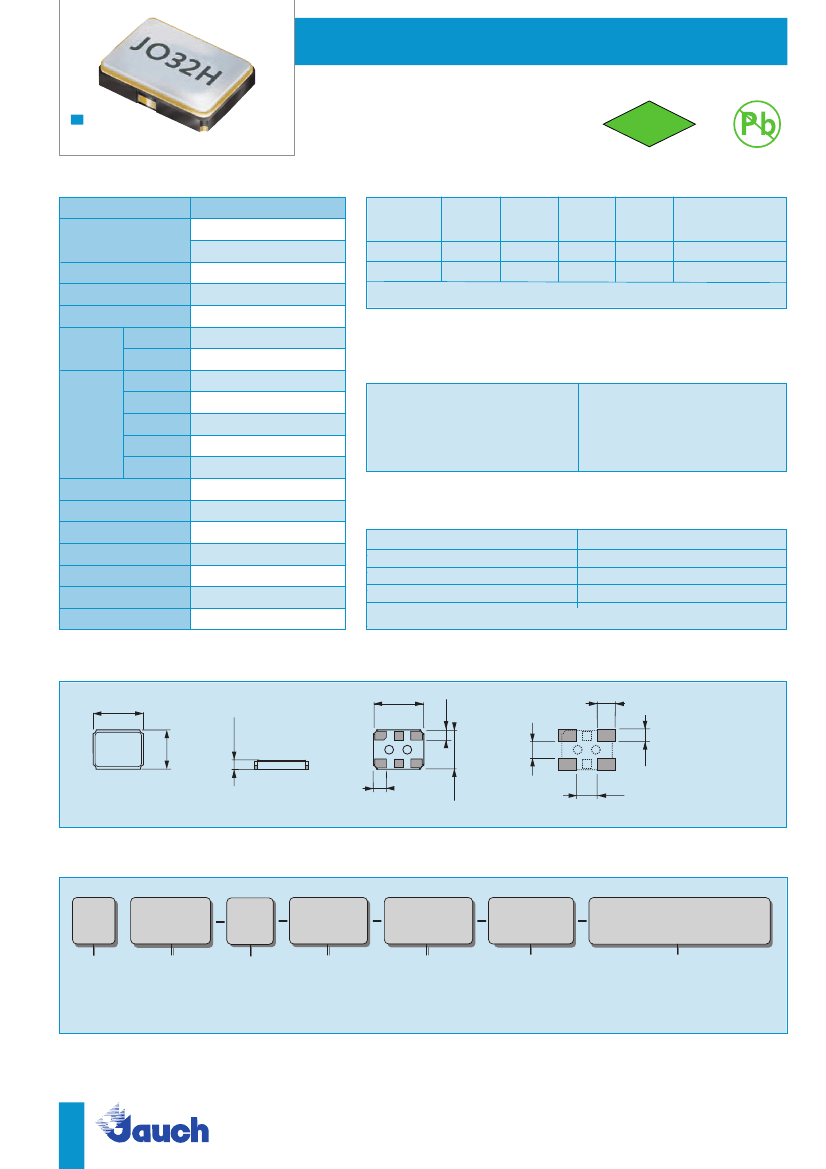

Oscillator · JO32H · 2.5 V
High Stability Oscillator with Stop Function · 3.2 x 2.5 mm
actual size
■
■
■
■
low cost high stability SMD oscillator
stability meets spec for WiMax and WLAN
RoHS compliant, ceramic/metal package
reflow soldering temperature: 260
°C max.
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
frequency stability over all*
aging 1st year
current consumption
supply voltage V
DC
temperature
operating
storage
output
rise & fall time
load max
current max.
low level max.
high level min.
output enable time max.
output disable time max.
start-up time max.
standby function
standby current max.
phase jitter 12kHz~20MHz
symmetry at 0.5 x VDC
JO32H 2.5V
4.0 ~ 54.0 MHz (15pF max.)
± 10ppm ~ ± 20ppm (table 1)
+/-2 ppm max.
7 mA max.
2.5 V ± 10%
-20°C ~ +70°C / -40°C ~ +85°C
-40°C ~ +85°C
5 nsec max.
15pF
4 mA
0.1 x V
DC
0.9 x V
DC
1ms
250ns
2ms
stop
5µA
< 3.0 ps RMS typ.
45% ~ 55% max.
Table 1: Frequency Stability Code
stability code
D
± 20 ppm
-20 °C ~ +70 °C
-40 °C ~ +85 °C
O
available
* includes stability at 25°C, operating temp. range, supply voltage change, load change, vibration, aging 1st year
O
O
E
± 15 ppm
O
O
F
± 10 ppm
O
O
Table 2: Rise & Fall Time max.
5 ns: 4.0 ~ 54.0 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Enable / Disable Function
pin #1 (e/d control)
open
high ”1” (V
IH
≥
0.7 V
DC
)
low ”0” (V
IL
≤
0.3 V
DC
)
pin #3 (output)
active
active
high impedance
stop function:
• oscillator stops / • output high impedance
Dimensions
0.5
±0.1
3.2
±0.1
0.9
±0.1
2.5
±0.1
3.0
±0.1
#1 #2 #3
1.0
±0.1
Connection
# 1: e/d
# 2: nc
# 3: ground
# 4: output
# 5: nc
# 6: V
DC
in mm
1.3
±0.1
2.3
±0.1
#6 #5 #4
0.7
±
0.1
1.6
±0.1
top view
side view
bottom view
pad layout
Order Information
O
Oscillator
frequency
type
frequency stability
code
see table 1
supply voltage
code
2.5 = 2.5 V
output load
code
1 = 15 pF
0.8
±0.1
option
4.0 ~ 54.0 MHz
JO32H
blank = -20°C ~ +70°C
T1 = -40°C ~ +85°C
Example: O 20.0-JO32H-F-2.5-1-T1
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
171008
Oscillator · JO32H · 2.5 V · Low Power
Taping Specification
4.0
±0.1
ø 1.5
±0.1
1.75
±0.1
8.75
±0.3
120°
5.25
±0.1
ø 21
±0.5
8.0
±0.1
3.4
±0.1
4.0
±0.1
2.7
±0.1
Feeding
1.4
±0.1
500 pcs per reel
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~180 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Marking
frequency
requency / frequ. stability code / date code
date code:
A ~ M: Jan.- Dec.
5: 2005
6: 2006
7: 2007
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
60.5
±0.5
ø 178
±2.0
2.0
±0.1
ø 13
±0.5
