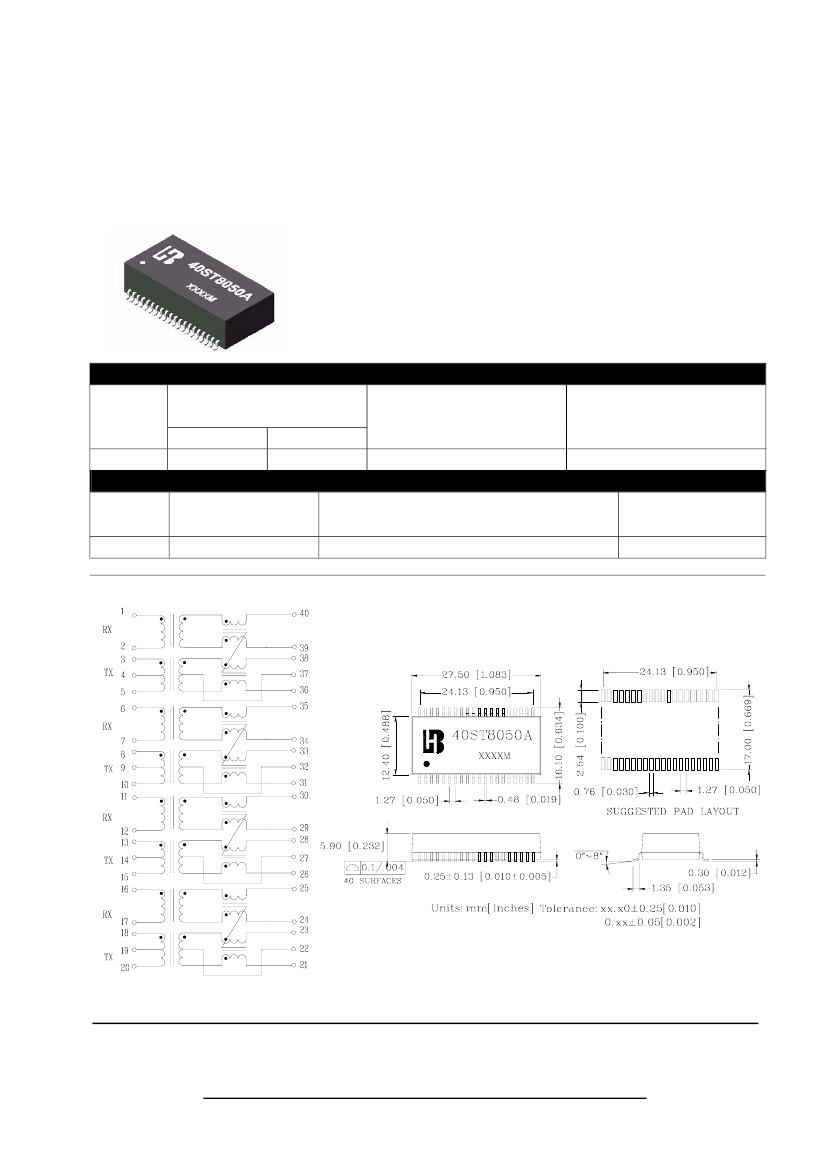

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

40 PIN SMD ETHERNET 10-BASE T QUAD PORT TRANSFORMER

P/N: 40ST8050A DATA SHEET

Page : 1/1

Feature

Operating temperature range : 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

Part

Number

40ST8050A

TX

1CT:1CT

Turns Ratio

(±2%)

RX

1:1

OCL(•H)

@0.2V,100KHz

TX&RX

100

L.L(•H Max)

@1MHz TX&RX

0.3

Continue

Part

Number

40ST8050A

Cw/w

(pF Max) TX&RX

12

DCR

(Ω Max)Pri/Sec

0.5/1.5

HI-POT

(Vrms)@60s

1500

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A0(02/06)
