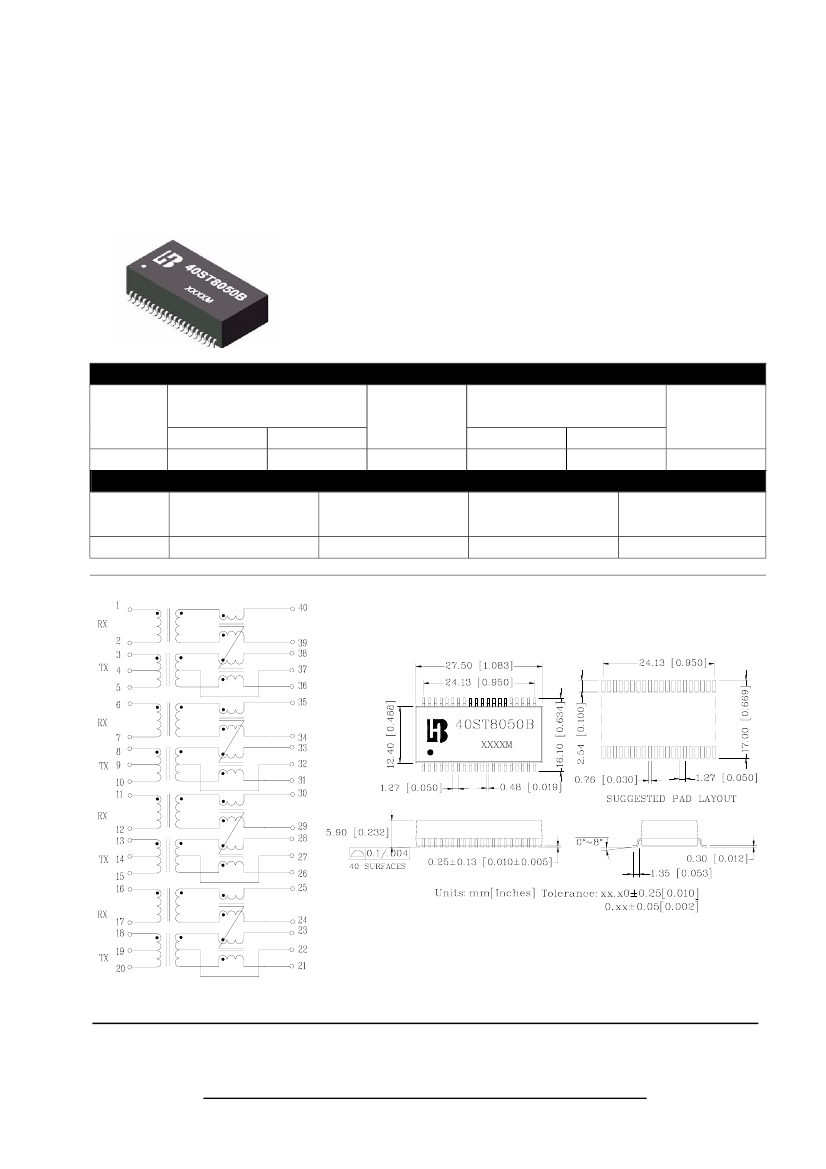

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

40 PIN SMD ETHERNET 10-BASE T QUAD PORT TRANSFORMER

P/N: 40ST8050B DATA SHEET

Page : 1/1

Feature

40-PIN SMD Package compatible with IEEE 802.3 standard

& for the new Technology “Filterless” transceiver chips.

Designed for multiport repeater and switched Ethernet

Applications utilizing single RJ-45 connectors.

Operating temperature range : 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

Part

Number

40ST8050B

1CT:1CT

Turns Ratio

(±5%)

1:1

80-130

Pri.OCL

(•H)

0.4

L.L

(•H Max)

0.4

Pri/Sec Cw/w

(pF Max)

Continue

Part

Number

40ST8050B

Peak pulse rating

(V)

Dessipation rating

(m W)

Insulation Resistance

Ω)

10,000

HI-POT

(Vrms)

1500

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A1(02/06)
