PEEL22CV10ZJ-25 datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> PEEL22CV10ZJ-25

PEEL22CV10ZJ-25: DescriptionEE PLD, 25ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size631KB，7 Pages; ManufacturerIntegrated Circuit Systems（IDT ）

Download Datasheet Parametric Compare View All

PEEL22CV10ZJ-25 Overview

EE PLD, 25ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28

PEEL22CV10ZJ-25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Circuit Systems（IDT ）
Parts packaging code	QLCC
package instruction	QCCJ, LDCC28,.5SQ
Contacts	28
Reach Compliance Code	unknown
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
maximum clock frequency	33.3 MHz
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
length	11.5062 mm
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Programmable logic type	EE PLD
propagation delay	25 ns
Certification status	Not Qualified
Maximum seat height	4.369 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm

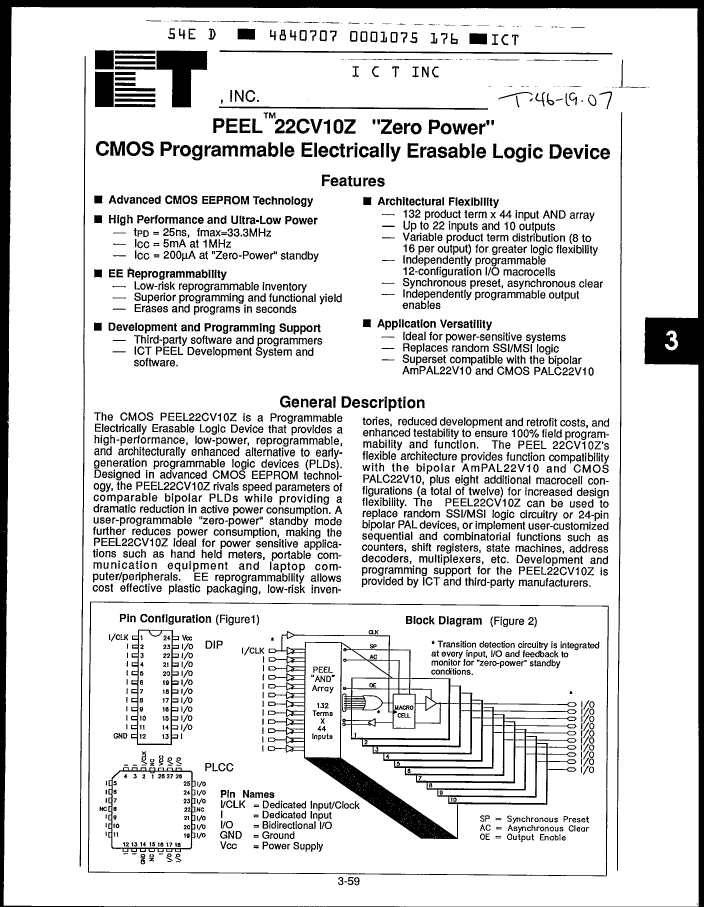

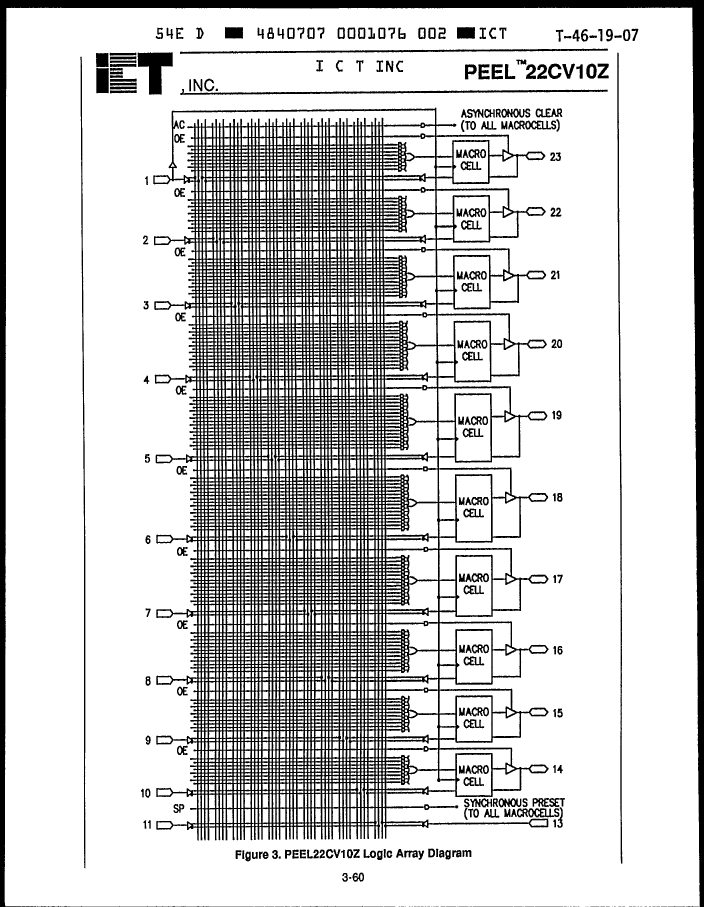

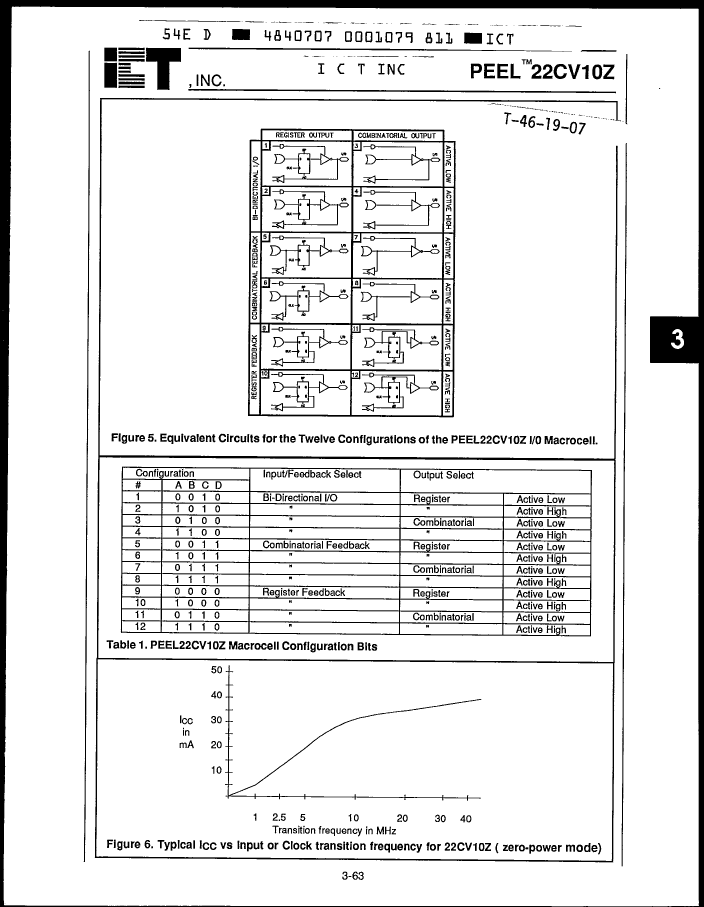

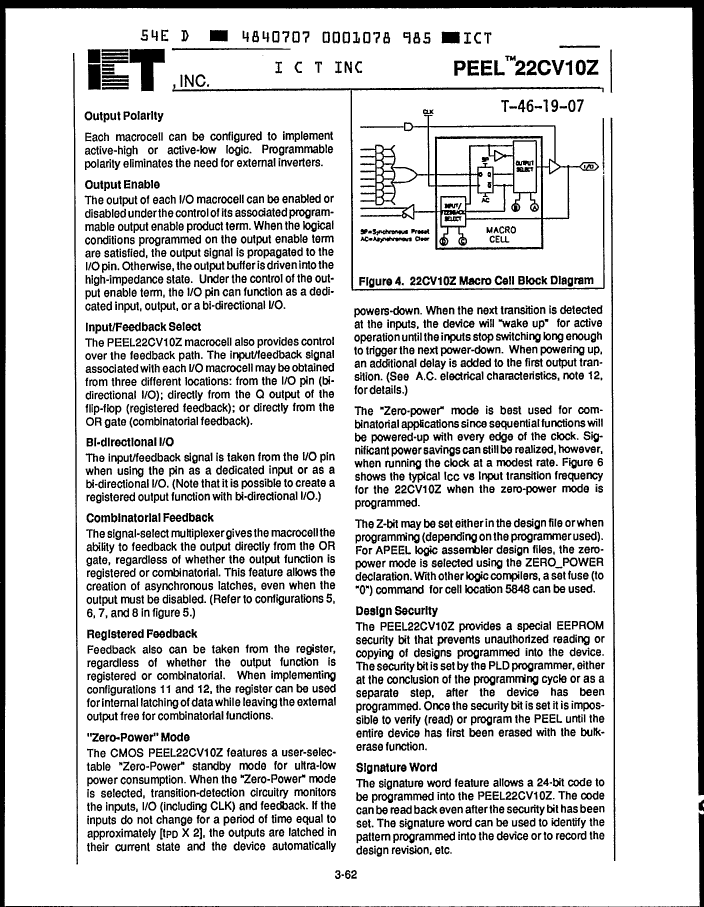

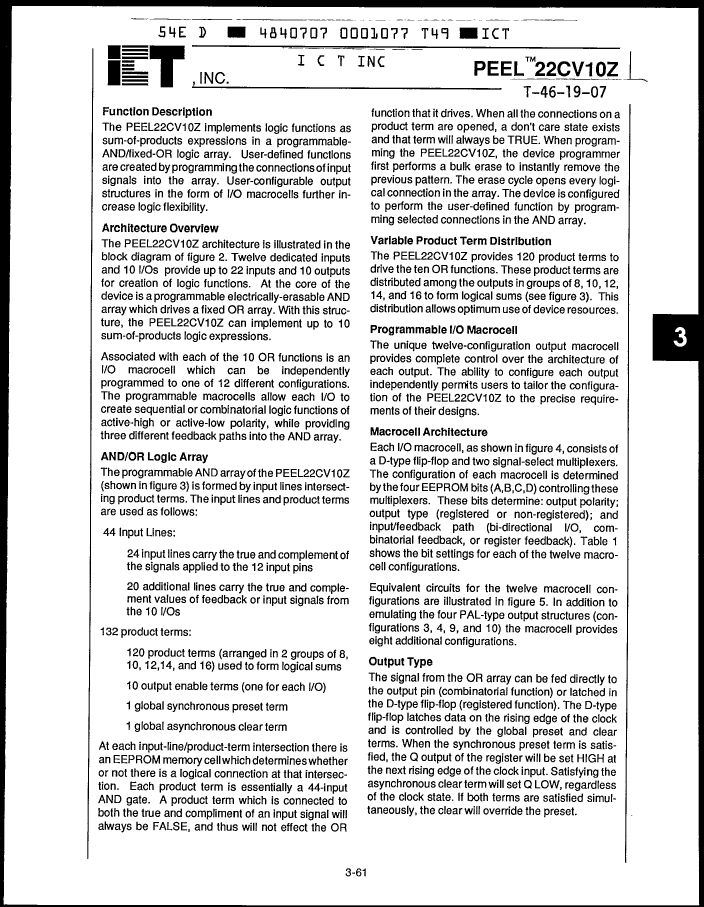

Preview

Download Datasheet

View All

PEEL22CV10ZJ-25 Related Products

	PEEL22CV10ZJ-25	PEEL22CV10ZP-25	PEEL22CV10ZJI35
Description	EE PLD, 25ns, PAL-Type, CMOS, PQCC28, PLASTIC, LCC-28	EE PLD, 25ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Programmable Logic Device
Maker	Integrated Circuit Systems（IDT ）	Integrated Circuit Systems（IDT ）	Integrated Circuit Systems（IDT ）
Reach Compliance Code	unknown	unknown	unknown
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	QLCC	DIP	-
package instruction	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	-
Contacts	28	24	-
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	-
Architecture	PAL-TYPE	PAL-TYPE	-
maximum clock frequency	33.3 MHz	33.3 MHz	-
JESD-30 code	S-PQCC-J28	R-PDIP-T24	-
JESD-609 code	e0	e0	-
length	11.5062 mm	31.75 mm	-
Dedicated input times	11	11	-
Number of I/O lines	10	10	-
Number of entries	22	22	-
Output times	10	10	-
Number of product terms	132	132	-
Number of terminals	28	24	-
Maximum operating temperature	70 °C	70 °C	-
organize	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	-
Output function	MACROCELL	MACROCELL	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	QCCJ	DIP	-
Encapsulate equivalent code	LDCC28,.5SQ	DIP24,.3	-
Package shape	SQUARE	RECTANGULAR	-
Package form	CHIP CARRIER	IN-LINE	-
power supply	5 V	5 V	-
Programmable logic type	EE PLD	EE PLD	-
propagation delay	25 ns	25 ns	-
Certification status	Not Qualified	Not Qualified	-
Maximum supply voltage	5.25 V	5.25 V	-
Minimum supply voltage	4.75 V	4.75 V	-
Nominal supply voltage	5 V	5 V	-
surface mount	YES	NO	-
technology	CMOS	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	J BEND	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	-
Terminal location	QUAD	DUAL	-
width	11.5062 mm	7.62 mm	-
Base Number Matches	-	1	1
