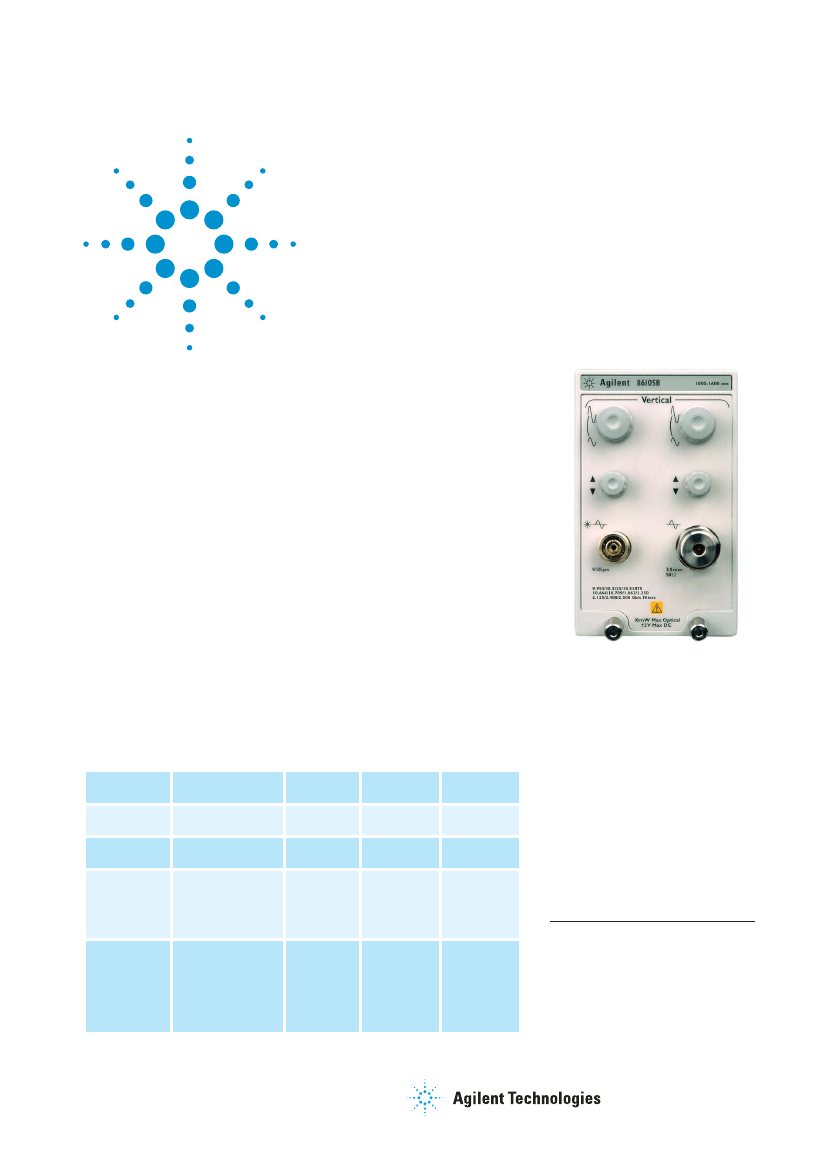

Agilent 86105B 15 GHz Optical and
20 GHz Electrical Plug-In Module
Test a wide variety of telecom and datacom transmission
rates with the 86105B multi-rate compliance filter module
The 86105B Infiniium DCA plug-
in module offers unprecedented
optical filter coverage for SONET/
SDH and Datacom/Enterprise
technologies from 155 Mb/s to 11.317
Gb/s. With the increased need to
address the bottleneck concerns
within the Enterprise and Telecom
networks, network equipment
elements and their components need
to be engineered with flexibility,
performance and cost in mind. The
86105B now allows designers and
manufactures to test transmitter
compliance and perform waveform
characterization on multiple
technologies and data rates with a
single module.
Component/System Design and
Manufacturing
The 86105B gives designers
and manufacturers the ability
to accurately characterize the
transmission performance of
components and systems that
cross the boundary between
Telecom (e.g. SONET/ SDH) and
Datacom/Enterprise (e.g. Ethernet)
technologies. Such examples would
include 10 Gb/s 200/300 pin MSA
transponders which may be designed
to conform to different standards
and different data rates. Also new
devices being designed for emerging
standards, such as Xenpaks for 10 Gb
Ethernet or small form factor (SFF
and SFP) transceivers for the OC-48
market.
Unprecedented Filter Rate Coverage
Data Rate
155 Mb/s
622 Mb/s
1063 Mb/s
1250 Mb/s
2125 Mb/s
2488 Mb/s
2500 Mb/s
2500 Mb/s
2666 Mb/s
9.953 Gb/s
10.3125 Gb/s
10.51875
10.664 Gb/s
10.709 Gb/s
11.096 Gb/s
11.317 Gb/s
Standard
OC-3
OC-12
Fibre Channel
GbE
2x Fibre Channel
OC-48
2xGbE
InfiniBand
OC-48 (FEC)
OC-192
10GbE
10xFibre Channel
OC-192 (FEC)
OC-192 (ITU-TG.709)
10GbE
10G Fibre Channel
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Option
86105B-111
Option
86105B-112
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Option
86105B-113
OC-192 SONET transmission has
various specified rates depending on
the technology being implemented
and the network being designed.
The OC-192 rate is 9.953 Gb/s. The
rate goes up to 10.664 Gb/s with the
addition of Forward Error Correction
(FEC). In addition there is now OTN
G.709, which adds additional network
control and further increases the rate
to 10.71 Gb/s. To meet this increased
transmission speed, components must
scale and be tested accordingly.
Specifications
(Preliminary)
Bandwidth
Wavelength
Sensitivity
(typical)
RMS noise
Fibre Input
15 GHz Optical and
20 GHz Electrical
1000–1600 nm
–12 dBm
5 µW
Single Mode
In the midst of increasing SONET/
SDH rates, new Datacom/Enterprise
standards are emerging such as
10 Gb Ethernet and 10X Fibre
Channel, which run at 10.3125 Gb/s
and 10.51875 Gb/s respectively.
Switching and routing systems are
required to interface some of these
technologies (specifically the IEEE
802.3 Ethernet standards and SONET)
at varying rates. Therefore, the ability
to test and characterize performance
across a wide range of technologies
and data-rates is essential in the R&D
and manufacturing environments.
Multi-port and multi-rate
system/component designers and
manufactures can take advantage
of both the wide filter coverage and
-12 dBm sensitivity of the 86105B.
With this module it is now possible
to characterize optical transmission
performance of all SONET, Ethernet,
and Fibre Channel technologies,
from 155 Mb/s through to 10 Gb/s. In
addition, new Infiniium DCA 86100A/
B firmware now supports mask
testing for emerging standards such
as optical InfiniBand and electrical
XAUI signaling.
www.agilent.com
For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent
office. The complete list is available at:
www.agilent.com/find/contactus
Phone
Americas
Canada
Latin America
United States
Asia Pacific
Australia
China
Hong Kong
India
Japan
Korea
Malaysia
Singapore
Taiwan
Thailand
Europe
Austria
Belgium
Denmark
Finland
France
Germany
0820 87 44 11
32 (0) 2 404 93 40
45 70 13 15 15
358 (0) 10 855 2100
0825 010 700
01805 24 6333*
*0.14€/minute
Ireland
1890 924 204
Italy
39 02 92 60 8484
Netherlands
31 (0) 20 547 2111
Spain
34 (91) 631 3300
Sweden
0200-88 22 55
Switzerland
(French)
44 (21) 8113811 (Opt 2)
Switzerland
(German)
0800 80 53 53 (Opt 1)
United Kingdom
44 (0) 7004 666666
Other European countries:
www.agilent.com/find/contactus
Revised: March 23, 2007
(877) 894-4414
305 269 7500
(800) 829-4444
1 800 629 485
800 810 0189
800 938 693
1 800 112 929
81 426 56 7832
080 769 0800
1 800 888 848
1 800 375 8100
0800 047 866
1 800 226 008

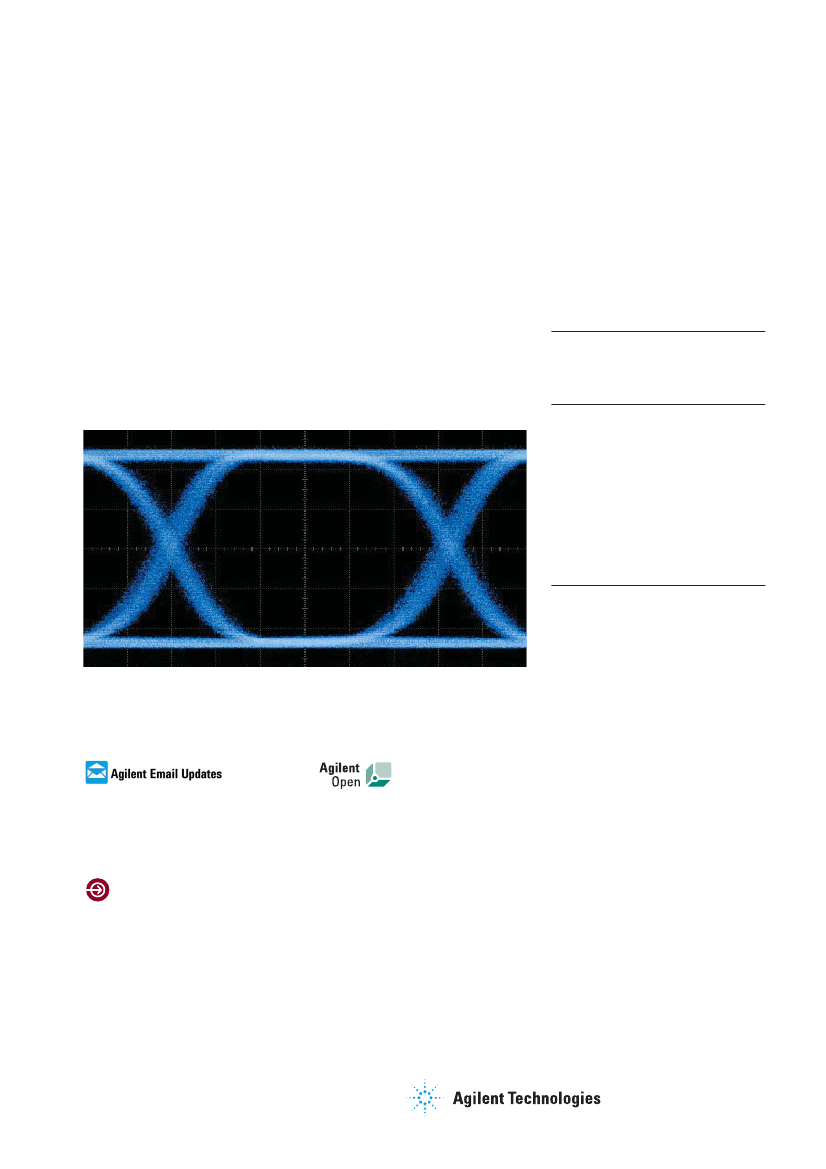

86105B 15 GHz Opt. bandwidth sensitivity spec: -12 dBm at 1310 nm
