LU4S041C-43LF

Description
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND 2LEDS
File Size114KB,2 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet View All

LU4S041C-43LF Overview

1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND 2LEDS

Bothhandusa.com
“LAN-MATE” SERIES
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND 2LEDS
P/N: LU4S041C-43 LF
Page : 1/2
Feature
l
l
l
l
l
l
l
l
RJ-45 connector integrated with X’
FMR /impedance
resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 100 BASE transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +85℃.

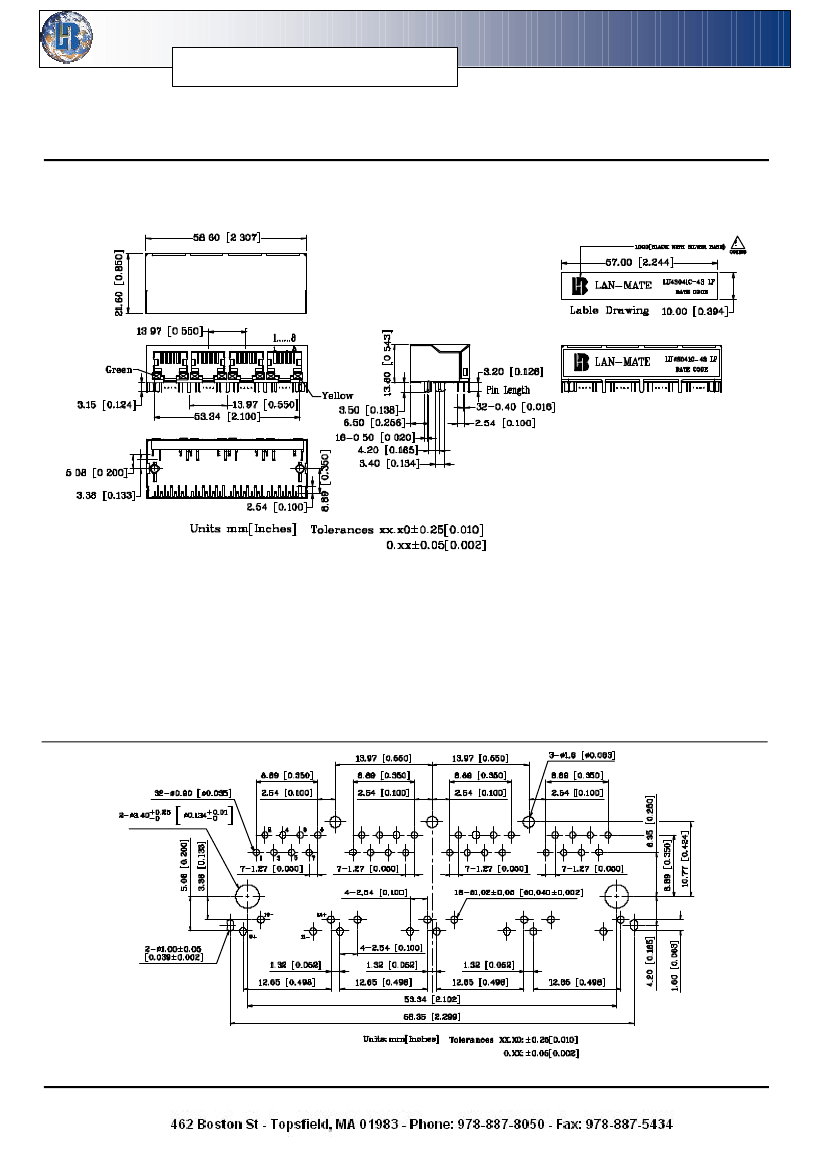

Recommended panel
Part Number Standard LED Forward*V(Max) (TYP)
3
YELLOW
2.6V
2.1V
4
GREEN
2.6V
2.2V
*With a forward current 20mA
Electrical Specifications @ 25°C
Part
Number
TX
Turns Ratio
(±5%)
RX
OCL (uH Min)
@ 100 KHz/0.1V
with 8mA DC Bias
350
28
0.4
C
W/W
(pF Max)
L.L
(uH Max)
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
1500
HI-POT
(Vrms)
LU4S041C-43 LF 1CT:1CT 1CT:1CT
Continue
Part
Number
LU4S041C-43 LF
-16
-14
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min)
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
-13.5
-13
-10
-40
-35
-30
-30
-25
-20
Schematic
