Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU4U041F LF
Page : 1/ 2
Feature
l
l
l
l
l
l
l
l
Turns Ratio
(±5%)
TX
LU4U041F LF
1CT:1CT
RX
1CT:1CT
RJ-45 needs to be matched FCC standard
RJ-45 connector integrated with X’
FMR /Impedance
resistor/High voltage capacitor.
Size same as RJ-45 connector to save PCB Board space.
Reduced MI radiation to rove EMI performance.
Design for 100 Base transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
OCL (uH Min)
@100KHz/100mVrms
with 8mA DC Bias
350
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
1500
Part
Number
HI-POT
(Vrms)
Continue
Part
Number
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min)
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
LU4U041F LF
-16
-14
-13.5
-13
-10
-40
-35
-30
-30
-25
-20

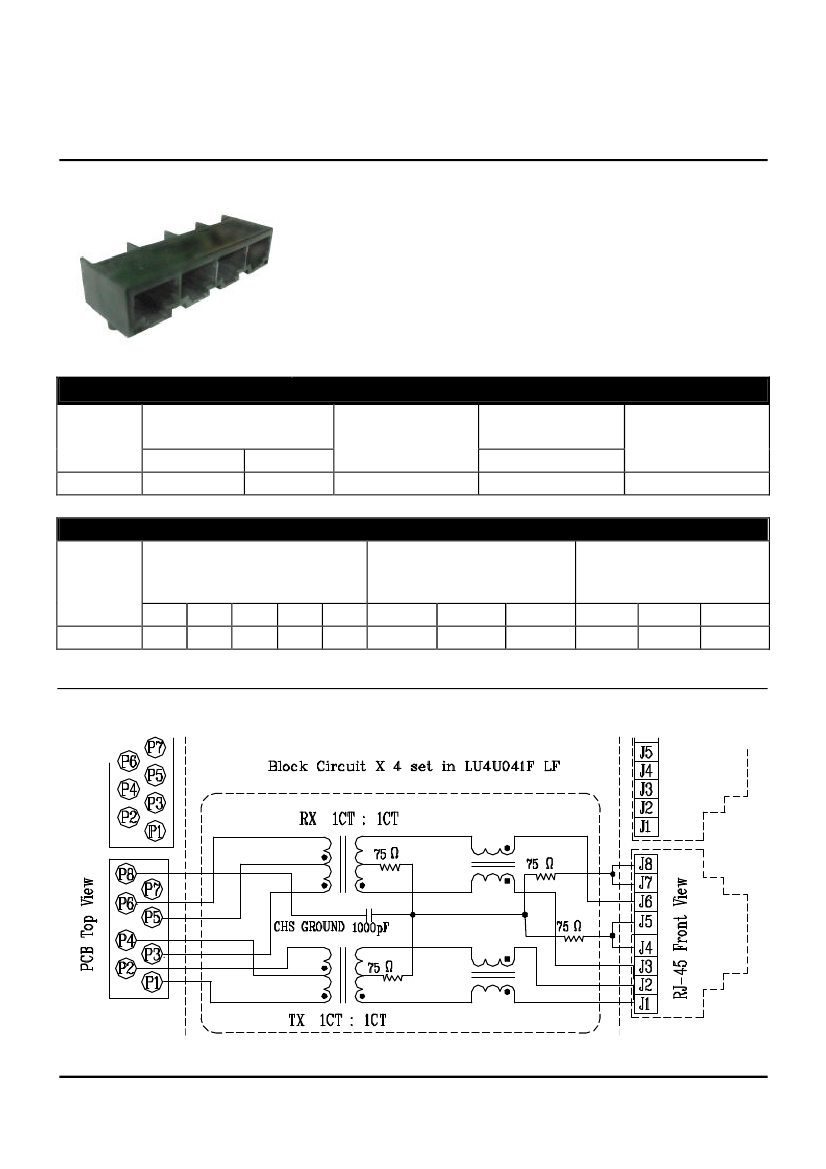

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU4U041F LF
Mechanical
Page : 2/ 2
1. Plastic Material
2 Spring Wire
3. Solder Pin
4. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.

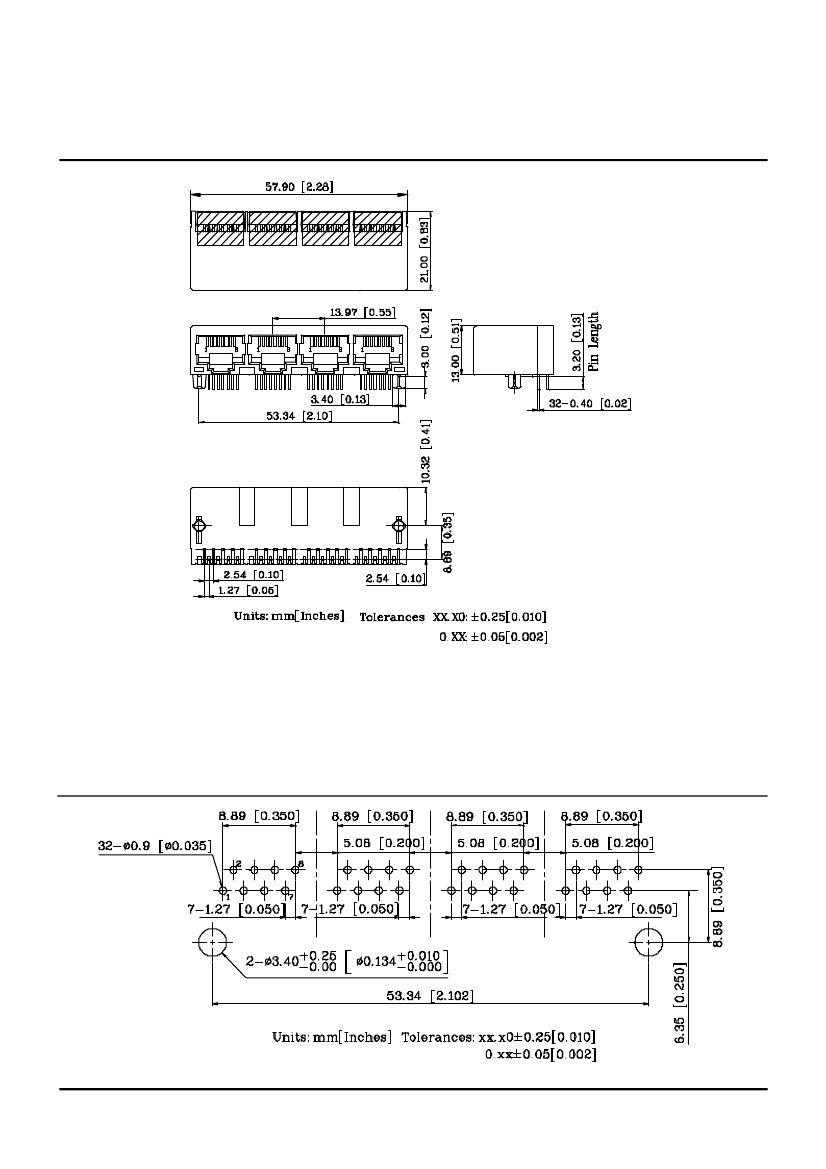

PCB Layout Mounting Hole(Top View)
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
