SDC009-07-0020: DescriptionPCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Ivory Insulator, Receptacle; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerProconn Technology Co., Ltd.

Download Datasheet Parametric Compare View All

SDC009-07-0020 Overview

PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Ivory Insulator, Receptacle

SDC009-07-0020 Parametric

Parameter Name	Attribute value
Maker	Proconn Technology Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITHOUT WP/CD TERMINAL
Board mount options	LOCATING POSTS
body width	0.11 inch
subject depth	0.984 inch
body length	1.043 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	COMPRESSION
Insulator color	IVORY
insulator material	THERMOPLASTIC
Manufacturer's serial number	SDC009
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

1

A

2

3

4

5

6

7

8

9

10

REV

11

MODIFICATION

DRAWN

12

APPROVED

R

EN070804

A

B

14.00

25.8

24.3

MODIFY VERSION

1.20

13.25

2.00

C

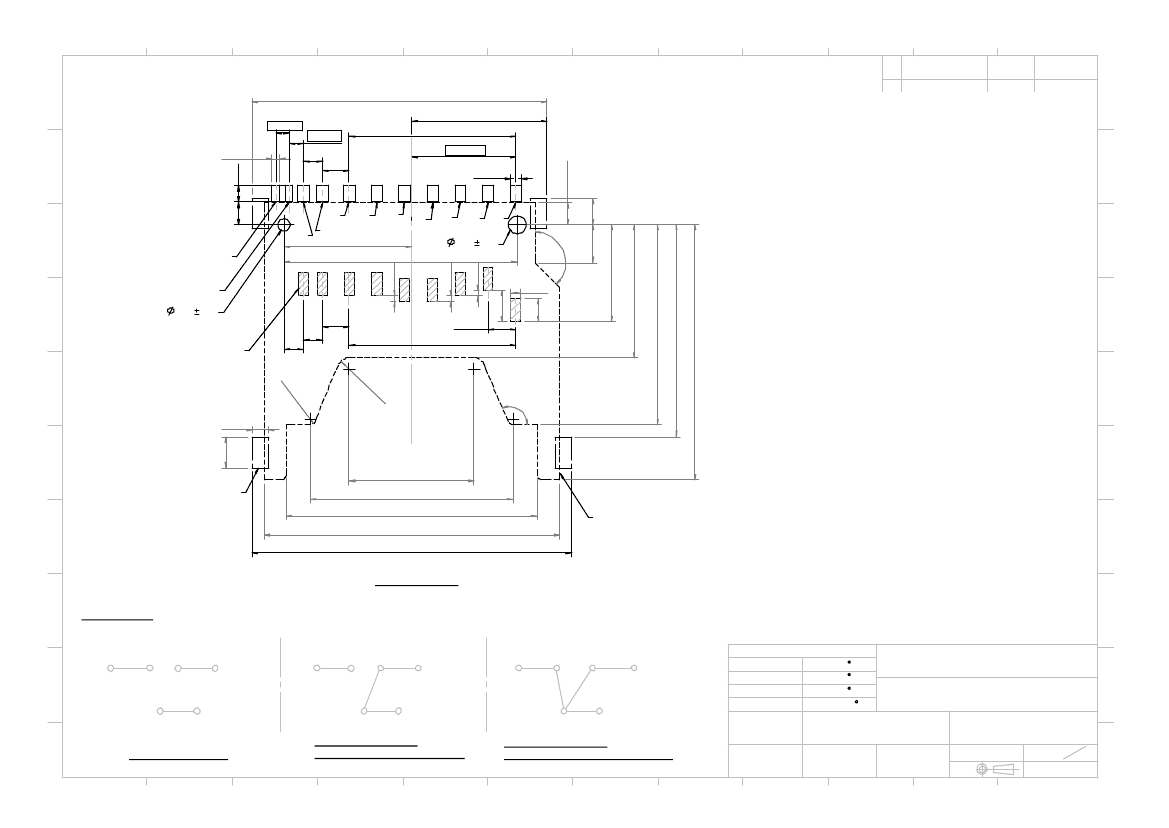

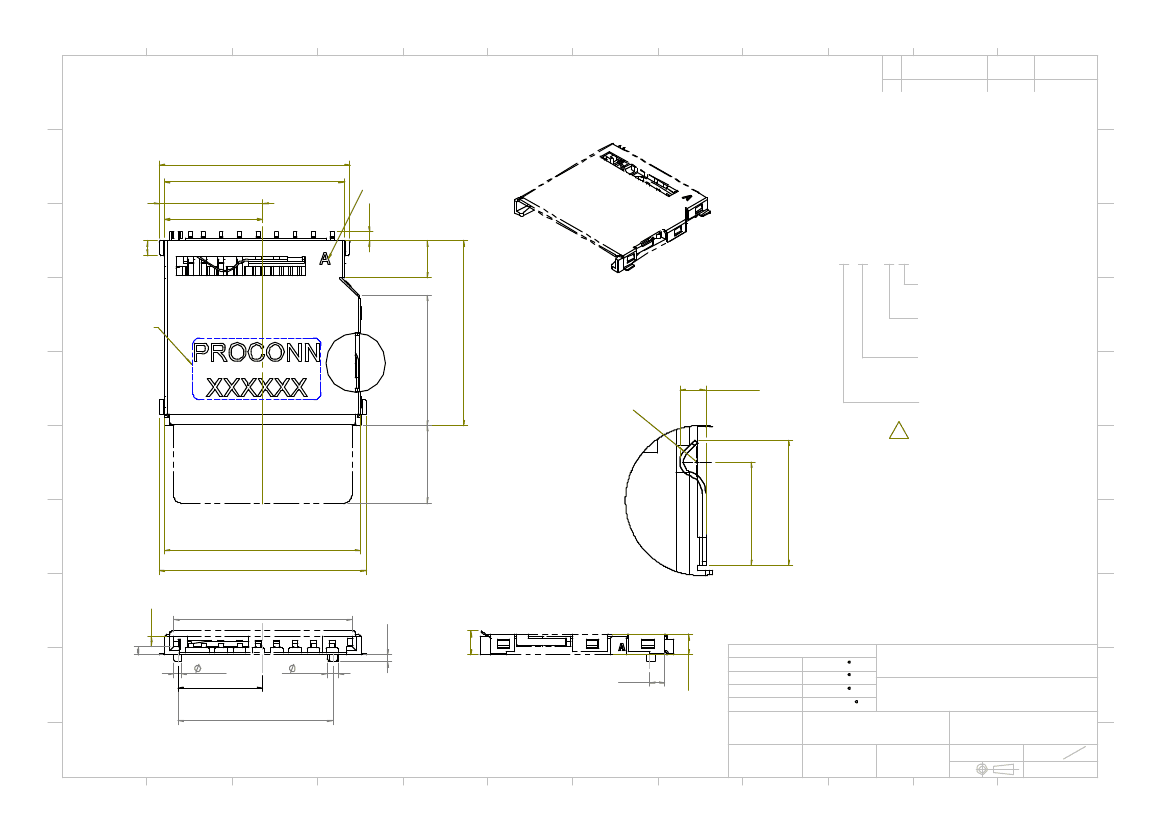

NOTES :

1. MATERIAL :

INSULATOR : HIGH THERMOPLASTIC UL 94V-0,

COLOR : IVORY/BLACK

CONTACT : COPPER ALLOY

WRITE PROTECT CONTACT:TITANIUM COPPER

COVER : STAINLESS

2. CONTACT AREA PLATING :

GOLD OVER Ni

COVER : SOLDER TAIL AREA GOLD PLATED

UNDER PLATED NICKEL OVERALL

3. COPLANARITY MUST BE WITHIN 0.12mm

4. MULTIMEDIA CARD COMPATIBLE

5.SDC009 - X X - 0 X X 0

0 - WITH WP/CD TERMINAL

2 - WITHOUT WP/CD TERMINAL

B

C

D

5.0

17.61

25.00

DATE CODE

DATE CODE:

0 - WITH DATE CODE

3 - W/O DATE CODE

COLOR :

0 - BLOCK

7 - IVORY

PLATING:

0 - GOLD FLASH

2 - 10u"GOLD

Unlead Plating:

A- GOLD FLASH

C- 10u" GOLD

D

G

E

R0

.90

1.40

E

R

10.50

F

C

L

F

G

5.60

6.75

26.5

28.0

G

1.50

H

1.10

G

24.15

0.85

H

GENERAL TOLERANCE

3.20

I

11.50

2.00

2.80

1.00

1.50

X.± 0.40

.X± 0.30

.XX± 0.20

.XXX± 0.10

UNIT

X.°± 5

.X°± 2

.XX°± 1

.XXX°± 0.5

PART NO.

Proconn Technology Co.,Ltd.

TITLE

C

L

21.00

SD Card Connector

DWG NO.

I

mm

SDC009-XX-0XX0

CHECKED

DRAWN

SCALE

PROJ.

SDC009-01-R1

NONE

SHEET

REV

J

1

2

3

4

5

6

7

8

APPROVAL

1

R

2

J

9

10

11

QP-04-04-B

SDC009-07-0020 Related Products

	SDC009-07-0020	FXPS7115D4	SDC009-20-0320
Description	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Ivory Insulator, Receptacle	Digital absolute pressure sensor, 40 kPa to 115 kPa	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Black Insulator, Receptacle
Maker	Proconn Technology Co., Ltd.	-	Proconn Technology Co., Ltd.
Reach Compliance Code	unknown	-	unknown
Other features	WITHOUT WP/CD TERMINAL	-	WITHOUT WP/CD TERMINAL
Board mount options	LOCATING POSTS	-	LOCATING POSTS
body width	0.11 inch	-	0.11 inch
subject depth	0.984 inch	-	0.984 inch
body length	1.043 inch	-	1.043 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	PCMCIA CONNECTOR	-	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI	-	AU ON NI
Contact point gender	MALE	-	MALE
Contact material	COPPER ALLOY	-	COPPER ALLOY
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	COMPRESSION	-	COMPRESSION
Insulator color	IVORY	-	BLACK
insulator material	THERMOPLASTIC	-	THERMOPLASTIC
Manufacturer's serial number	SDC009	-	SDC009
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	1	-	1
Number of ports	1	-	1
Number of rows loaded	1	-	1
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
Plating thickness	FLASH inch	-	10u inch
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Termination type	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	9	-	9
