CY7C1386D, CY7C1386F
CY7C1387D, CY7C1387F
18-Mbit (512 K × 36/1 M × 18) Pipelined
DCD Sync SRAM
18-Mbit (512 K × 36/1 M × 18) Pipelined DCD Sync SRAM
Features
■
■
■
■
■
■
■
■
Functional Description
The
CY7C1386D/CY7C1387D/CY7C1386F/CY7C1387F
SRAM
[1]
integrates 512 K × 36/1 M × 18 SRAM cells with
advanced synchronous peripheral circuitry and a two-bit counter
for internal burst operation. All synchronous inputs are gated by
registers controlled by a positive edge triggered clock input
(CLK). The synchronous inputs include all addresses, all data
inputs, address-pipelining chip enable (CE
1
), depth expansion
chip enables (CE
2
and CE
3 [2]
), burst control inputs (ADSC,
ADSP, and ADV), write enables (BW
X
, and BWE), and global
write (GW). Asynchronous inputs include the output enable (OE)
and the ZZ pin.
Addresses and chip enables are registered at rising edge of
clock when either address strobe processor (ADSP) or address
strobe controller (ADSC) are active. Subsequent burst
addresses can be internally generated as controlled by the
advance pin (ADV).
Address, data inputs, and write controls are registered on-chip
to initiate a self timed write cycle.This part supports byte write
operations (see
on page 4
and
Truth Table on page 11
for further
details). Write cycles can be one to four bytes wide as controlled
by the byte write control inputs. GW active LOW causes all bytes
to be written. This device incorporates an additional pipelined
enable register which delays turning off the output buffers an
additional cycle when a deselect is executed.This feature allows
depth expansion without penalizing system performance.
The
CY7C1386D/CY7C1387D/CY7C1386F/CY7C1387F
operates from a +3.3 V core power supply while all outputs
operate with a +3.3 V or +2.5 V supply. All inputs and outputs are
JEDEC-standard and JESD8-5-compatible.
Supports bus operation up to 250 MHz
Available speed grades are 250, 200, and 167 MHz
Registered inputs and outputs for pipelined operation
Optimal for performance (double-cycle deselect)
Depth expansion without wait state
3.3 V core power supply (V
DD
)
2.5 V or 3.3 V I/O power supply (V
DDQ)
Fast clock-to-output times
❐
2.6 ns (for 250 MHz device)
Provides high performance 3-1-1-1 access rate
User selectable burst counter supporting Intel
Pentium
Interleaved or linear burst sequences
Separate processor and controller address strobes
Synchronous self-timed writes
Asynchronous output enable
CY7C1386D/CY7C1387D available in JEDEC-standard
Pb-free 100-pin TQFP, Pb-free and non Pb-free 165-ball FBGA
package. CY7C1386F/CY7C1387F available in Pb-free and
non Pb-free 119-ball BGA package
IEEE 1149.1 JTAG-compatible boundary scan
ZZ sleep mode option
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum access time
Maximum operating current
Maximum CMOS standby current
250 MHz
2.6
350
70
200 MHz
3.0
300
70
167 MHz
3.4
275
70
Unit
ns
mA
mA
Notes
1. For best practices or recommendations, please refer to the Cypress application note
AN1064,
SRAM System Design Guidelines
on
www.cypress.com.
2. CE
3
and CE
2
are for 100-pin TQFP and 165-ball FBGA packages only. 119-ball BGA is offered only in Single Chip Enable.
Cypress Semiconductor Corporation
Document Number: 38-05545 Rev. *H
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised July 12, 2011
[+] Feedback
CY7C1386D, CY7C1386F
CY7C1387D, CY7C1387F

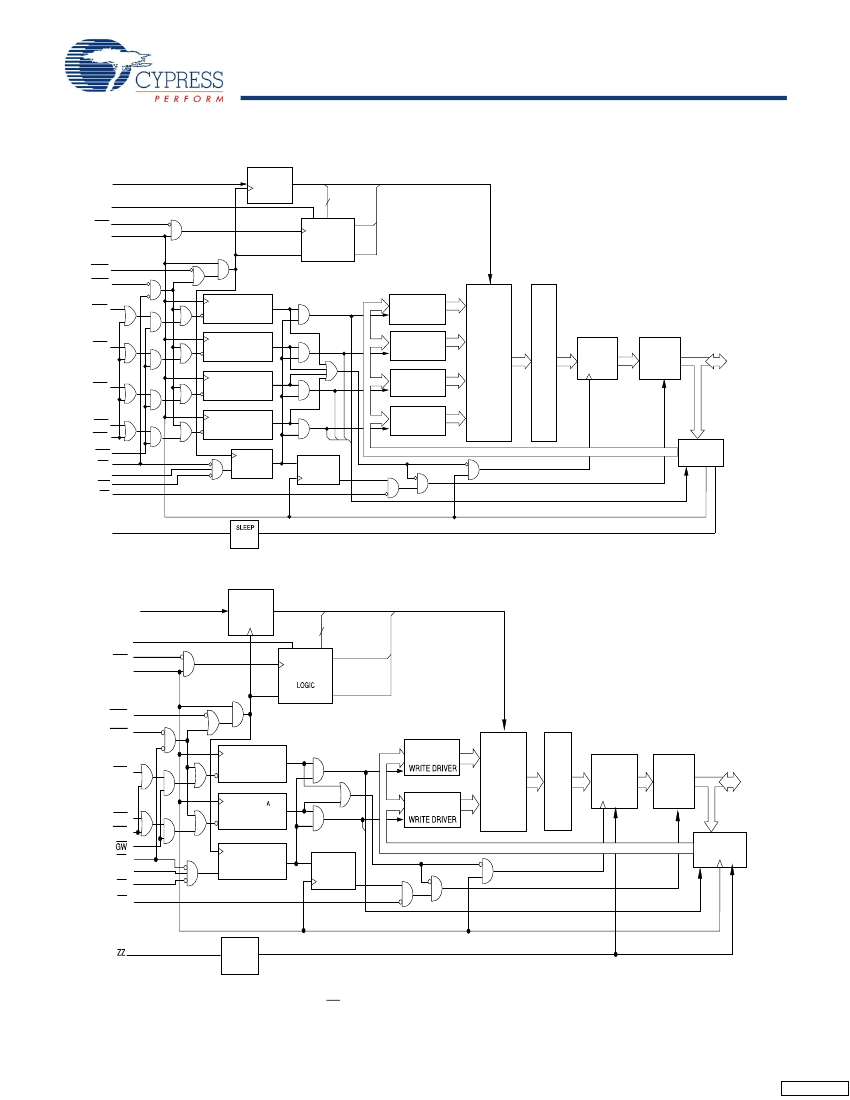

Logic Block Diagram – CY7C1386D/CY7C1386F
[3]
(512 K × 36)
A0,A1,A
ADDRESS
REGISTER
2 A[1:0]
MODE
ADV
CLK
BURST
LOGIC
Q1
COUNTER AND
CLR
ADSC
ADSP
BW
D
DQ
D,
DQP
D
BYTE
WRITE REGISTER
DQ
c
,DQP
C
BYTE
WRITE REGISTER
DQ
B
,DQP
B
BYTE
WRITE REGISTER
DQ
A,
DQP
A
BYTE
WRITE REGISTER
ENABLE
REGISTER
Q0
DQ
D,
DQP
D
BYTE
WRITE DRIVER
DQ
c
,DQP
C
BYTE
WRITE DRIVER
DQ
B
,DQP
B
BYTE
WRITE DRIVER
DQ
A,
DQP
A
BYTE
WRITE DRIVER
MEMORY
ARRAY
SENSE
AMPS
BW
C
OUTPUT
REGISTERS
OUTPUT
BUFFERS
E
BW
B
DQs
DQP
A
DQP
B
DQP
C
DQP
D
BW
A
BWE
GW
CE
1
CE
2
CE
3
OE
PIPELINED
ENABLE
INPUT
REGISTERS
ZZ
CONTROL
Logic Block Diagram – CY7C1387D/CY7C1387F
[3]
(1 M × 18)
A0, A1, A
ADDRESS
REGISTER
2
A
[1:0]
MODE
ADV
CLK
Q1
BURST
COUNTER AND
CLR
Q0
ADSC
ADSP
DQ
B,
DQP
B
BYTE
WRITE REGISTER
DQ
A ,
DQP
BYTE
WRITE REGISTER
ENABLE
REGISTER
DQ
B ,
DQP
B
BYTE
MEMORY
ARRAY
SENSE
AMPS
BW
B
OUTPUT
REGISTERS
OUTPUT
BUFFERS
E
DQ
A,
DQP
A
BYTE
DQ
s,
DQP
A
DQP
B
BW
A
BWE
CE
1
CE
2
CE
3
OE
PIPELINED
ENABLE
INPUT
REGISTERS
SLEEP
CONTROL
Note
3. CY7C1386F and CY7C1387F have only 1 Chip Enable (CE
1
).
Document Number: 38-05545 Rev. *H
Page 2 of 36
[+] Feedback
CY7C1386D, CY7C1386F
CY7C1387D, CY7C1387F
Contents
Pin Configurations ........................................................... 4
Pin Definitions .................................................................. 7
Functional Overview ........................................................ 8
Single Read Accesses ................................................ 8
Single Write Accesses Initiated by ADSP ................... 9
Single Write Accesses Initiated by ADSC ................... 9
Burst Sequences ......................................................... 9
Sleep Mode ................................................................. 9
Interleaved Burst Address Table
(MODE = Floating or VDD) ............................................... 10
Linear Burst Address Table (MODE = GND) ............. 10
ZZ Mode Electrical Characteristics ............................ 10
Truth Table ...................................................................... 11
Truth Table for Read/Write ............................................ 12
Truth Table for Read/Write ............................................ 12
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 13
Disabling the JTAG Feature ...................................... 13
Test Access Port (TAP) ............................................. 13
PERFORMING A TAP RESET .................................. 13
TAP REGISTERS ...................................................... 13
TAP Instruction Set ................................................... 13
TAP Controller State Diagram ....................................... 15
TAP Controller Block Diagram ...................................... 15
TAP Timing Diagram ...................................................... 15
TAP AC Switching Characteristics ............................... 16
3.3 V TAP AC Test Conditions ....................................... 17
3.3 V TAP AC Output Load Equivalent ......................... 17
2.5 V TAP AC Test Conditions ....................................... 17
2.5 V TAP AC Output Load Equivalent ......................... 17
TAP DC Electrical Characteristics and
Operating Conditions ..................................................... 17
Identification Register Definitions ................................ 18
Scan Register Sizes ....................................................... 18
Identification Codes ....................................................... 18
Boundary Scan Order .................................................... 19
Boundary Scan Order .................................................... 20
Maximum Ratings ........................................................... 21
Operating Range ............................................................. 21
Electrical Characteristics ............................................... 21
Capacitance .................................................................... 22
Thermal Resistance ........................................................ 22
AC Test Loads and Waveforms ..................................... 23
Switching Characteristics .............................................. 24
Switching Waveforms .................................................... 25
Ordering Information ...................................................... 29
Ordering Code Definitions ......................................... 29
Package Diagrams .......................................................... 30
Acronyms ........................................................................ 33
Document Conventions ................................................. 33
Units of Measure ....................................................... 33
Document History Page ................................................. 34
Sales, Solutions, and Legal Information ...................... 36
Worldwide Sales and Design Support ....................... 36
Products .................................................................... 36
PSoC Solutions ......................................................... 36
Document Number: 38-05545 Rev. *H
Page 3 of 36
[+] Feedback
CY7C1386D, CY7C1386F
CY7C1387D, CY7C1387F
Pin Configurations
Figure 1. 100-pin TQFP (3 Chip Enable)
A
A
CE
1
CE
2
BW
D
BW
C
BW
B
BW
A
CE
3
V
DD
V
SS
CLK
GW
BWE
OE
ADSC
ADSP
ADV
A
A
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
DQP
C
DQ
C
DQ
C
V
DDQ
V
SSQ
DQ
C
DQ
C
DQ
C
DQ
C
V
SSQ
V
DDQ
DQ
C
DQ
C
NC
V
DD
NC
V
SS
DQ
D
DQ
D
V
DDQ
V
SSQ
DQ
D
DQ
D
DQ
D
DQ
D
V
SSQ
V
DDQ
DQ
D
DQ
D
DQP
D
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CY7C1386D
(512 K × 36)
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
DQP
B
DQ
B
DQ
B
V
DDQ
V
SSQ
DQ
B
DQ
B
DQ
B
DQ
B
V
SSQ
V
DDQ
DQ
B
DQ
B
V
SS
NC
V
DD
ZZ
DQ
A
DQ
A
V
DDQ
V
SSQ
DQ
A
DQ
A
DQ
A
DQ
A
V
SSQ
V
DDQ
DQ
A
DQ
A
DQP
A
NC
NC
NC
V
DDQ
V
SSQ
NC
NC
DQ
B
DQ
B
V
SSQ
V
DDQ
DQ
B
DQ
B
NC
V
DD
NC
V
SS
DQ
B
DQ
B
V
DDQ
V
SSQ
DQ
B
DQ
B
DQP
B
NC
V
SSQ
V
DDQ
NC
NC
NC
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
A
A
CE
1
CE
2
NC
NC
BW
B
BW
A
CE
3
V
DD
V
SS
CLK
GW
BWE
OE
ADSC
ADSP
ADV
A
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CY7C1387D
(1 M × 18)
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
A
NC
NC
V
DDQ
V
SSQ
NC
DQP
A
DQ
A
DQ
A
V
SSQ
V
DDQ
DQ
A
DQ
A
V
SS
NC
V
DD
ZZ
DQ
A
DQ
A
V
DDQ
V
SSQ
DQ
A
DQ
A
NC
NC
V
SSQ
V
DDQ
NC
NC
NC
MODE
A
A
A
A
A
1
A
0
NC/72M
NC/36M
V
SS
V
DD
A
A
A
A
A
A
A
A
A
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Document Number: 38-05545 Rev. *H
MODE
A
A
A
A
A
1
A
0
NC/72M
NC/36M
V
SS
V
DD
A
A
A
A
A
A
A
A
A
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Page 4 of 36
[+] Feedback
CY7C1386D, CY7C1386F
CY7C1387D, CY7C1387F
Pin Configurations
(continued)
Figure 2. 119-ball BGA (1 Chip Enable)
CY7C1386F (512 K × 36)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
DDQ
NC/288M
NC/144M
DQ
C
DQ
C
V
DDQ
DQ
C
DQ
C
V
DDQ
DQ
D
DQ
D
V
DDQ
DQ
D
DQ
D
NC
NC
V
DDQ
2
A
A
A
DQP
C
DQ
C
DQ
C
DQ
C
DQ
C
V
DD
DQ
D
DQ
D
DQ
D
DQ
D
DQP
D
A
NC/72M
TMS
3
A
A
A
V
SS
V
SS
V
SS
BW
C
V
SS
NC
V
SS
BW
D
V
SS
V
SS
V
SS
MODE
A
TDI
4
ADSP
ADSC
V
DD
NC
CE
1
OE
ADV
GW
V
DD
CLK
NC
BWE
A1
A0
V
DD
A
TCK
5
A
A
A
V
SS
V
SS
V
SS
BW
B
V
SS
NC
V
SS
BW
A
V
SS
V
SS
V
SS
NC
A
TDO
6
A
A
A
DQP
B
DQ
B
DQ
B
DQ
B
DQ
B
V
DD
DQ
A
DQ
A
DQ
A
DQ
A
DQP
A
A
NC/36M
NC
7
V
DDQ
NC/576M
NC/1G
DQ
B
DQ
B
V
DDQ
DQ
B
DQ
B
V
DDQ
DQ
A
DQ
A
V
DDQ
DQ
A
DQ
A
NC
ZZ
V
DDQ
CY7C1387F (1 M × 18)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
DDQ
NC/288M
NC/144M
DQ
B
NC
V
DDQ
NC
DQ
B
V
DDQ
NC
DQ
B
V
DDQ
DQ
B
NC
NC
NC/72M
V
DDQ
2
A
A
A
NC
DQ
B
NC
DQ
B
NC
V
DD
DQ
B
NC
DQ
B
NC
DQP
B
A
A
TMS
3
A
A
A
V
SS
V
SS
V
SS
BW
B
V
SS
NC
V
SS
NC
V
SS
V
SS
V
SS
MODE
A
TDI
4
ADSP
ADSC
V
DD
NC
CE
1
OE
ADV
GW
V
DD
CLK
NC
BWE
A1
A0
V
DD
NC/36M
TCK
5
A
A
A
V
SS
V
SS
V
SS
NC
V
SS
NC
V
SS
BW
A
V
SS
V
SS
V
SS
NC
A
TDO
6
A
A
A
DQP
A
NC
DQ
A
NC
DQ
A
V
DD
NC
DQ
A
NC
DQ
A
NC
A
A
NC
7
V
DDQ
NC/576M
NC/1G
NC
DQ
A
V
DDQ
DQ
A
NC
V
DDQ
DQ
A
NC
V
DDQ
NC
DQ
A
NC
ZZ
V
DDQ
Document Number: 38-05545 Rev. *H
Page 5 of 36
[+] Feedback
京公网安备 11010802033920号
EEWORLD
