1-103291-1 datasheet, PDF - EEWORLD Datasheet

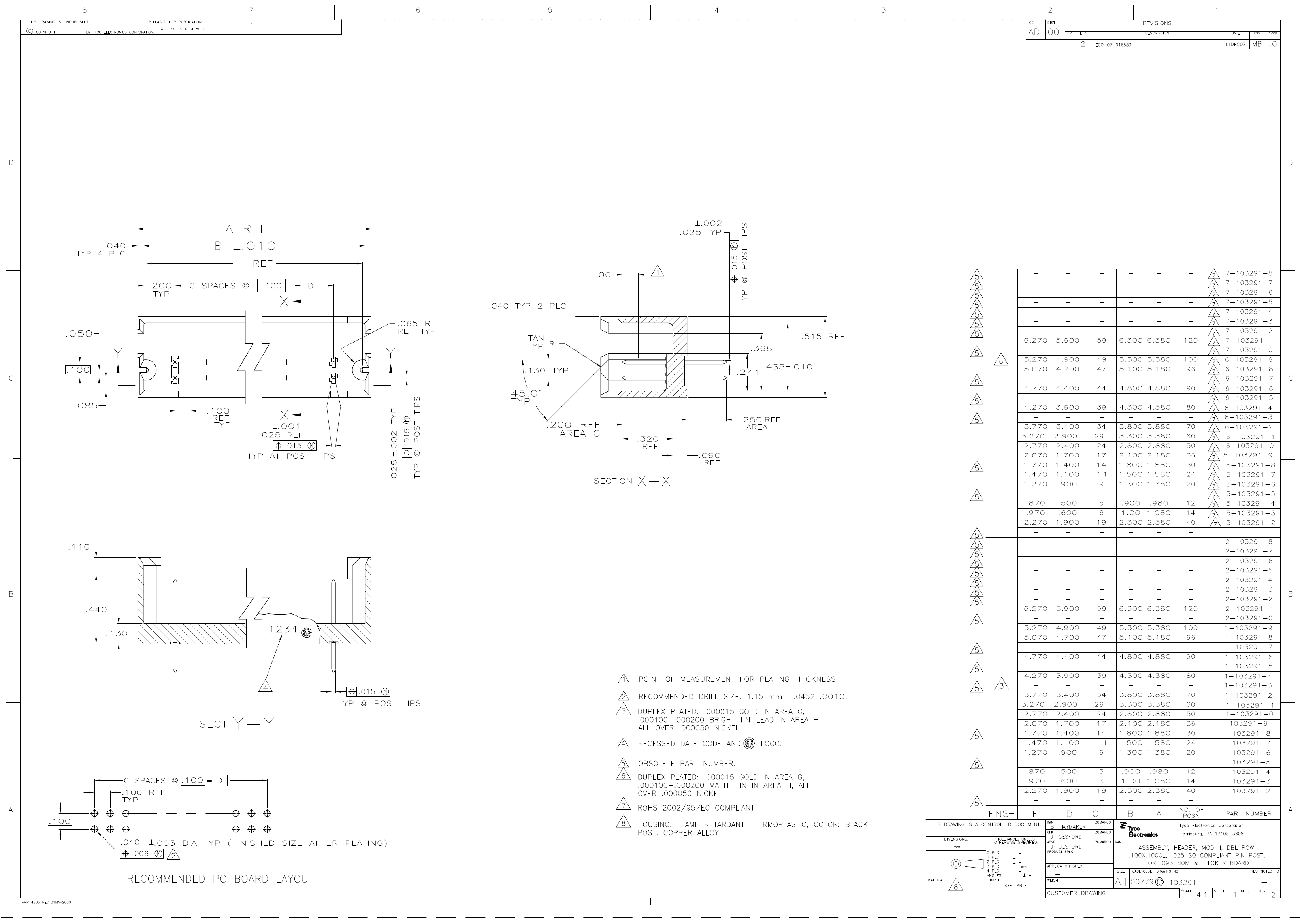

1-103291-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-103291-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITH PRESS-FIT CNTS,GUIDE PINS
body width	0.515 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	75 Cycles
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	103291
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE PIN
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	HOUSING SIDE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	60
Evacuation force-minimum value	.2085 N
Base Number Matches	1
