078345396806023: DescriptionCONNECTOR, 96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE; CategoryThe connector The connector; File Size671KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

078345396806023 Overview

CONNECTOR, 96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE

078345396806023 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8345
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

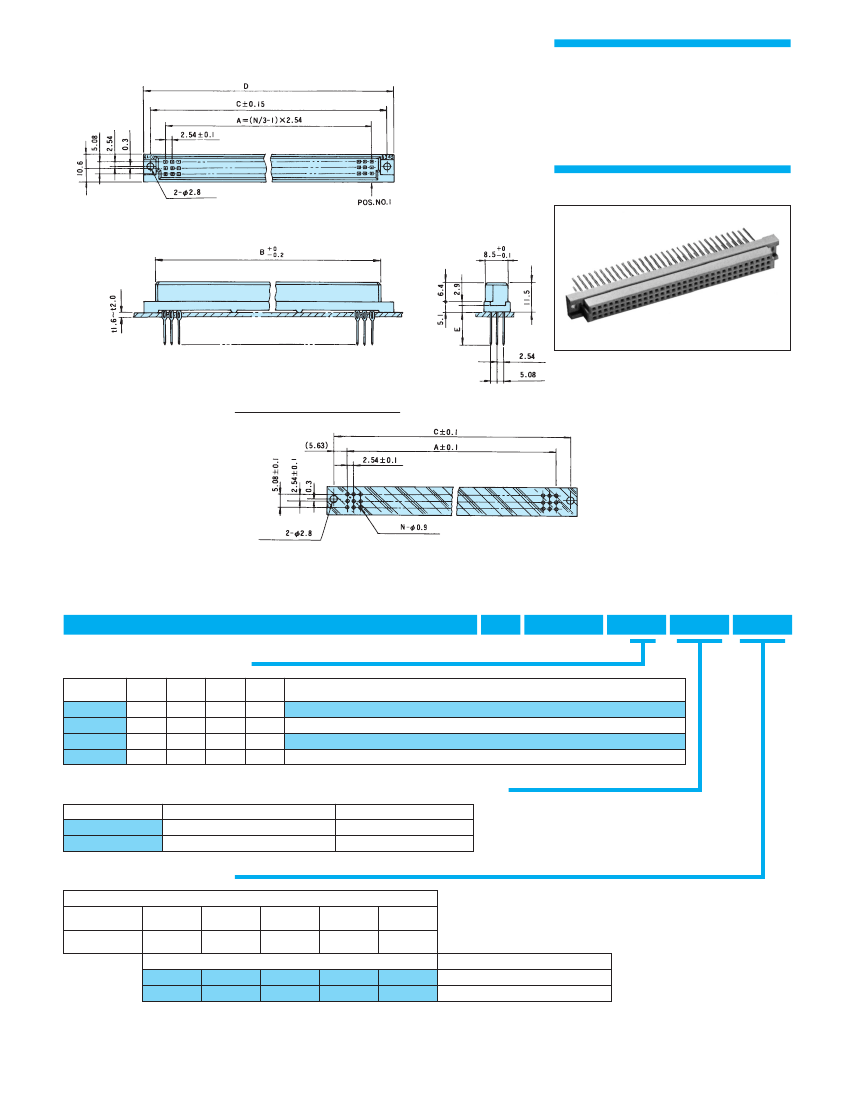

SERIES

ネジ取付½½

Screw position

8345

プレスフィット

DIN-Cタイプリセプタクル3列

Press-fit

DIN-C type 3-row receptacle

推奨取付寸法

Recommended mounting dimensions

c列 Row

c

b列 Row

b

a列 Row

a

a列 Row

a

b列 Row

b

c列 Row

c

フランジなしも用意しています。

No flange type is also available.

スルーホール仕様については、P.3の「プレスフィットタイプ適用スルーホール」の項をご参照ください。

For specifications of through hole, please refer to “Applicable through hole” in the table of “Press-fitting type” on page 3.

注文コード

/Ordering

code

型番構成/

Part number

07

8345

3XX

80X

0XX

極数

/Number

of positions

極数/Number

of positions

32

A

38.10

78.74

B

44.36

85.00

C

49.36

90.00

D

備考/Remarks

48

64

96

54.36 48極のa、

c列実装、

注文コー

ドは48/Pins

are inserted into rows a and c of the insulator for 48-positions connector Ordering code is 48

54.36

95.00 96極のa、

c列実装、

注文コー

ドは96/Pins

are inserted into rows a and c of the insulator for 96-positions connector Ordering code is 96

95.00

適用基板厚

/

テール½状

/Applidable

board thickness/Tail shape

コー

ドNO.

/Code

No.

適用基板厚/Applicable

board thickness

テール長さ＝E/Tail

length=E

1.6±0.15∼3.2±0.2

804

13.0

806

1.6±0.15∼3.2±0.2

3.5

バリエーション

/Variation

0.76

接触部/

金/Gold

Contacting area

ポス

/

ト部

ハンダ/Solder ハンダ/Solder ハンダ/Solder ハンダ/Solder

Post area

バリエーシンコー

/Variation

code

ョ

ド

013

023

033

043

014

024

034

044

メッキ

μm

/Plating

(

μ

m)

0.1

0.25

0.5

金/Gold

0.25

金/Gold

0.25

金/Gold

コンタク

ト実装/Mounting

contacts

063

＊

064

＊

全列実装/All

rows are filled

a＋c列実装/Row

a and c are filled

＊ E＝13mmのみ適用

＊

Applicable only for E=13mm

※鉛フリーめっきは型番最後尾に＋が付きます。詳しくは営業にお問い合わせください。

For the lead-free plated type, “+” is added to the end of each part number. For details, please consult the sales representative.
