057-014-053V datasheet, PDF - EEWORLD Datasheet

057-014-053V: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

057-014-053V Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator

Parameter Name	Attribute value
Maker	PANCON CONNECTORS
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.347 inch
subject depth	0.525 inch
body length	1 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Insulator color	GRAY
Manufacturer's serial number	057
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Base Number Matches	1

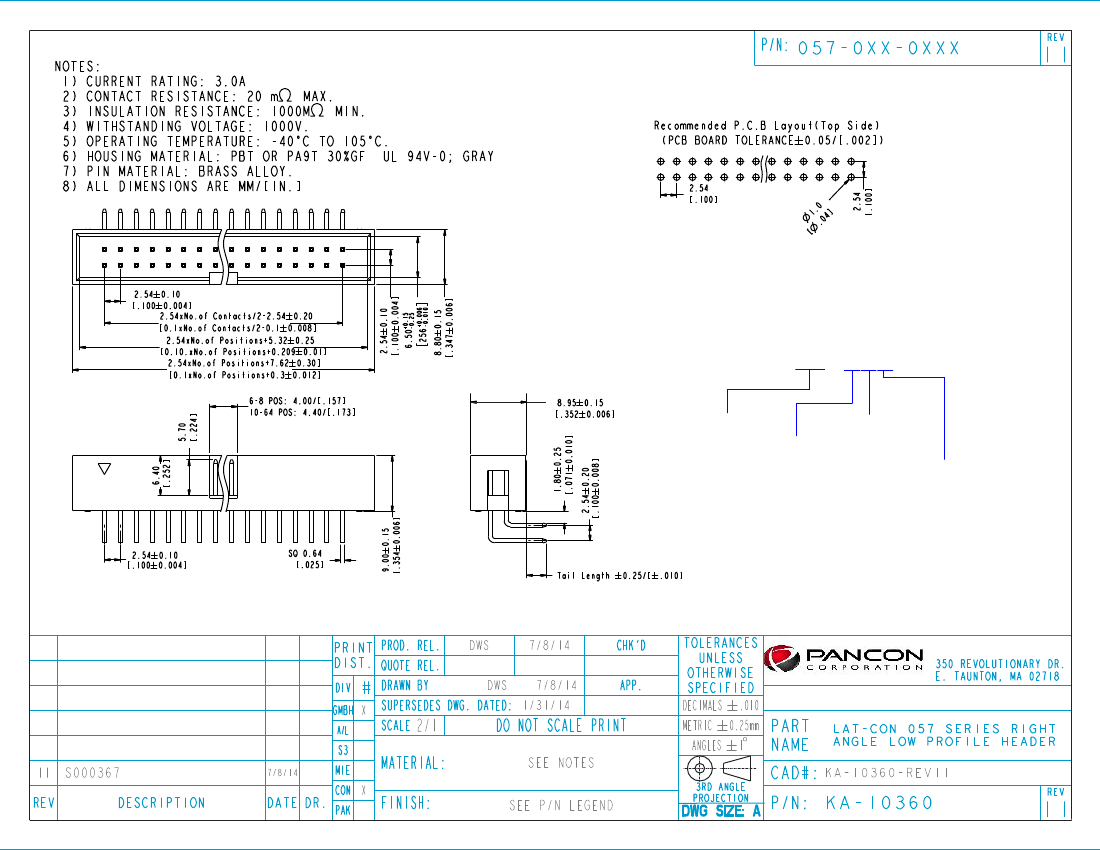

P/N LEGEND

057-0XX-0XXX

Tail Length

No. of Pins

2 = 4.5/[.177]

Performance

3 = 2.9/ [.114]

3 = Class A:

250 Mating Cycles

4 = Gold Flash

5 = Class D:

50 Mating Cycles

Packaging

Blank = Trays

T = Tubes

U = Reel with Cap

V = Tube with Cap
