REF : 20090825-B
PROD.
NAME
SPECIFICATION FOR APPROVAL
ABC'S DWG No.
ABC'S ITEM No.
HP1205□□□□2□-□□□
PAGE: 1
SHIELDED SMD
POWER INDUCTOR
Ⅰ﹒MECHANICAL
DIMENSIONS：
A : 13.5
±
0.4
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
1R0
B : 12.5
±
0.3
C : 4.00
±
0.3
D : 5.00 max.
E
E : 2.00
±
0.5
F : 5.00
typ.
C
B
D
Marking
( White )
Inductance code
A
G : 8.00 typ.
H : 14.0 typ.
F
G
H
( PCB Pattern )
Ⅱ﹒SCHEMATIC
DIAGRAM：
1
2
a
b
c
Ⅲ﹒MATERIALS
LIST：
a﹒Core：Iron powder
b﹒Wire：Enamelled copper wire
c﹒Cilp：Cu / Ni /Sn
d﹒Remark：Products comply with RoHS'
requirements
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area Forced Cooling Area
+2.0 ~ 4.0
℃
-(1.0 ~ 5.0)
℃
/ sec max.
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Storage temp.：-55℃ ~ +125℃
b﹒Operating temp .：-55℃ ~ +125℃
( Temp. rise included )
c﹒Resistance to solder heat：260℃. 10 secs.
Temperature (
℃
)
250
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090825-B
PROD.
NAME
PAGE: 2
ABC'S DWG No.
ABC'S ITEM No.
HP1205□□□□2□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅴ﹒ELECTRICAL
CHARACTERISTICS：
RDC
( mΩ )
max.
typ.
0.6
0.8
1.1
1.3
1.5
1.7
2.3
2.5
4.0
5.0
5.5
9.0
15.0
16.5
18.5
20.5
22.5
25.5
0.55
0.65
0.90
1.10
1.30
1.50
2.00
2.30
3.50
4.50
5.00
8.00
13.00
14.00
15.50
17.50
19.00
21.50
DWG No.
HP1205R10M2□-□□□
HP1205R22M2□-□□□
HP1205R33M2□-□□□
HP1205R47M2□-□□□
HP1205R56M2□-□□□
HP1205R68M2□-□□□
HP1205R82M2□-□□□
HP12051R0M2□-□□□
HP12051R5M2□-□□□
HP12051R8M2□-□□□
HP12052R2M2□-□□□
HP12053R3M2□-□□□
HP12054R7M2□-□□□
HP12055R6M2□-□□□
HP12056R8M2□-□□□
HP12057R8M2□-□□□
HP12058R2M2□-□□□
HP1205100M2□-□□□
Inductance
L (
μH
)
0.10
±
20
％
0.22
±
20
％
0.33
±
20
％
0.47
±
20
％
0.56
±
20
％
0.68
±
20
％
0.82
±
20
％
1.00
±
20
％
1.50
±
20
％
1.80
±
20
％
2.20
±
20
％
3.30
±
20
％
4.70
±
20
％
5.60
±
20
％
6.80
±
20
％
7.80
±
20
％
8.20
±
20
％
10.0
±
20
％
Isat(A)
typ.
118.0
110.0
80.0
65.0
55.0
54.0
53.0
50.0
48.0
40.0
32.0
32.0
27.0
22.0
21.0
18.0
18.0
16.0
B：Taping Reel
Irms(A)
typ.
55.0
51.0
42.0
38.0
36.0
34.0
31.0
29.0
23.0
19.0
17.0
15.0
12.0
11.5
11.0
10.0
9.5
9.0
1).
□：Packaging
information
…
A：Bulk
2). "-
□□□
":Reference code
3). Measured frequency of inductance is 100 KHz / 0.25V
4). Isat base on inductance drop 20% typ. of L value at 20℃
5). Irms base on temp. rise 40
℃
typ.
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090825-B
PROD.
NAME
PAGE: 3
ABC'S DWG No.
ABC'S ITEM No.
HP1205□□□□2□-□□□
SHIELDED SMD
POWER INDUCTOR

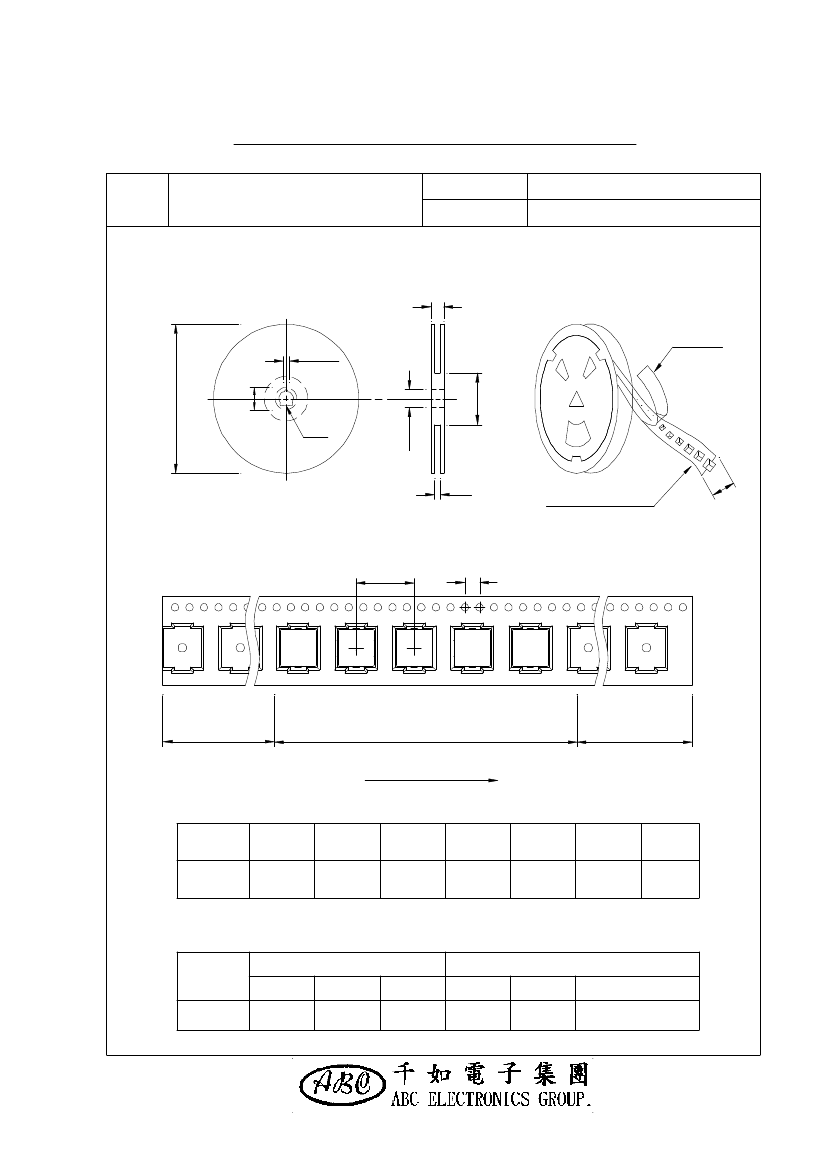

Ⅵ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover Tape
2.0±0.5
A
B
∮
C
∮
C
N
G
D
Embossed carrier
※
Carrier tape width : D
P:16 m/m
End
4 m/m
Start
1R0
1R0
1R0
1R0
1R0
Leader
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
50
-0
Unit:m/m
T
30.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
G.W. (Kg)
Size (cm)
Outer : Carton
HP1205
700
3,400
13 - 24
2,800
15.0
40 x 40 x 24
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090825-B
PROD.
NAME
PAGE: 4
ABC'S DWG No.
ABC'S ITEM No.
HP1205□□□□2□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅶ﹒DWGING
NUMBER EXPRESSION：
H
P
1
2
0
5
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D
700
pcs
Remark
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20090825-B
PROD.
NAME
PAGE: 5
ABC'S DWG No.
ABC'S ITEM No.
HP1205□□□□2□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
Test condition
Preconditioning: 150
℃
/16Hrs±30min Dry Bake
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. :245±5℃
Flux : Rosin
Dip time: 5±0.5sec
Solderability
More than 95% of the
terminal electrode
Shall be covered
With fresh solder.
Thermal shock test
( Temp. cycle )
Electrical oharacteristics shall
not change more
than
±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-55
℃
30 minutes
+125
℃
30 minutes
Humidity Test
Temperature : 40±2℃
Humidity : 90±5%
Time : 1000 hours
High temp.
Resistance test
Temperature : 125±5℃
Applied current : Per spec.
Time : 96 hours
AR-001A
