1N3154A-1: DescriptionZener Diode, 8.4V V(Z), 4.76%, 0.5W, Silicon, DO-35, HERMETIC SEALED, DO-35, 2 PIN; CategoryDiscrete semiconductor diode; File Size97KB，2 Pages; ManufacturerCompensated Devices Inc.

Download Datasheet Parametric View All

1N3154A-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N3154A-1	-	-	View	Buy Now

1N3154A-1 Overview

Zener Diode, 8.4V V(Z), 4.76%, 0.5W, Silicon, DO-35, HERMETIC SEALED, DO-35, 2 PIN

1N3154A-1 Parametric

Parameter Name	Attribute value
Maker	Compensated Devices Inc.
package instruction	HERMETIC SEALED, DO-35, 2 PIN
Reach Compliance Code	unknown
Is Samacsys	N
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	8.4 V
surface mount	NO
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Voltage temperatureCoeff-Max	0.84 mV/°C
Maximum voltage tolerance	4.76%
Base Number Matches	1

Preview

Download Datasheet

View All

• 1N3154-1 THRU 1N3157-1 AVAILABLE IN

JAN, JANTX, JANTXV

1N3154 thru 1N3157A

and

1N3154-1 thru 1N3157A-1

AND JANS

PER MIL-PRF-19500/158

• 8.4 V0LT NOMINAL ZENER VOLTAGE

• TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

• METALLURGICALLY BONDED

MAXIMUM RATINGS

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

DC Power Dissipation: 500mW @ +50°C

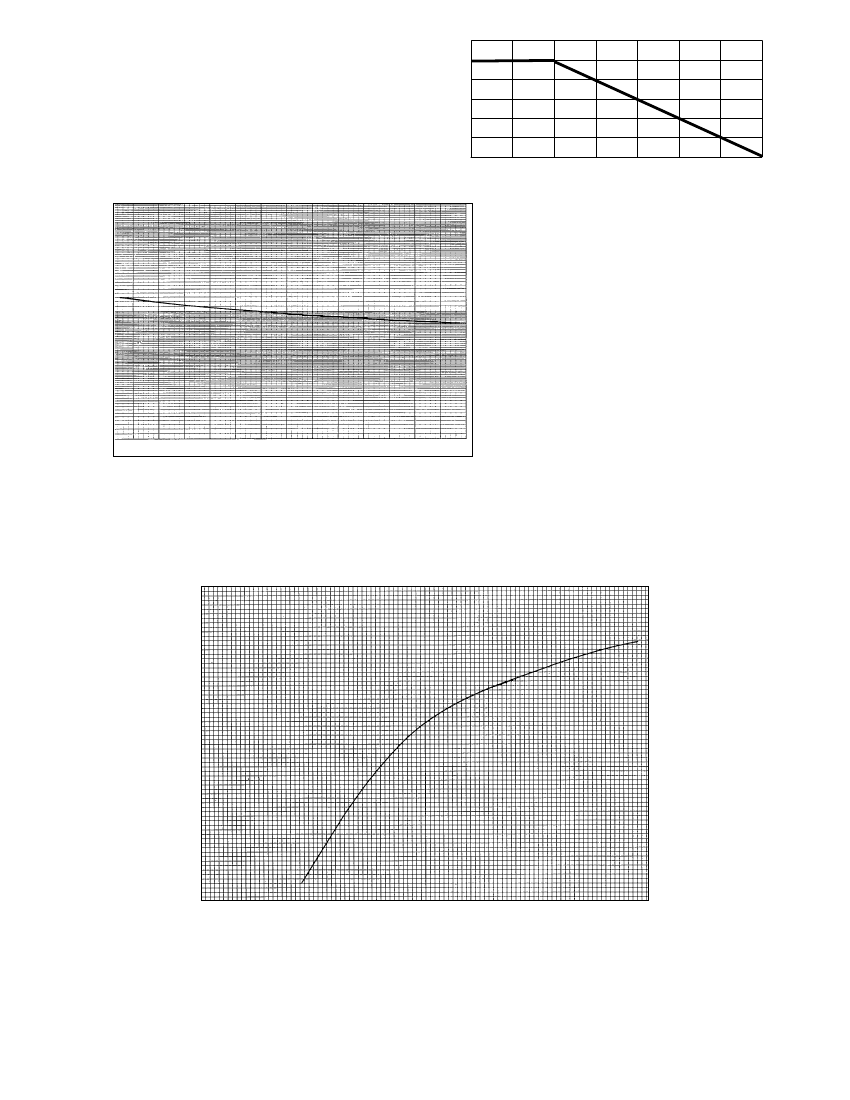

Power Derating: 4 mW / °C above +50°C

REVERSE LEAKAGE CURRENT

l

R

= 10

µ

A @ 25°C & V

R

= 5.5Vdc

ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise speciﬁed.

JEDEC

TYPE

NUMBER

ZENER

VOLTAGE

v @I

z

ZT

ZENER

TEST

CURRENT

I

ZT

MAXIMUM

VOLTAGE

TEMPERATURE

ZENER

TEMPERATURE

RANGE

IMPEDANCE

STABILITY

ZZT

∆V

ZT

MAXIMUM

(Note 1)

(Note 2)

mV

130

172

65

86

26

34

13

17

°C

-55 to +100

-55 to +150

-55 to +100

-55 to +150

-55 to +100

-55 to +150

-55 to +100

-55 to +150

EFFECTIVE

TEMPERATURE

COEFFICIENT

FIGURE 1

% / °C

.01

.005

.002

.001

VOLTS

1N3154

1N3154A

1N3155

1N3155A

1N3156

1N3156A

1N3157

1N3157A

8.00—8.80

mA

10

OHMS

15

DESIGN DATA

CASE:

Hermetically sealed glass

case. DO – 35 outline.

LEAD MATERIAL:

Copper clad steel.

LEAD FINISH:

Tin / Lead

POLARITY:

Diode to be operated with

the banded (cathode) end positive.

NOTE 1

Zener impedance is derived by superimposing on lZT A 60Hz rms a.c. current

equal to 10% of lZT.

The maximum allowable change observed over the entire temperature range i.e.,

the diode voltage will not exceed the speciﬁed mV at any discrete temperature

between the established limits, per JEDEC standard No.5.

MOUNTING POSITION:

ANY.

NOTE 2

22 COREY STREET, MELROSE, MASSACHUSETTS 02176

PHONE (781) 665-1071

FAX (781) 665-7379

WEBSITE: http://www.cdi-diodes.com

E-mail: mail@cdi-diodes.com
