P/N: VP2014 LF DATA SHEET
Feature
IEEE 802.3af/ANSI X3.263 compliant performance.
350mA current capability.
Designed for IP phone or switch applications.
Compact footprint.
Lead free for external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
TX
VP2014 LF
1CT:1
Turns Ratio
(±5%)
RX
1CT:1CT
30MHz
-45
Cross talk
(dB Min)
60MHz
-40
100MHz
-35
1500
HI-POT
(Vrms)
Page : 1/2
Continue
Insertion
Part
Number
Loss
(dB Max)
1-100MHz
VP2014 LF
-1.2
1-30MHz
-16
Return Loss
(dB Min)
40MHz
-14
50MHz
-13
60-80MHz
-12
30 MHz
-43
DCMR
(dB Min)
60MHz
-37
100MHz
-33

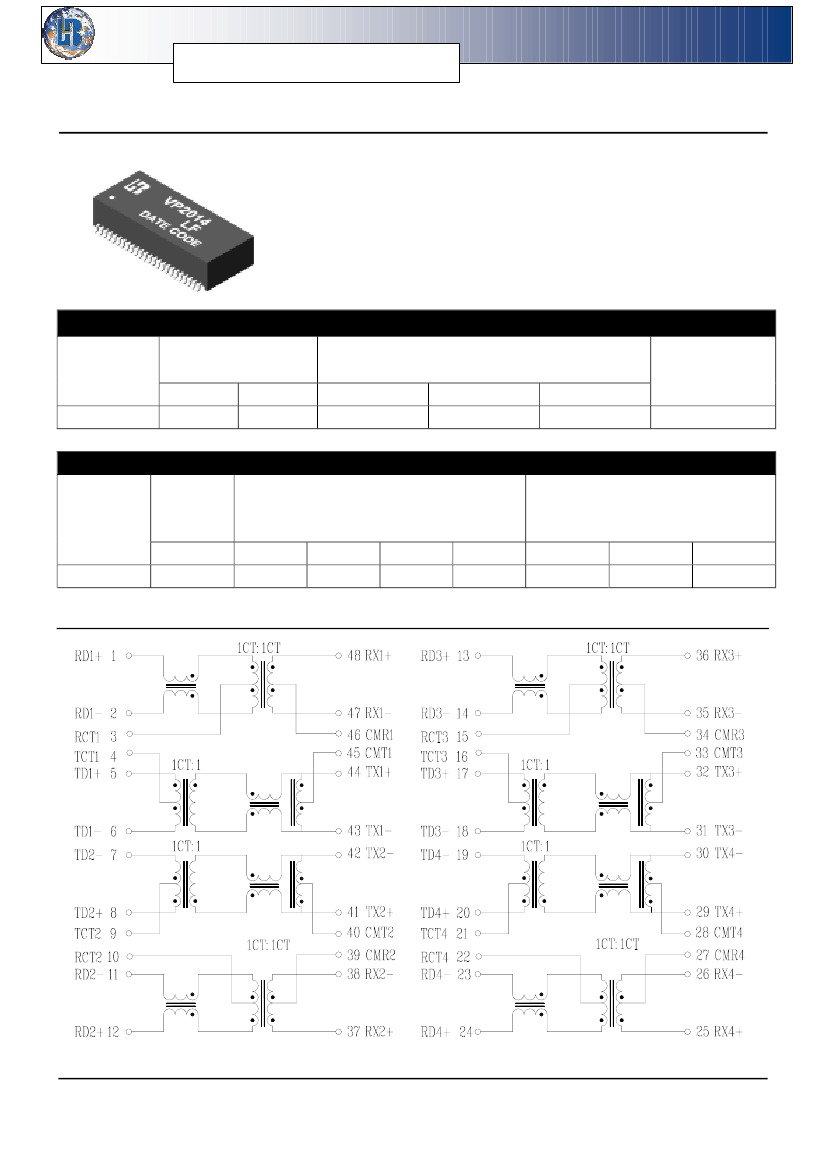

Schematic
