100-096-033: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

100-096-033 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,

100-096-033 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PANCON CONNECTORS
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.44 inch
subject depth	0.71 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

Preview

Download Datasheet

View All

The reproduction, transmission or use of this document or its contents is not

permitted without express written authority. Offenders will be liable for

damages. All rights, including rights created by patent grant or registration

of an utility model or design, are reserved.

1

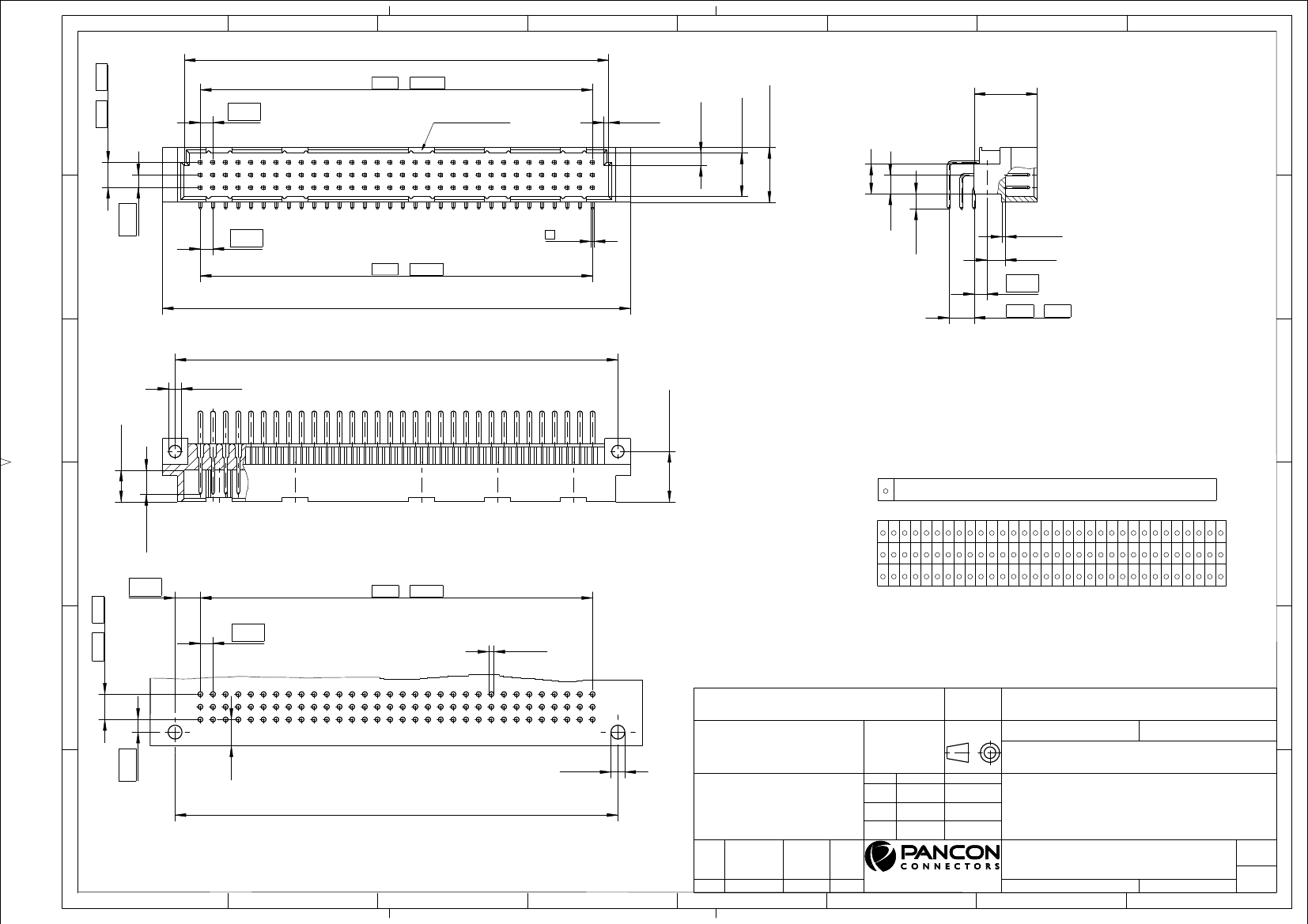

2x 2.54 = 5.08

2

85.2+0.2

3

4

5

6

7

8

2.54

polarization

1-0.1

c

b

a

2.5-0.2

8.7+0.1

A

11.1 max.

31x 2.54 = 78.74

(12.65)

A

6

3.85

2.54

B

2.54

31x 2.54 = 78.74

94 max.

0.6

3±0.2

0.7±0.1

3.7+0.1

2.54

2x 2.54 = 5.08

B

88.9±0.1

6.4-0.1

10.1±0.1

C

2.5 min.

C

Weitergabe sowie Vervielfaeltigung dieser Unterlage, Verwertung und Mitteilung

ihres Inhalts nicht gestattet, soweit nicht ausdruecklich zugestanden. Zuwider-

fuer den Fall der Patenterteilung oder GM-Eintragung.

100-096-033 C96M a,b,c

dip-solder 3mm class 2

Standard Kontakt / Standard Contact (4.9mm)

4.9±0.1

D

5.08

2x 2.54 = 5.08

31x 2.54 = 78.74

2.54

c

b

a

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

D

1±0.1

E

All data subject to amendment without notice

c

b

a

32

1

wird verwendet in / USED IN:

3D-CAD-MODELLNAME:

E

unverbindlich!

WITHOUT OBLIGATION!

IMPORT DRW

FILETYPE:

DXF

-

GENERAL TOLERANCES

Dateiname Zeichnung / FILENAME DRAWING:

C-100-096-033

Maßstab:

SCALE

Einheit/UNIT

Allgemeintoleranzen

mm

NAME

DO NOT SCALE

VOLUME:

Gewicht/WEIGHT:

2.54

5.3

2.8+0.1

Bemerkungen / REMARKS

MATERIAL: -

Oberfl./FINISH: -

EUROPEAN PROJECTION

DATE

erstellt

DRAWN BY

Benennung/TITLE

09.09.09 C.SCHANK

09.09.09

ROK

RAS

F

88.9±0.1

KUNDENZEICHNUNG

CUSTOMER DRAWING

geprueft

CHECKED

Freigabe

RELEASED

DIN HEADER, Type C, angled, class 2

96 contacts, solder pin 3.0mm

F

Zeichnungsnummer/DRAWING-NO.

Blatt

SHT.

von

OF

1

2

3

4

REV.

1951

Aenderung/ECN

09.09.09 RAS

DATE

NAME

www.pancon.de / GERMANY

www.panconconnectors.com / USA

5

6

Project:

HICON

C-100-096-033

7

1

Format:

A3

8
