AXH016A0X3-SR12

Description
1-OUTPUT DC-DC REG PWR SUPPLY MODULE
Categoryaccessories
File Size677KB,21 Pages
Manufacturerineage Power ( GE )
Websitehttp://www.geindustrial.com
Download Datasheet Compare View All

AXH016A0X3-SR12 Overview

1-OUTPUT DC-DC REG PWR SUPPLY MODULE

Data Sheet
August 12, 2008

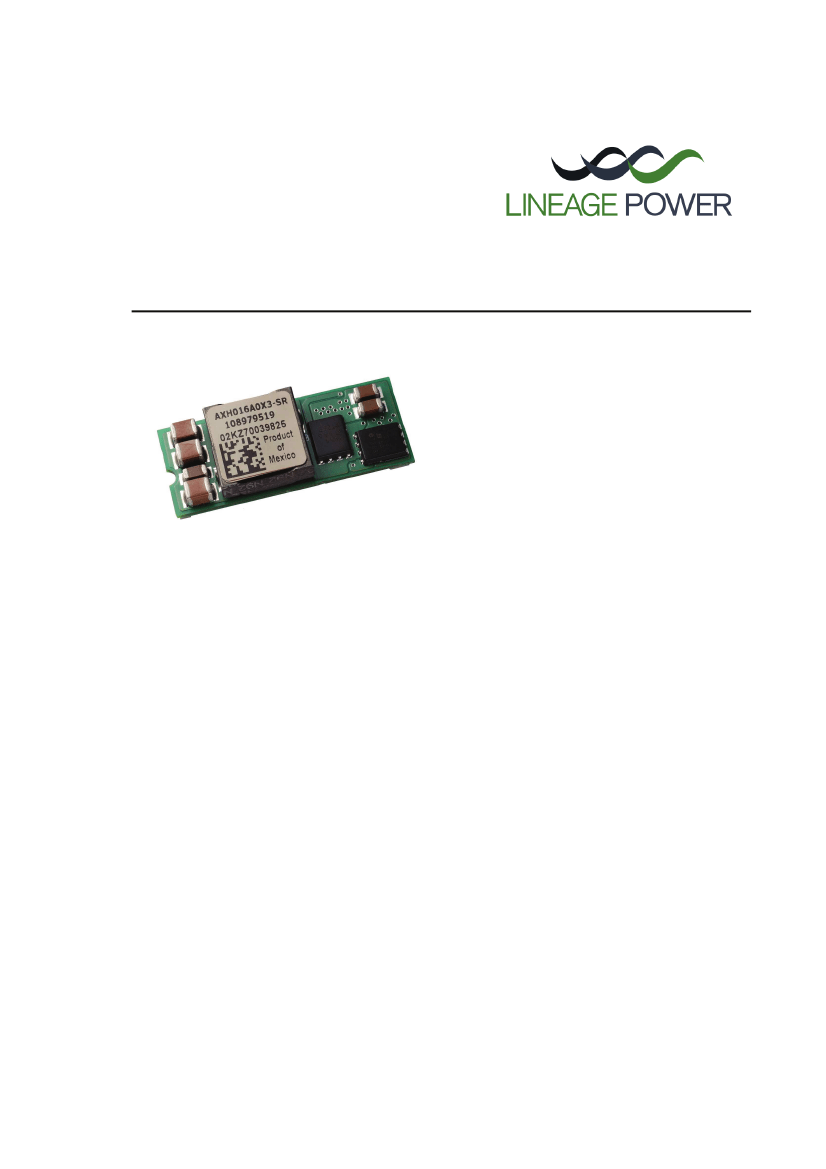

Austin SuperLynx
TM
SMT Non-isolated Power Modules:
3.0Vdc – 5.5Vdc input; 0.75Vdc to 3.63Vdc Output; 16A Output Current
RoHS Compliant
Features
Compliant to RoHS EU Directive 2002/95/EC (-
Z versions)
Compliant to ROHS EU Directive 2002/95/EC
with lead solder exemption (non-Z versions)
Delivers up to 16A of output current
High efficiency – 95% at 3.3V full load (V
IN
=
5.0V)
Small size and low profile:
33.00 mm x 13.46 mm x 8.28 mm
(1.300 in x 0.530 in x 0.326 in)
Low output ripple and noise
High Reliability:
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Calculated MTBF > 6.8M hours at 25 C Full-
load
Output voltage programmable from 0.75 Vdc to
3.63Vdc via external resistor
Line Regulation: 0.3% (typical)
Load Regulation: 0.4% (typical)
Temperature Regulation: 0.4% (typical)
Remote On/Off
Remote Sense
Output overcurrent protection (non-latching)
Overtemperature protection
Wide operating temperature range (-40°C to
85°C)
UL*
60950-1Recognized,
CSA
C22.2 No.
60950-1-03 Certified, and
VDE
0805:2001-12
(EN60950-1) Licensed
ISO** 9001 and ISO 14001 certified
manufacturing facilities
o
Description
Austin SuperLynx
TM
SMT (surface mount technology) power modules are non-isolated dc-dc converters that can
deliver up to 16A of output current with full load efficiency of 95% at 3.3V output. These modules provide a
precisely regulated output voltage programmable via external resistor from 0.75Vdc to 3.63Vdc over a wide range of
input voltage (V
IN
= 3.0 – 5.5Vdc). Their open-frame construction and small footprint enable designers to develop
cost- and space-efficient solutions. Standard features include remote On/Off, remote sense, programmable output
voltage, overcurrent and overtemperature protection.
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
CSA
is a registered trademark of Canadian Standards Association.
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-081 ver. 1.43
PDF name: superlynx_smt_3v-5.5v.pdf
