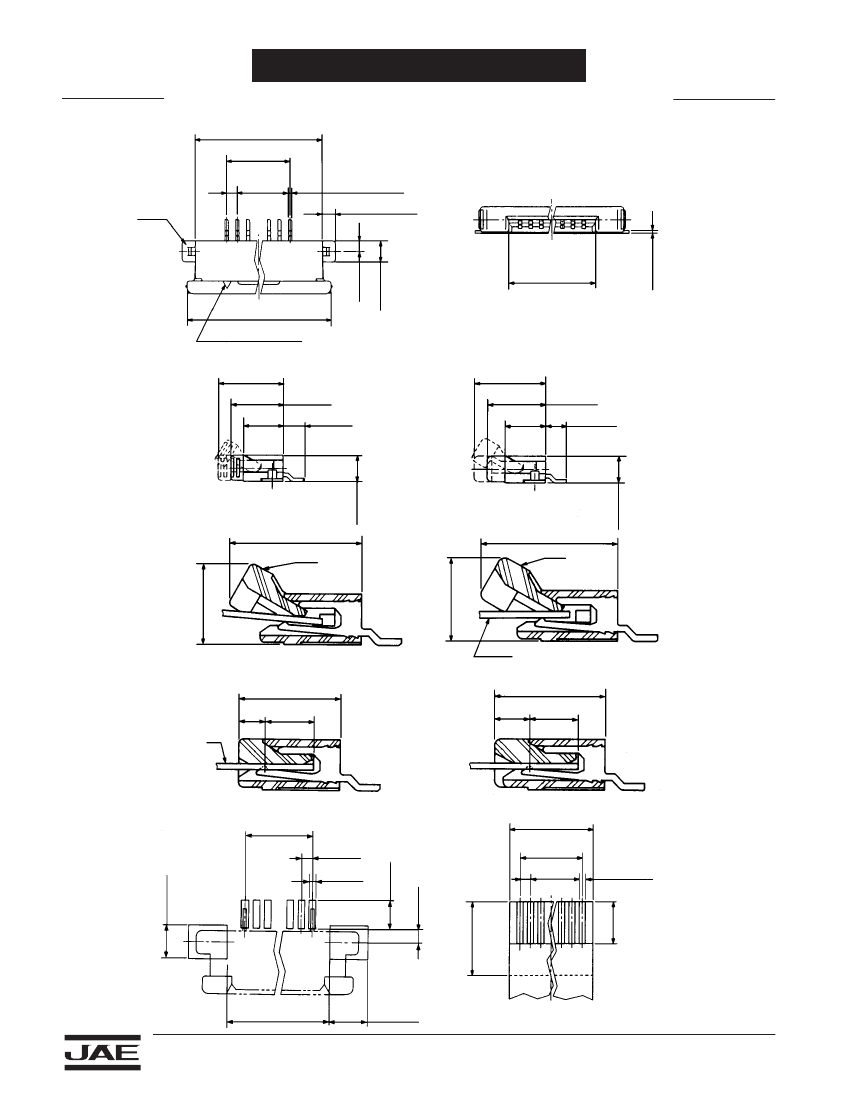

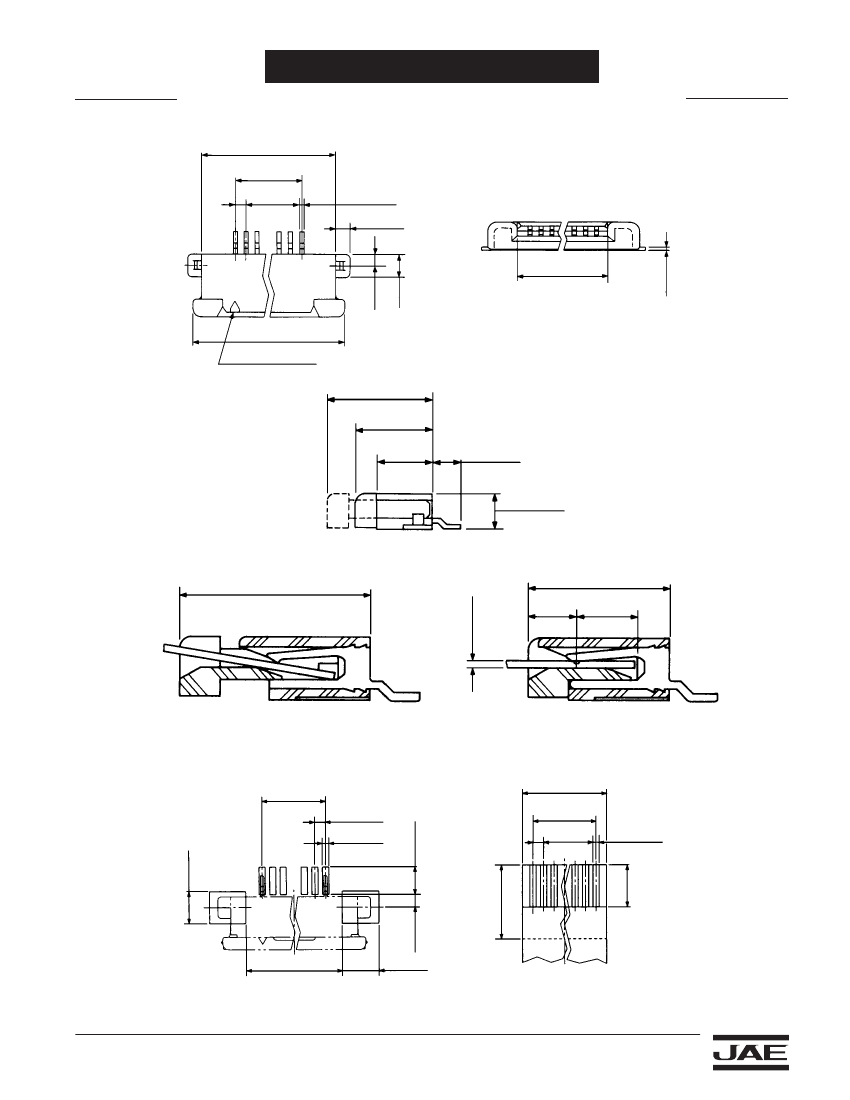

IL-402/402R SERIES CONNECTORS
1.0mm (.039") Contact Spacing, ZIF Type SMT Connectors for FPC/FFC
• • • • • • • • • • • • • •

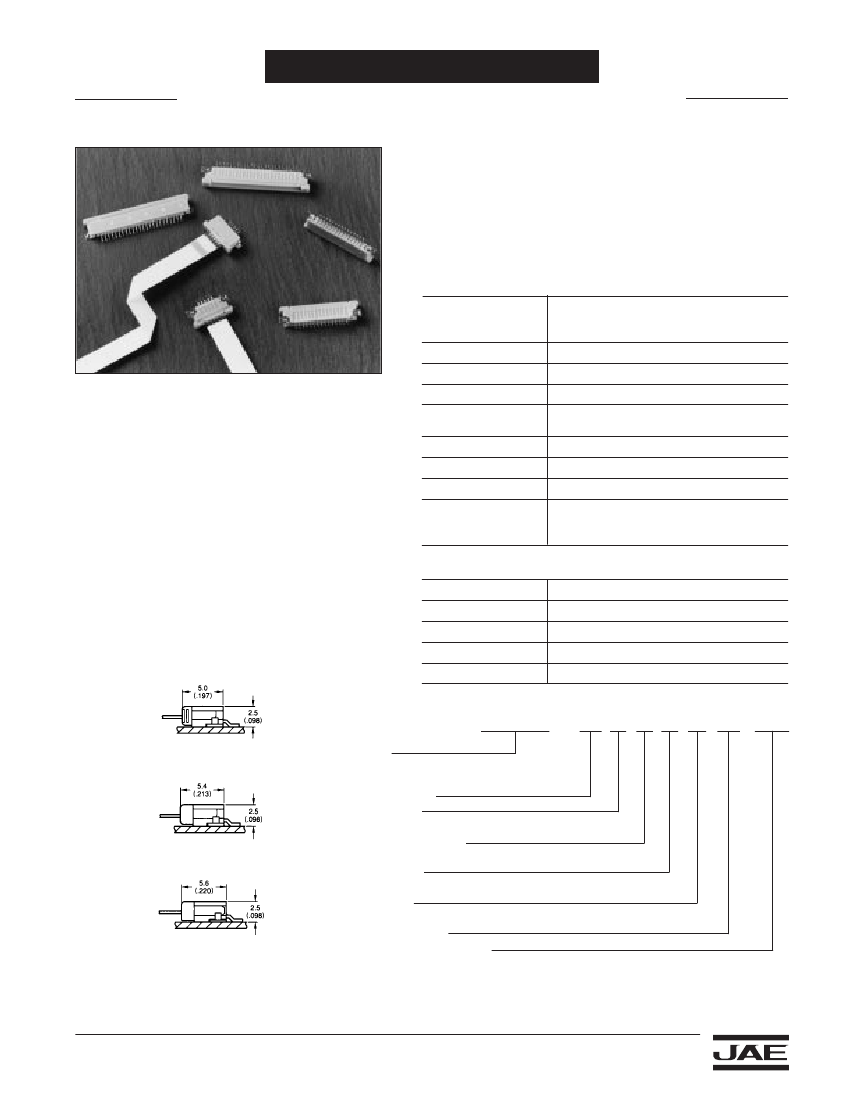

The IL-402/402R Series has been developed to meet the demands
of increased density of components in the surface mount
environment. This 1.0mm (.039") pitch, low profile connector for
Flexible Printed Circuit (FPC) and Flexible Flat Cable (FFC) has a
mounting height of 2.5mm (.098"). Its construction is compatible
with automatic mounting equipment when ordered on embossed
tape. Zero Insertion Force cable termination allows for simplified
operation.
GENERAL SPECIFICATIONS
Number of Contacts
IL-402/4 to 30,
IL-402R/4, 7, 8, 10 to 12, 14 to
18, 20, 23
1.0mm (.039"), Single Row
0.5 Amps
200 VAC, VDC
500 VAC r.m.s. (one minute)
1000 megohms min.
20 milliohms max.
-40°C +85°C
1.0mm (.039") Center
(IL-402) 0.3mm
+0.05
mm (.012"
+.002
")Thick
-0.02
-.001
(IL-402R) 0.3mm
±
0.05mm (.012"
±
.002") Thick
Contact Spacing
Current Rating
Operating Voltage
Dielectric Withstanding
Voltage
FEATURES
• SMT configuration
• Low profile of 2.5mm (0.98")
• Easy termination of cable utilizing a slide actuator
• Zero Insertion Force (ZIF) cable termination
• Hold down tabs prevent floating up of the
connector during soldering and secure the
connector on PCB
• Optional embossed tape packaging for automatic
mounting
Connector Profile (Ref.)
IL-402
4 to 20 Contacts
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable FPC
MATERIALS AND FINISHES
Description
Contact
Insulator
Hold-down Tab
Slider
Materials/Finishes
Phosphor Bronze/Tin Plated
Glass-filled PPS (UL94V-O, Light Gray)
Phosphor Bronze/Tin Plated
Glass filled PPS
ORDERING INFORMATION
IL – 402 *
–
**
S – S
1
L – SA – E****
Series
IL-402 – Bottom Contact Mating
IL-402R – Top Contact Mating
No. of Contacts
Contact Type
S – Socket
Contact Arrangement
S – Single Row
Contact Pitch
1 – 1.0mm (.039")
Termination
L – Right Angle
Modification Code
Embossed Tape Packaging
E1000 – 1000 pcs. per reel (4 to 24 contacts)
E1500 – 1500 pcs. per reel. (25 to 30 contacts)
Dimensions and specifications subjectDimensionswithout(inches).
to change in mm notice.
21 to 30 Contacts
IL-402R
91
IL-402/402R SERIES CONNECTORS
1.0mm (.039") Contact Spacing, ZIF Type SMT Connectors for FPC/FFC
A
±
0.3 (.012)
B
±
0.15 (.006)
IL-402 SERIES
(Bottom Contact Mating)
SQ. 0.32 (.013)
±
0.1 (.004)
1 (.039)
±
0.08 (.003)
HOLD
DOWN
(pitch)
1.25 (.049)
±
0.3 (.012)
±
0.3 (.012)
1 (.039)
2 (.079)
D
+0.2 (.008)
– 0.1 (.004)
CONTACT NO. 1 MARK
4-20 Positions
6.2 (.244)
5 (.197)
±
0.3 (.012)
21-30 Positions
6.6 (.260)
5.4 (.213)
±
0.3 (.012)
3.8
(.150)
2 (.079)
±
0.3 (.012)
3.8
(.150)
2 (.079)
±
0.3 (.012)
2.5 (.098)
2.5 (.098)
6.8 (.268)
Slider
±
0.3 (.012)
6.5 (.256)
Slider
4.1 (.161)
4 (.157)
Unlocked
5 (.197)
1.3
(.051)
FPC
2.4 (.094)
FPC
Unlocked
5.4 (.213)
1.7
(.067)
2.4 (.094)
Locked
PCB Layout (Ref.)
E
±
0.1 (.004)
1 (.039)
2.6 (.102)
±
0.1 (.004)
Locked
G
±
0.1 (.004)
+0.05
t 0.3 (.012)
– 0.02 (.002)
(.001)
H
±
0.1 (.004)
1 (.039)
1.2 (.047)
±
0.1 (.004)
Applicable Cable
Dimensions (Ref.)
0.6 (.024)
±
0.03 (.001)
±
0.05 (.002)
0.6 (.024)
±
0.1 (.004)
3 (.118)
±
0.1 (.004)
±
0.05 (.002)
(Length of Reinforcement)
7 (.276)
F
±
0.1 (.004)
3.5 (.138)
±
0.1 (.004)
MIN.
4 (.157)
±
0.3 (.012)
Note : Refer to Dimension Tables.
Dimensions in mm (inches).
92
IL-402/402R SERIES CONNECTORS
1.0mm (.039") Contact Spacing, ZIF Type SMT Connectors for FPC/FFC
A
±
0.3 (.012)
B
±
0.15 (.006)
1 (.039)
±
0.08 (.003)
IL-402R SERIES
(Top Contact Mating)
SQ. 0.32 (.013)
±
0.1 (.004)
(pitch)
1.25 (.049)
±
0.3 (.012)
0.25 (.010)
2.4 (.094)
0.6 (.024)
±
0.03 (.001)
D
±
0.3 (.012)
+0.2 (.008)
– 0.1 (.004)
C
±
0.3 (.012)
CONTACT NO. 1 MARK
7.6 (.299)
1 (.039)
5.6 (.220)
±
0.3 (.012)
2 (.079)
4 (.157)
2 (.079)
±
0.3 (.012)
2.5 (.098)
±
0.3 (.012)
7.6 (.299)
5.6 (.220)
0.3 (.012)
±
0.05 (.002)
1.9 (.075)
Unlocked
Locked
PCB Layout (Ref.)
E
±
0.1 (.004)
1 (.039)
Applicable Cable Dimensions (Ref.)
G
±
0.1 (.004)
+0.05
t 0.3 (.012)
– 0.02 (.002)
(.001)
H
±
0.1 (.004)
2.6 (.102)
±
0.1 (.004)
±
0.05 (.002)
0.6 (.024)
±
0.1 (.004)
1 (.039)
±
0.05 (.002)
3 (.118)
±
0.1 (.004)
(Length of Reinforcement)
1.2 (.047)
±
0.1 (.004)
7 (.276)
F
±
0.1 (.004)
3.5 (.138)
±
0.1 (.004)
MIN.
4 (.157)
Note : Refer to Dimension Tables.
±
0.1 (.004)
Dimensions in mm (inches).
93
IL-402/402R SERIES CONNECTORS
1.0mm (.039") Contact Spacing, ZIF Type SMT Connectors for FPC/FFC
Dimension Table
IL-402 SERIES
CONTACTS
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
PART NUMBER
IL-402- 4S-S1L-SA
IL-402- 5S-S1L-SA
IL-402- 6S-S1L-SA
IL-402- 7S-S1L-SA
IL-402- 8S-S1L-SA
IL-402- 9S-S1L-SA
IL-402-10S-S1L-SA
IL-402-11S-S1L-SA
IL-402-12S-S1L-SA
IL-402-13S-S1L-SA
IL-402-14S-S1L-SA
IL-402-15S-S1L-SA
IL-402-16S-S1L-SA
IL-402-17S-S1L-SA
IL-402-18S-S1L-SA
IL-402-19S-S1L-SA
IL-402-20S-S1L-SA
IL-402-21S-S1L-SA
IL-402-22S-S1L-SA
IL-402-23S-S1L-SA
IL-402-24S-S1L-SA
IL-402-25S-S1L-SA
IL-402-26S-S1L-SA
IL-402-27S-S1L-SA
IL-402-28S-S1L-SA
IL-402-29S-S1L-SA
IL-402-30S-S1L-SA
A
9 ( .354)
10 ( .394)
11 ( .433)
12 ( .472)
13 ( .512)
14 ( .551)
15 ( .591)
16 ( .630)
17 ( .669)
18 ( .709)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
24 ( .945)
25 ( .984)
26 ( 1.024)
27 ( 1.063)
28 ( 1.102)
29 ( 1.142)
30 ( 1.181)
31 ( 1.220)
32 ( 1.260)
33 ( 1.299)
34 ( 1.339)
35 ( 1.378)
B
3 ( .118)
4 ( .157)
5 ( .197)
6 ( .236)
7 ( .276)
8 ( .315)
9 ( .354)
10 ( .394)
11 ( .433)
12 ( .472)
13 ( .512)
14 ( .551)
15 ( .591)
16 ( .630)
17 ( .669)
18 ( .709)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
24 ( .945)
25 ( .984)
26 ( 1.024)
27 ( 1.063)
28 ( 1.102)
29 ( 1.142)
C
10.6 ( .417)
11.6 ( .457)
12.6 ( .496)
13.6 ( .535)
14.6 ( .575)
15.6 ( .614)
16.6 ( .654)
17.6 ( .693)
18.6 ( .732)
19.6 ( .772)
20.6 ( .811)
21.6 ( .850)
22.6 ( .890)
23.6 ( .929)
24.6 ( .969)
25.6 ( 1.008)
26.6 ( 1.047)
27.6 ( 1.087)
28.6 ( 1.126)
29.6 ( 1.165)
30.6 ( 1.205)
31.6 ( 1.244)
32.6 ( 1.283)
33.6 ( 1.323)
34.6 ( 1.362)
35.6 ( 1.402)
36.6 ( 1.441)
D
5.2 ( .205)
6.2 ( .244)
7.2 ( .283)
8.2 ( .323)
9.2 ( .362)
10.2 ( .402)
11.2 ( .441)
12.2 ( .480)
13.2 ( .520)
14.2 ( .559)
15.2 ( .598)
16.2 ( .638)
17.2 ( .677)
18.2 ( .717)
19.2 ( .756)
20.2 ( .795)
21.2 ( .835)
22.2 ( .874)
23.2 ( .913)
24.2 ( .953)
25.2 ( .992)
26.2 ( 1.031)
27.2 ( 1.071)
28.2 ( 1.110)
29.2 ( 1.150)
30.2 ( 1.189)
31.2 ( 1.228)
E
3 ( .118)
4 ( .157)
5 ( .197)
6 ( .236)
7 ( .276)
8 ( .315)
9 ( .354)
10 ( .394)
11 ( .433)
12 ( .472)
13 ( .512)
14 ( .551)
15 ( .591)
16 ( .630)
17 ( .669)
18 ( .709)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
24 ( .945)
25 ( .984)
26 ( 1.024)
27 ( 1.063)
28 ( 1.102)
29 ( 1.142)
F
6.1 ( .240)
7.1 ( .280)
8.1 ( .319)
9.1 ( .358)
10.1 ( .398)
11.1 ( .437)
12.1 ( .476)
13.1 ( .516)
14.1 ( .555)
15.1 ( .594)
16.1 ( .634)
17.1 ( .673)
18.1 ( .713)
19.1 ( .752)
20.1 ( .791)
21.1 ( .831)
22.1 ( .870)
23.1 ( .909)
24.1 ( .949)
25.1 ( .988)
26.1 ( 1.028)
27.1 ( 1.067)
28.1 ( 1.106)
29.1 ( 1.146)
30.1 ( 1.185)
31.1 ( 1.224)
32.1 ( 1.264)
G
5 ( .197)
6 ( .236)
7 ( .276)
8 ( .315)
9 ( .354)
10 ( .394)
11 ( .433)
12 ( .472)
13 ( .512)
14 ( .551)
15 ( .591)
16 ( .630)
17 ( .669)
18 ( .709)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
24 ( .945)
25 ( .984)
26 ( 1.024)
27 ( 1.063)
28 ( 1.102)
29 ( 1.142)
30 ( 1.181)
31 ( 1.220)
H
3 ( .118)
4 ( .157)
5 ( .197)
6 ( .236)
7 ( .276)
8 ( .315)
9 ( .354)
10 ( .394)
11 ( .433)
12 ( .472)
13 ( .512)
14 ( .551)
15 ( .591)
16 ( .630)
17 ( .669)
18 ( .709)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
24 ( .945)
25 ( .984)
26 ( 1.024)
27 ( 1.063)
28 ( 1.102)
29 ( 1.142)
IL-402R SERIES
CONTACTS
4
7
8
10
11
12
14
15
16
17
18
20
23
PART NUMBER
IL-402R- 4S-S1L-SA
IL-402R- 7S-S1L-SA
IL-402R- 8S-S1L-SA
IL-402R- 10S-S1L-SA
IL-402R- 11S-S1L-SA
IL-402R- 12S-S1L-SA
IL-402R- 14S-S1L-SA
IL-402R- 15S-S1L-SA
IL-402R- 16S-S1L-SA
IL-402R- 17S-S1L-SA
IL-402R- 18S-S1L-SA
IL-402R- 20S-S1L-SA
IL-402R- 23S-S1L-SA
A
9 ( .354)
12 ( .472)
13 ( .512)
15 ( .591)
16 ( .630)
17 ( .669)
19 ( .748)
20 ( .787)
21 ( .827)
22 ( .866)
23 ( .906)
25 ( .984)
28 ( 1.102)
B
3 (.118)
6 (.236)
7 (.276)
9 (.354)
10 (.394)
11 (.433)
13 (.512)
14 (.551)
15 (.591)
16 (.630)
17 (.669)
19 (.748)
22 (.866)
C
10.6 ( .417)
13.6 ( .535)
14.6 ( .575)
16.6 ( .654)
17.6 ( .693)
18.6 ( .732)
20.6 ( .811)
21.6 ( .850)
22.6 ( .890)
23.6 ( .929)
24.6 ( .969)
26.6 ( 1.047)
29.6 ( 1.165)
D
5.2 (.205)
8.2 (.323)
9.2 (.362)
11.2 (.441)
12.2 (.480)
13.2 (.520)
15.2 (.598)
16.2 (.638)
17.2 (.677)
18.2 (.717)
19.2 (.756)
21.2 (.835)
24.2 (.953)
E
3 (.118)
6 (.236)
7 (.276)
9 (.354)
10 (.394)
11 (.433)
13 (.512)
14 (.551)
15 (.591)
16 (.630)
17 (.669)
19 (.748)
22 (.866)
F
6.1 (.240)
9.1 (.358)
10.1 (.398)
12.1 (.476)
13.1 (.516)
14.1 (.555)
16.1 (.634)
17.1 (.673)
18.1 (.713)
19.1 (.752)
20.1 (.791)
22.1 (.870)
25.1 (.988)
G
5 (.197)
8 (.315)
9 (.354)
11 (.433)
12 (.472)
13 (.512)
15 (.591)
16 (.630)
17 (.669)
18 (.709)
19 (.748)
21 (.827)
24 (.945)
H
3 (.118)
6 (.236)
7 (.276)
9 (.354)
10 (.394)
11 (.433)
13 (.512)
14 (.551)
15 (.591)
16 (.630)
17 (.669)
19 (.748)
22 (.866)
• TO ORDER BY REEL OF EMBOSSED TAPE, ADD -E1000 FOR 4 TO 24 CONTACTS OR -E1500 FOR 25 TO 30 CONTACTS TO END OF PART NUMBER.
Dimensions in mm (inches).
94
