17D-C-37-S-F179 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 17D-C-37-S-F179

17D-C-37-S-F179: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size191KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

17D-C-37-S-F179 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug

17D-C-37-S-F179 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	FIXED MACHINED CONTACTS
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	17D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.378 inch
Terminal pitch	2.7686 mm
Termination type	WIRE WRAP
Total number of contacts	37
Base Number Matches	1

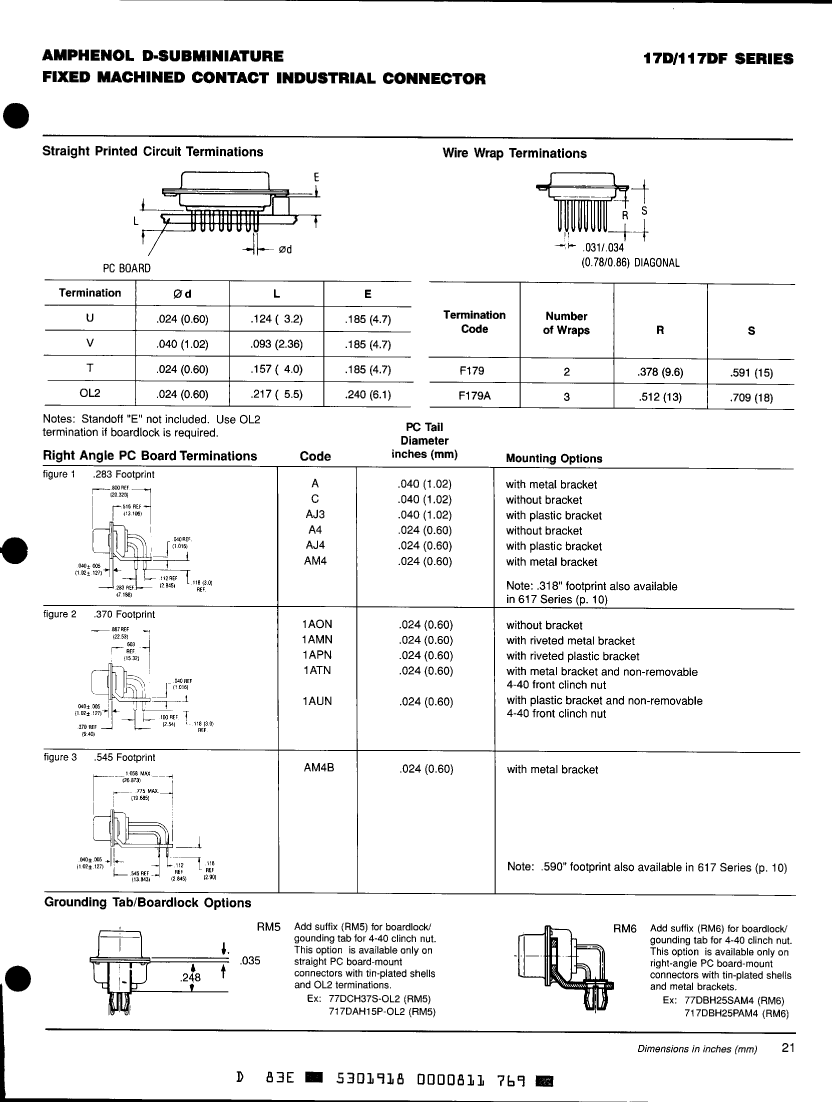

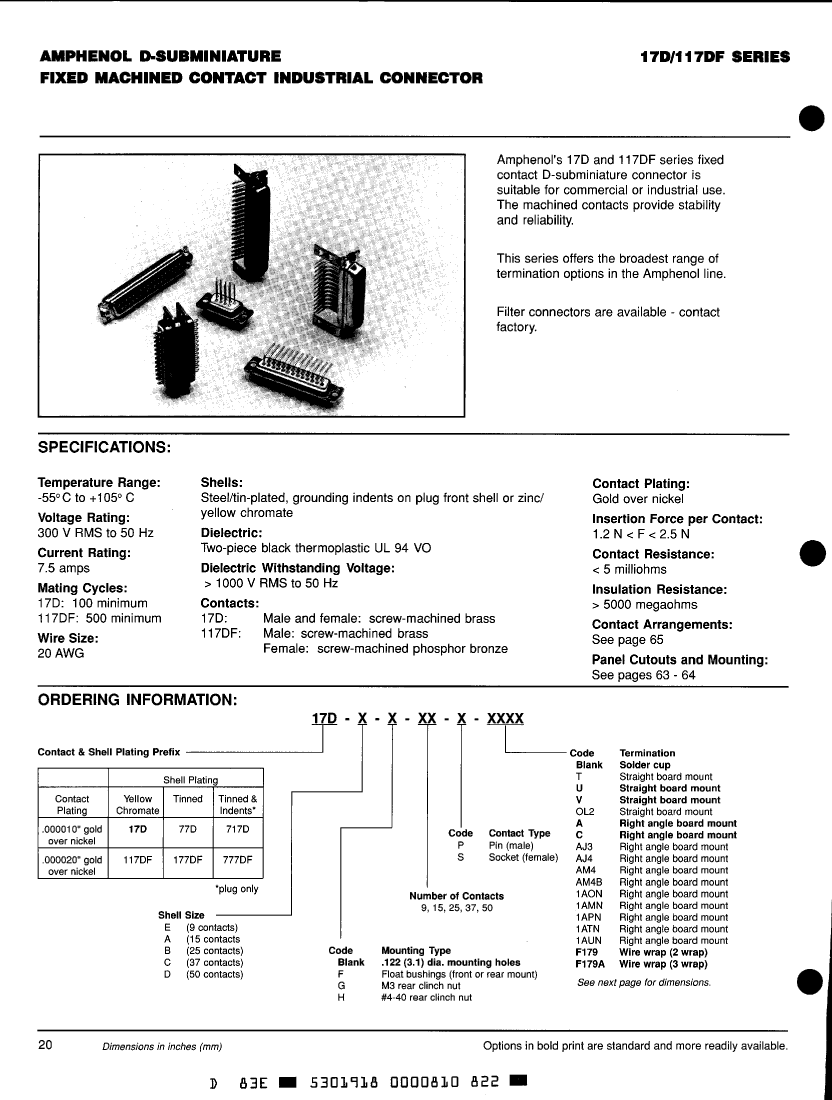

Preview

Download Datasheet

View All

17D-C-37-S-F179 Related Products

	17D-C-37-S-F179	17D-B-25-S-F179	17DC37SF179A	17D-D-50-P-F179A	17D-D-50-S-F179A	17D-D-50-S-F179	17D-E-09-P-F179	17D-E-09-P-F179A	17D-A-15-P-F179
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug	D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Receptacle	D Type Connector, 50 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug	D Type Connector, 50 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Receptacle	D Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Wire Wrap Terminal, Hole .112-.124, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS	FIXED MACHINED CONTACTS
Body/casing type	PLUG	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	2.502 N	2.502 N	2.502 N	2.502 N	2.502 N	2.502 N	2.502 N	2.502 N	2.502 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	17D	17D	17D	17D	17D	17D	17D	17D	17D
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.108 inch	0.108 inch	0.108 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	3	3	3	2	2	2
Number of rows loaded	2	2	2	3	3	3	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.378 inch	0.378 inch	0.512 inch	0.512 inch	0.512 inch	0.378 inch	0.378 inch	0.512 inch	0.378 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	37	25	37	50	50	50	9	9	15
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	-	EAR99	EAR99
Base Number Matches	1	-	1	1	-	-	1	1	-
