FB100-14-105120 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FB100-14-105120

FB100-14-105120: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size193KB，2 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

FB100-14-105120 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

FB100-14-105120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PANCON CONNECTORS
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (150) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

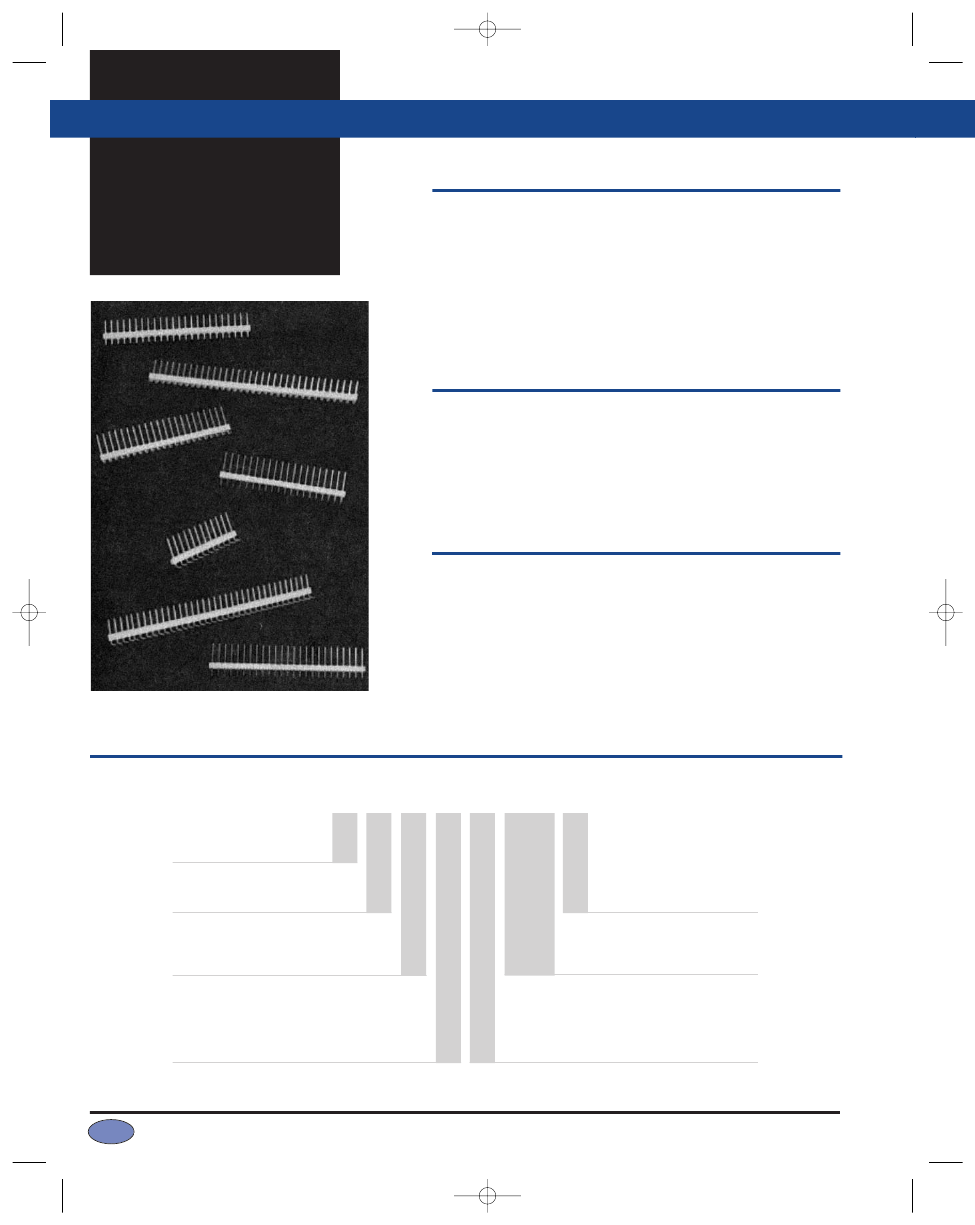

ITWCatalog3rdEd_F.qxp

8/1/07

1:14 PM

Page 14

Mas-Con

Flat headers With

Custom Length

Pins

ITWPancon is pleased to introduce Mas-Con Flat Headers

with Custom length pins. These headers have .100"

spacing between circuits and mate with Mas-Con IDC

connectors as well as similar industry standard

connectors.

Applications

These Flat Headers with custom length pins can be mated with

our standard Mas-Con IDC sockets or with a variety of other

.100" pitch connectors. The custom lengths allow for a variety

of uses in many industry standard applications. The break-to-

length feature makes these headers extremely adaptable to

many applications.

Features

Custom length pins allow for a variety of matin applications.

The header wafer is breakable, allowing for greater flexibility

and less inventory. High quality copper alloy pins can be plated

in tin or gold. Available in straight or right angle styles.

PART NUMBER SYSTEM

100

36 -

240

120

FLAT HEADER

T=Tin

B=Gold

TAIL LENGTH =

.120" - .140"

MATING LENGTH

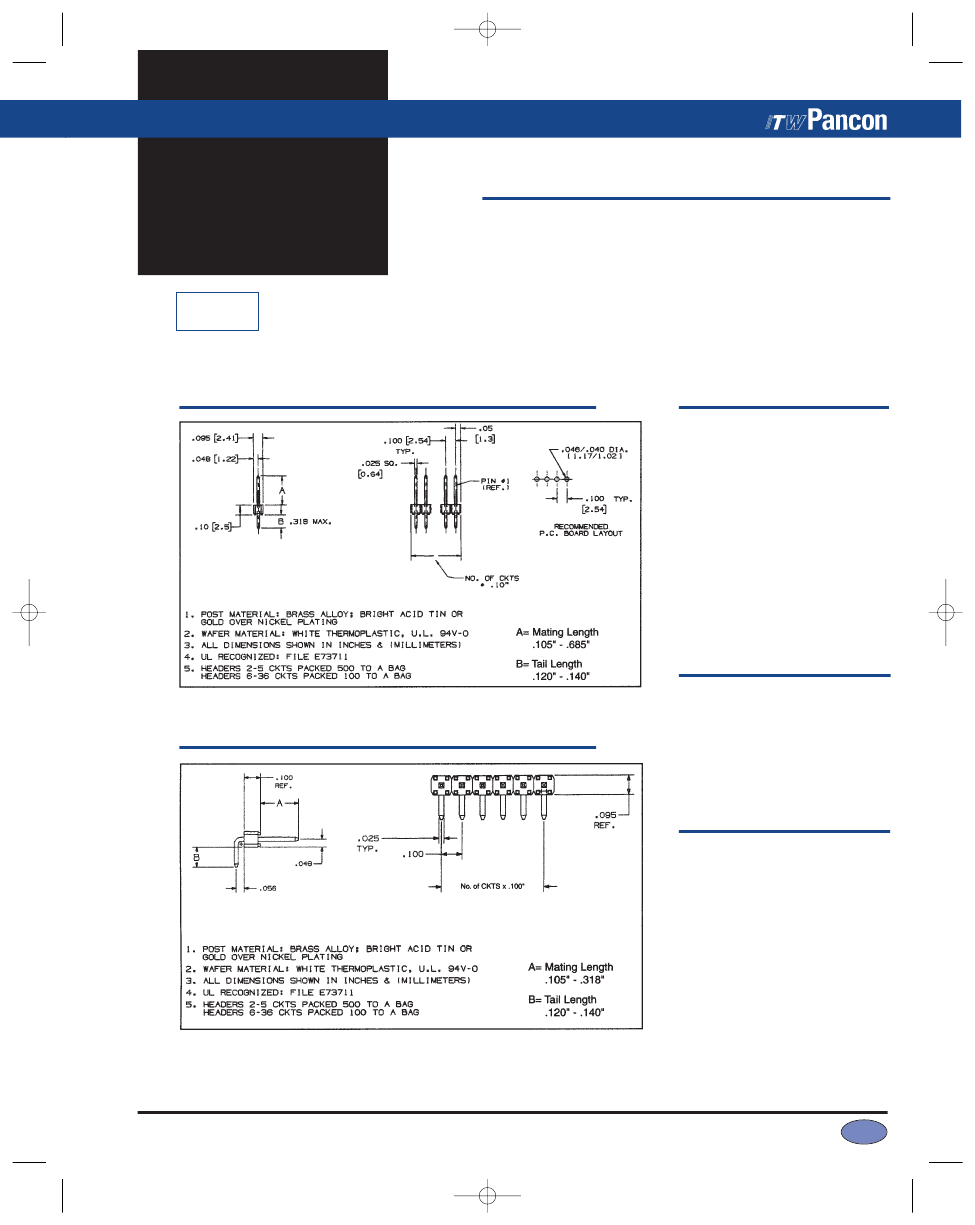

STRAIGHT =.105" - .685"

ANGLED = .105" - .318"

PLATING

SPACING .100"

STYLE

(-) STRAIGHT PINS

(A) ANGLED PINS

NO. OF CIRCUITS (2-36)

Contact factory for part availability
