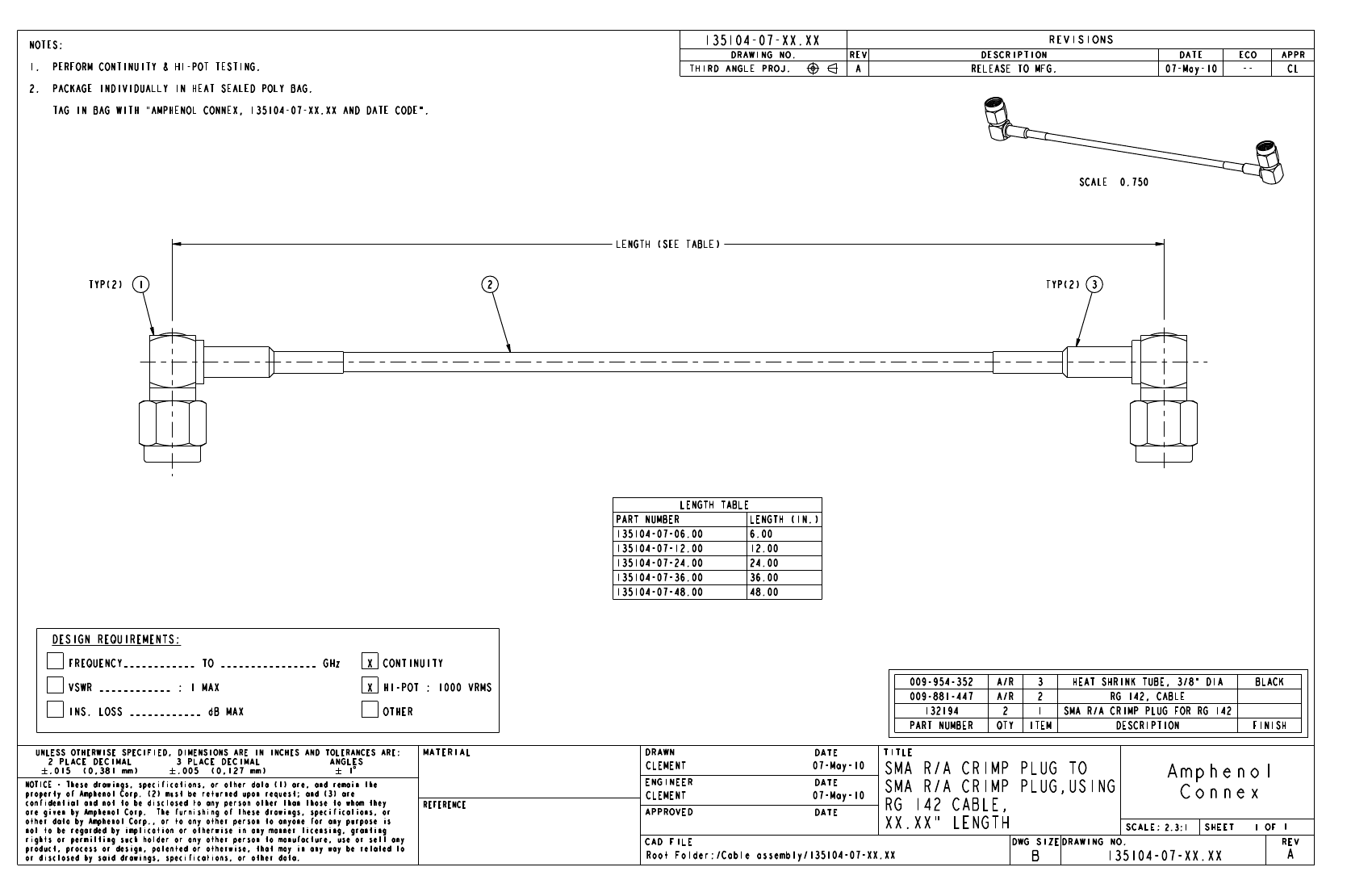

NOTES:
1.
2.
PERFORM CONTINUITY & HI-POT TESTING.
PACKAGE INDIVIDUALLY IN HEAT SEALED POLY BAG.
TAG IN BAG WITH "AMPHENOL CONNEX, 135104-07-XX.XX AND DATE CODE".
135104-07-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
07-May-10
--
CL
SCALE
0.750
LENGTH (SEE TABLE)
TYP(2)
1
2
TYP(2)
3
LENGTH TABLE
PART NUMBER
135104-07-06.00
135104-07-12.00
135104-07-24.00
135104-07-36.00
135104-07-48.00
LENGTH (IN.)
6.00
12.00
24.00
36.00
48.00
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 1000 VRMS
OTHER
009-954-352
009-881-447
132194
PART NUMBER
A/R
A/R
2
QTY
3
2
1
ITEM
HEAT SHRINK TUBE, 3/8" DIA
RG 142, CABLE
SMA R/A CRIMP PLUG FOR RG 142
DESCRIPTION
FINISH
BLACK
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
CLEMENT
ENGINEER
REFERENCE
07-May-10
DATE
CLEMENT
APPROVED
07-May-10
DATE
SMA R/A CRIMP PLUG TO
SMA R/A CRIMP PLUG,USING
RG 142 CABLE,
XX.XX" LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
2.3:1
SHEET
OF
1
1
REV
CAD FILE
Root Folder:/Cable assembly/135104-07-XX.XX
B
135104-07-XX.XX
A
