1N3739

Description
Rectifier, High Power; Max Peak Repetitive Reverse Voltage: 275; Max TMS Bridge Input Voltage: 500; Max DC Reverse Voltage: 75; Package: DO-9
CategoryDiscrete semiconductor    diode
File Size561KB,2 Pages
ManufacturerDigitron
Websitehttp://www.digitroncorp.com
Download Datasheet Parametric View All

1N3739 Online Shopping

Suppliers Part Number Price MOQ In stock
1N3739 - - View Buy Now

1N3739 Overview

Rectifier, High Power; Max Peak Repetitive Reverse Voltage: 275; Max TMS Bridge Input Voltage: 500; Max DC Reverse Voltage: 75; Package: DO-9

1N3739 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDigitron
package instructionO-MUPM-H1
Reach Compliance Codeunknown
Is SamacsysN
applicationHIGH POWER
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JEDEC-95 codeDO-9
JESD-30 codeO-MUPM-H1
JESD-609 codee0
Maximum non-repetitive peak forward current5000 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature190 °C
Minimum operating temperature-65 °C
Maximum output current275 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage500 V
Maximum reverse current75 µA
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formHIGH CURRENT CABLE
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

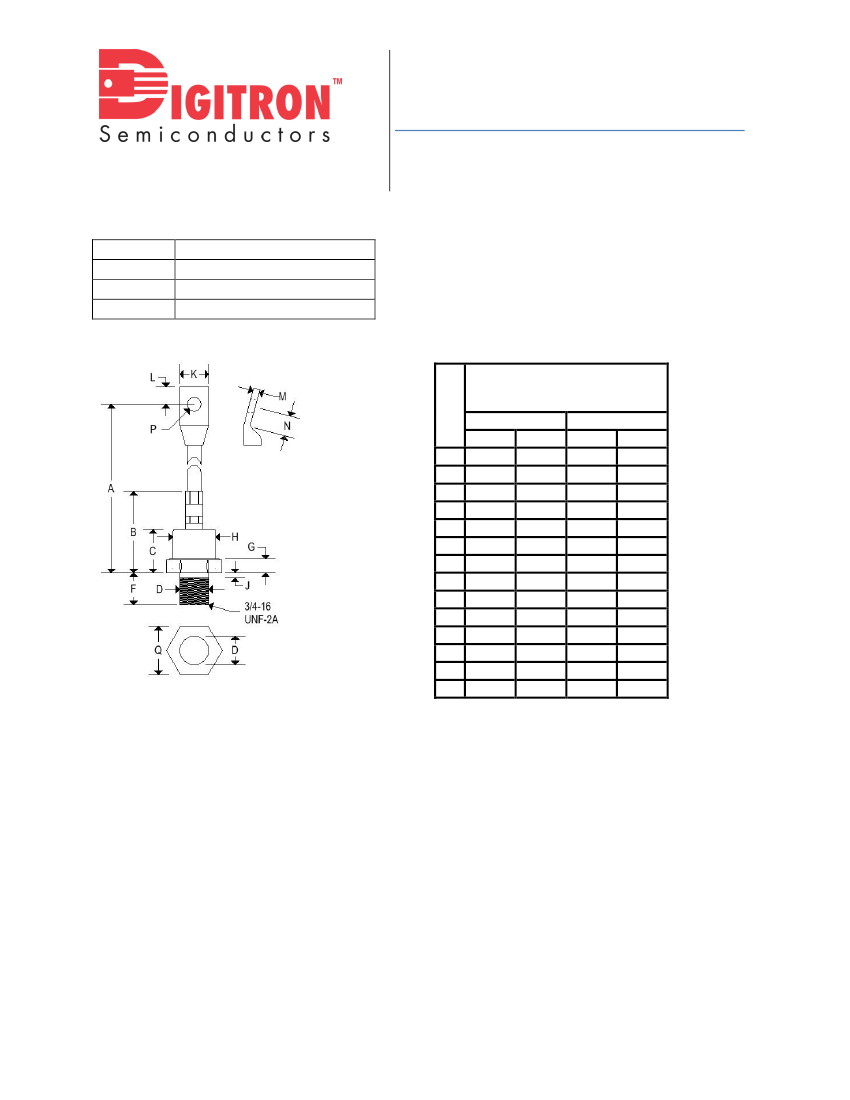

1N3735-1N3744
High-reliability discrete products
and engineering services since 1977
FEATURES
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS
(Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
HIGH POWER RECTFIERS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Parameter
Average Forward Current
Maximum Surge Current
Max. I
2
t for fusing
Max. Peak Forward Voltage
Max. Peak Reverse Current
Max. Reverse Current
Symbol
I
F(AV)
I
FSM
I
2
t
V
FM
I
RM
I
RM
Value
275 Amps
5000 Amps
104125 A
2
s
1.3 Volts
10mA
75µA
Unit
T
C
= 120°C, square wave, R
θJC
=
0.18°C/W
8.3ms, half sine, T
J
= 190°C
8.3ms
I
FM
= 300A: T
J
= 25°C*
V
RRM
, T
J
= 150°C
V
RRM
, T
J
= 25°C
VOLTAGE RATINGS
Part Number
1N3735
1N3736
1N3737
1N3738
1N3739
1N3740
1N3741
1N3742
1N3743
1N3744
PIV
100 V
200 V
300 V
400 V
500 V
600 V
800 V
1000 V
1200 V
1400 V
THERMAL CHARACTERISTICS
Characteristic
Storage Temperature Range
Operating Junction Temperature Range
Maximum Thermal Resistance
Typical Thermal Resistance
Mounting Torque
Symbol
T
stg
T
J
R
θJC
R
θCS
Value
-65 to +190°C
-65 to +190°C
0.18°C/W junction to case
.08°C/W case to sink
300-325 inch pounds
Rev. 20171115
