FEATURES
1N5186-1N5190
FAST RECOVERY RECTIFIERS DIODES
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
MAXIMUM RATINGS
Peak Inverse Voltage
100 V
200 V
400 V
600 V
Type
1N5186
1N5187
1N5188
1N5190
Maximum Average D.C. Output Current @ T
A
= 25°C
T
A
= 150°C
Non-Repetitive Sinusoidal Surge Current (8.3ms)
Operating Temperature Range
Storage Temperature Range
Thermal Resistance
3.0 A
0.7 A
80 A
-65 to + 175°C
-65 to + 200°C

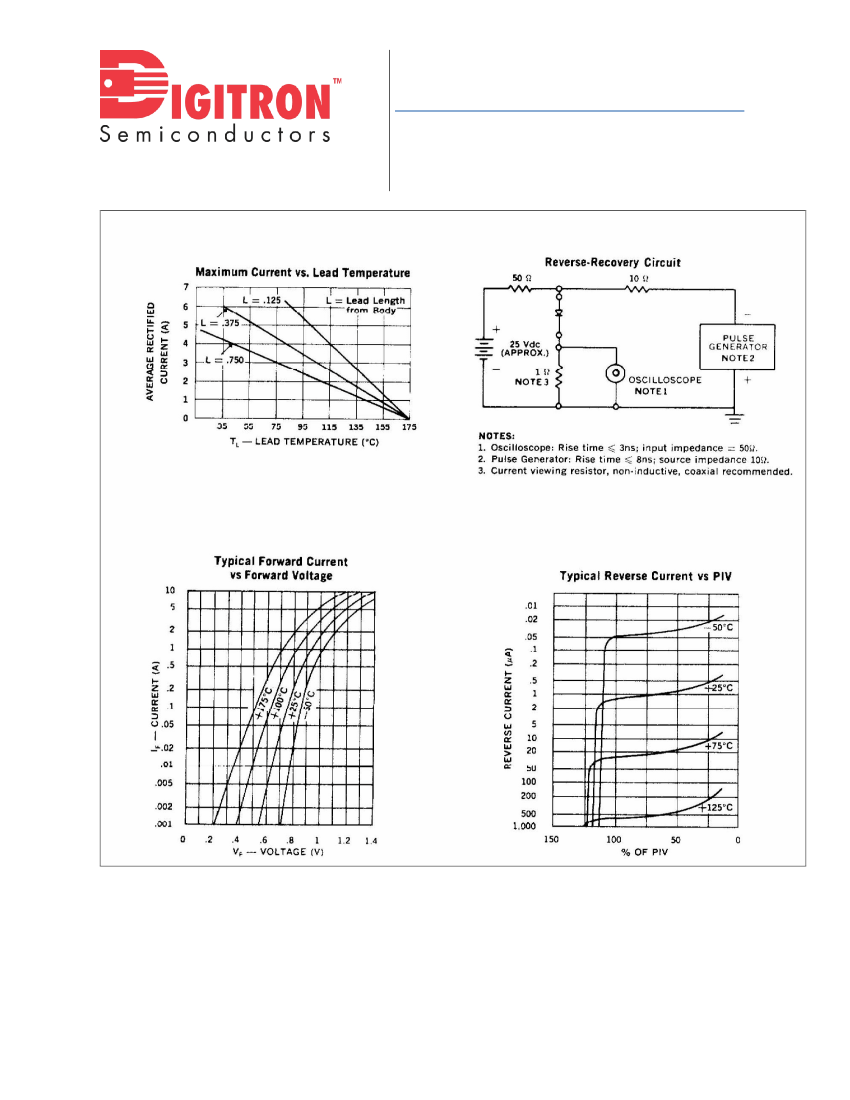

See Lead Temperature Derating Curve
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Peak Forward Voltage
Type
Peak Inverse
Voltage
Minimum Reverse Breakdown
Voltage @ 100 µA
Min
1N5186
1N5187
1N5188
1N5190
100 V
200 V
400 V
600 V
120 V
240 V
480 V
660 V
Capacitance @ V
R
= 0 V,
f = 1MHz
300 pF
300 pF
230 pF
180 pF
Capacitance @ V
R
= 4 V,
f = 1MHz
200 pF
170 pF
120 pF
90 pF
0.9 V
1.5 V
2µA
100µA
@ 9A (pk)
(8.3 ms)
Max
Maximum Reverse DC Current
@ PIV
25°C
100°C
Type
1N5186
1N5187
1N5188
1N5190
Reverse Recovery Time *
150 ns
200 ns
250 ns
400 ns
Recovery time measured from l
F
= 0.5 A to l
R
= 1.0 A, l
REC
=0.25A
Rev. 20080911
High-reliability discrete products
and engineering services since 1977

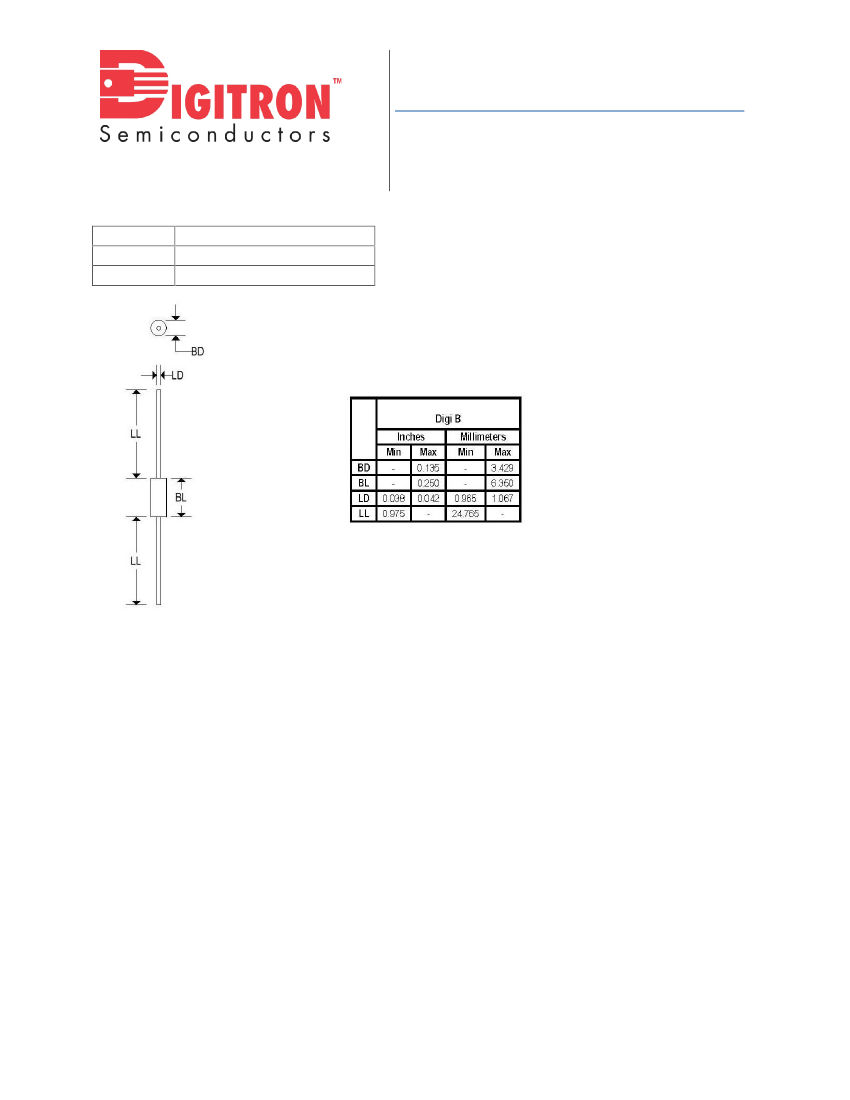

MECHANICAL CHARACTERISTICS
Case:
Marking:
Polarity:
Digi B
Body painted, alpha-numeric
Cathode band
1N5186-1N5190
FAST RECOVERY RECTIFIERS DIODES
Rev. 20080911
