218-1-028-6-X0STF-XT0 datasheet, PDF

Datasheet> All Categories > The connector> socket> 218-1-028-6-X0STF-XT0

218-1-028-6-X0STF-XT0: DescriptionIC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size875KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric Compare View All

218-1-028-6-X0STF-XT0 Overview

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

218-1-028-6-X0STF-XT0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.697 inch
subject depth	0.52 inch
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP28
Dielectric withstand voltage	1400VAC V
Shell material	THERMOPLASTIC
Manufacturer's serial number	218
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

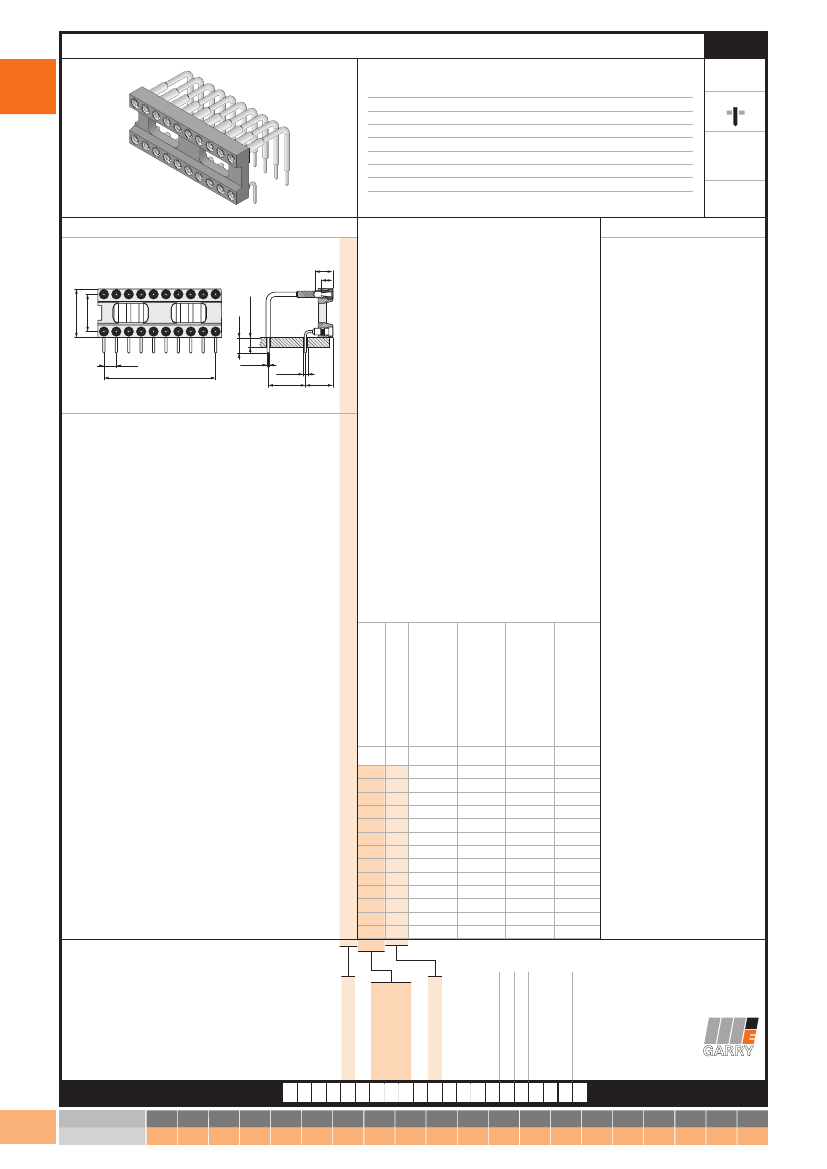

Precision Display Socket 2,54 mm

Product

group

Series

Rated current

Rated voltage

Withstand voltage

Material contact

Material clip

Material insulator

Operating temperature

Max. soldering temper.

3,0 A

150 V

RMS

/ V

1000 V

RMS

for one minute

Copper alloy

BeCu

High temp. thermoplast UL94V-0

-55°C to +125°C

260°C for 10 seconds

218

pitch

termination

mating pin

size

0,40-0,56

⸋

0,25x0,45

max.

pincount

2,54

Variation

3,7

2,4

3,20

1,40 - 2,00

All dimensions in mm.

040

< ø 0,90

2,54

ø 0,51

5,60

006

008

010

014

016

018

020

024

028

032

040

Clip style:

S = 4 finger clip

Plating:

T = Sn

F = Au

H = Au 0,75 µ

Packaging:

T = Tube

7,62

5,08

7,62

15,24

7,54

10,08

12,62

17,70

20,24

22,78

25,32

30,40

35,48

40,56

50,72

10,08

7,60

10,08

17,70

7,62

5,08

7,62

www.mpe-connector.de

Order code:

218-1-???-?-X0ST?-XT0

1-20

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

row distance (code)

row distance (mm)

no. of contacts

see figure left

Clip style

Plating contact

Plating clip (F,H)

No. of contacts

Row distance

Packaging

Variation

see figure left

218-1-028-6-X0STF-XT0 Related Products
