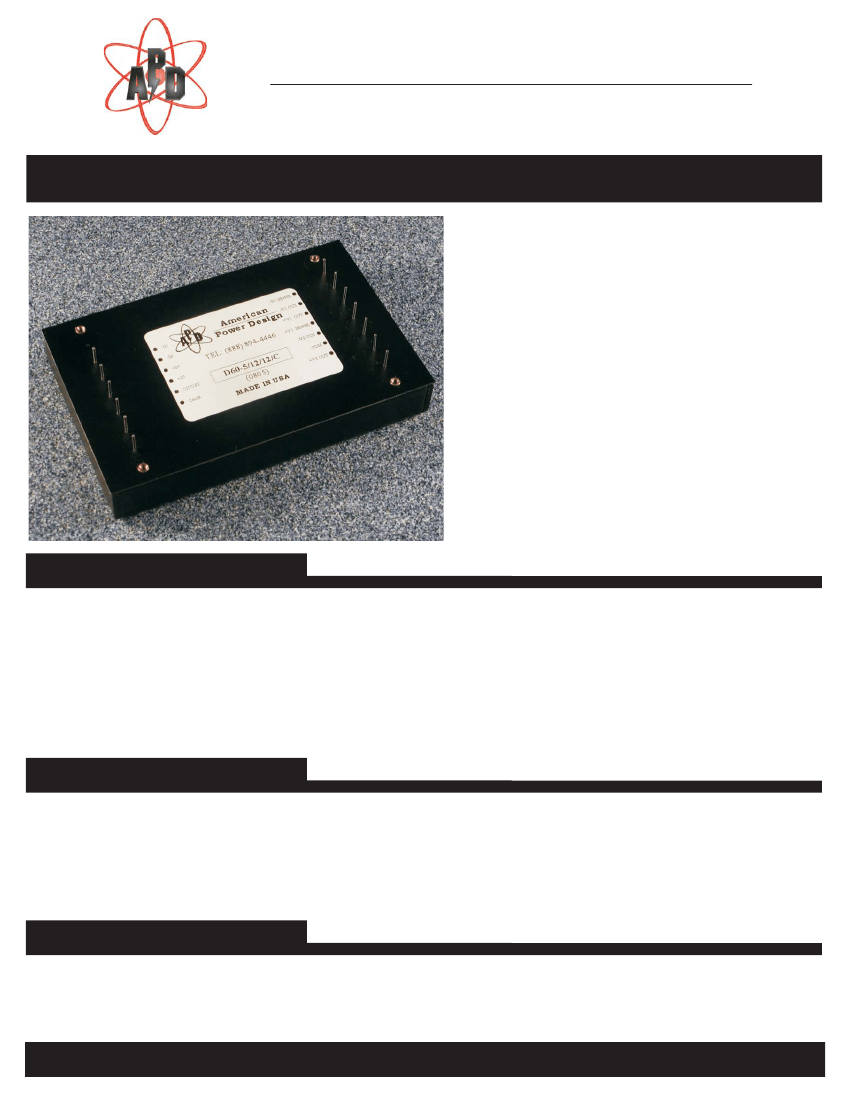

D60 SERIES 60 WATT DC/DC CONVERTERS

FEATURES

Customer Selects Output Voltage

Outputs to 28 Vdc

Wide Input Ranges

(10-20Vdc, 18-36Vdc, 20-60Vdc, 36-72Vdc)

Excellent Line & Load Regulation

Low Output Ripple

100 kHz Switching Frequency

500 Vdc Output Isolation

Continuous Short Circuit Protected

Available in Chassis Mount

The D60 Series of DC/DC converters is available with

single , dual , and triple outputs which are isolated from

the input. They are enclosed in a six-sided metal case.

Their small size, low output ripple, and excellent

regulation characteristics make them ideally suited for

applications that demand a high degree of performance.

All models will tolerate a short circuit indefinitely.

ELECTRICAL SPECIFICATIONS

Voltage Accuracy ............................................................+/-1%

Line Regulation ..............................................................+/- 1%

Load Regulation .............................................................+/- 1%

Output Ripple ........................................................< 100mVp-p

* 18-36 Vdc input add suffix /A

* 20-60 Vdc input add suffix /B

* 36-72 Vdc input add suffix /C

Output Trim (Single Output) .......................................... +/-10%

Input Filter ............................................................... PI Network

Short Circuit Protection .......................................... Continuous

Switching Frequency ...................................................130 kHz

Isolation ...................................................................... 500 Vdc

GENERAL SPECIFICATIONS

Temp. Stability ................................................. +/-0.02%/°C

Temp. (Operating , Case) ................................ -25 to +85°C

Temp. (Storage) ..............................................-40 to +125°C

* Industrial Operating Temp. Range (

-40 to +85°C) add suffix -I

EMI/RFI.......................................................Six Sided Shield

Cooling ....................................... Convection or Forced Air

Thermal Shut Down ....................................... 100°C/+/- 5°C

* All models designed to meet UL 60950

* For RoHS Compliant part, add suffix /Y

PHYSICAL SPECIFICATIONS

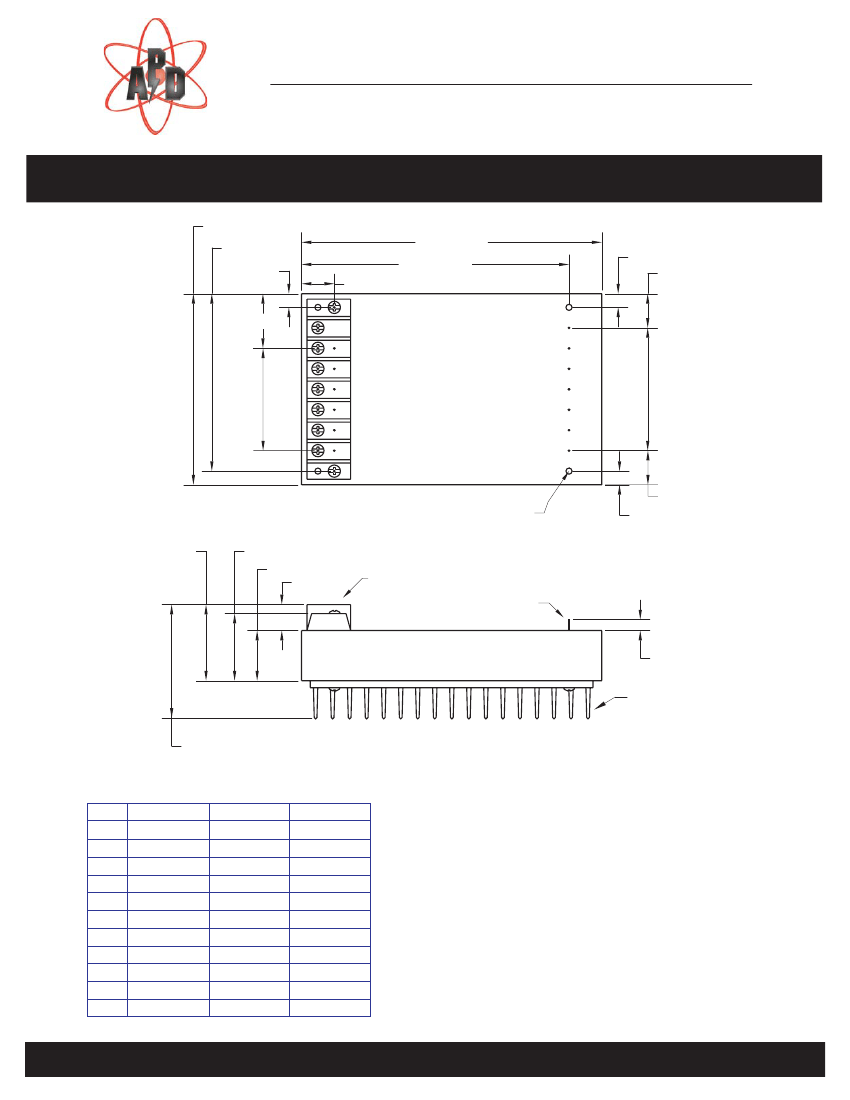

Dimensions ..................................... 3.5 x 5.5 x 0.92 inches

Weight ...................................................................... 20.1 Oz

Case Material ....................................... Black Coated Metal

(With Non-Conductive Base Plate)

Tel (888) 894-4446

WWW.APOWERDESIGN.COM

Fax (603) 898-6534
