5-147254-1 datasheet, PDF - EEWORLD Datasheet

5-147254-1: Description40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, ROHS COMPLIANT; CategoryThe connector The connector; File Size216KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

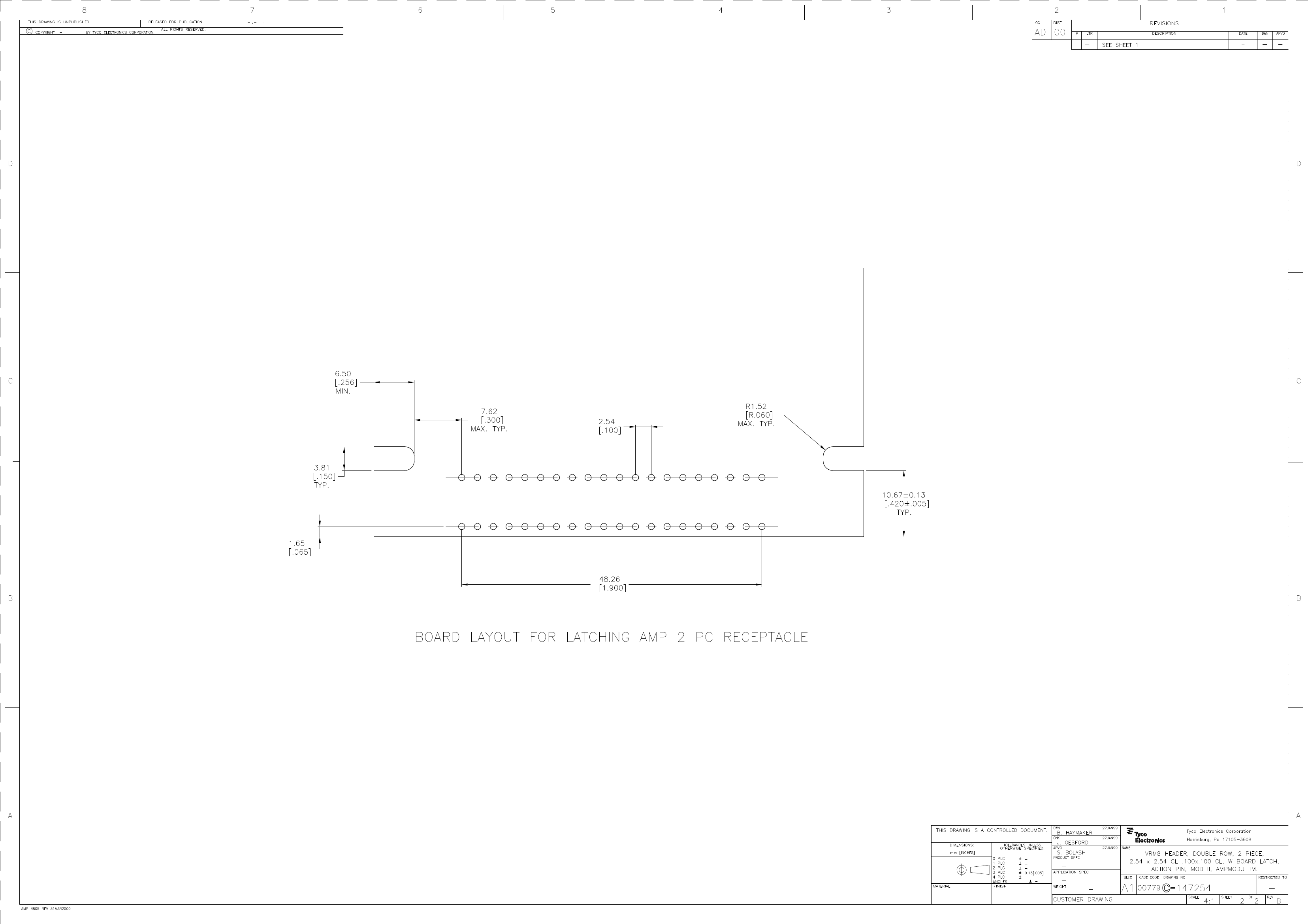

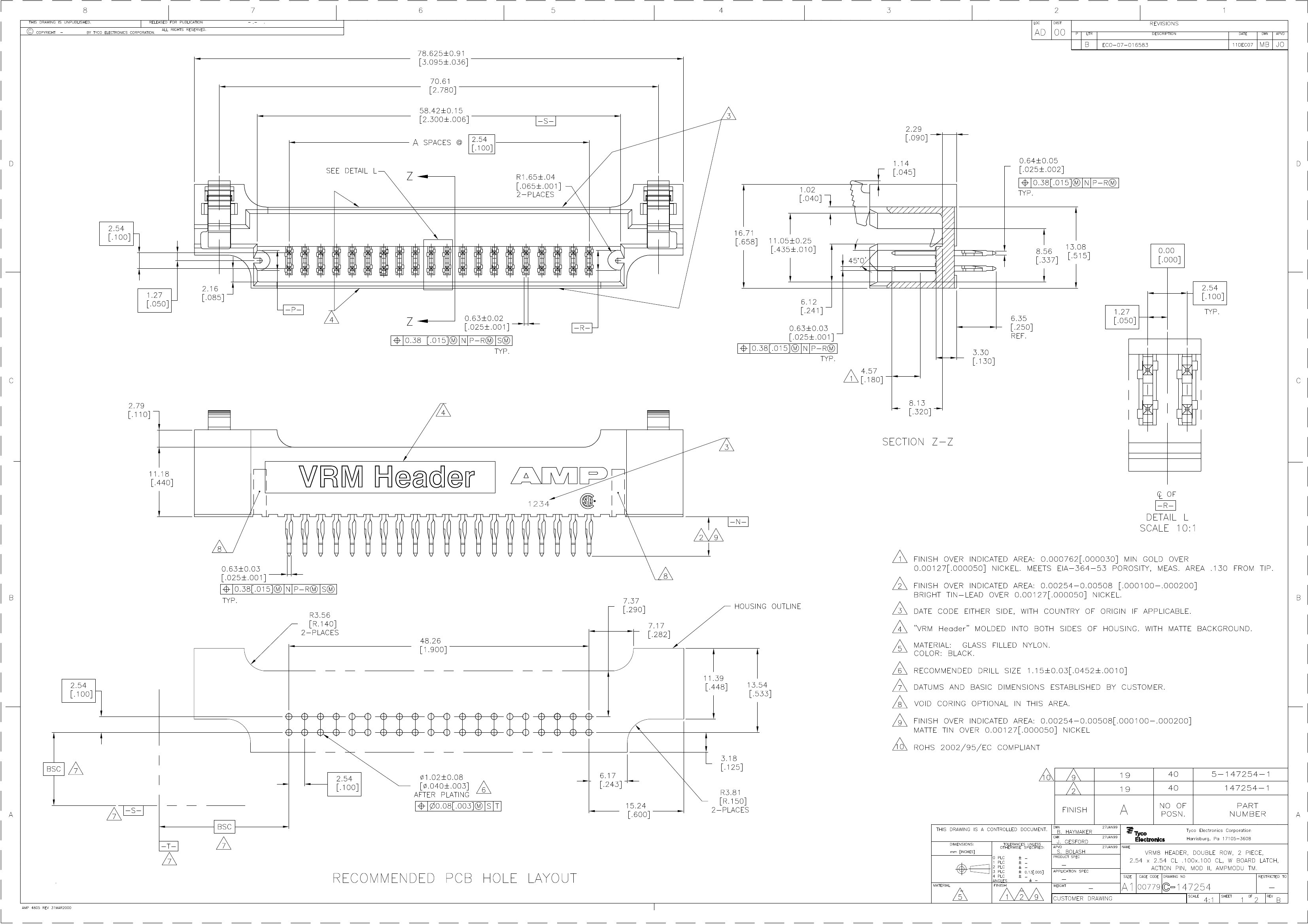

5-147254-1 Overview

40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, ROHS COMPLIANT

Parameter Name	Attribute value
Objectid	2058919604
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL
Contact completed and terminated	MATTE TIN (200) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	147254
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	40
UL Flammability Code	94V-0

	5-147254-1	147254-1
Description	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, ROHS COMPLIANT	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,LATCH & EJECT,WHITE
Reach Compliance Code	unknown	unknow
Other features	LATCHED	BOARD LATCH, ACTION PIN
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL	AU ON NI
Contact completed and terminated	MATTE TIN (200) OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Manufacturer's serial number	147254	147254
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	40	40
