18DH-6F datasheet, PDF - EEWORLD Datasheet

18DH-6F: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

18DH-6F Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SMA-F, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

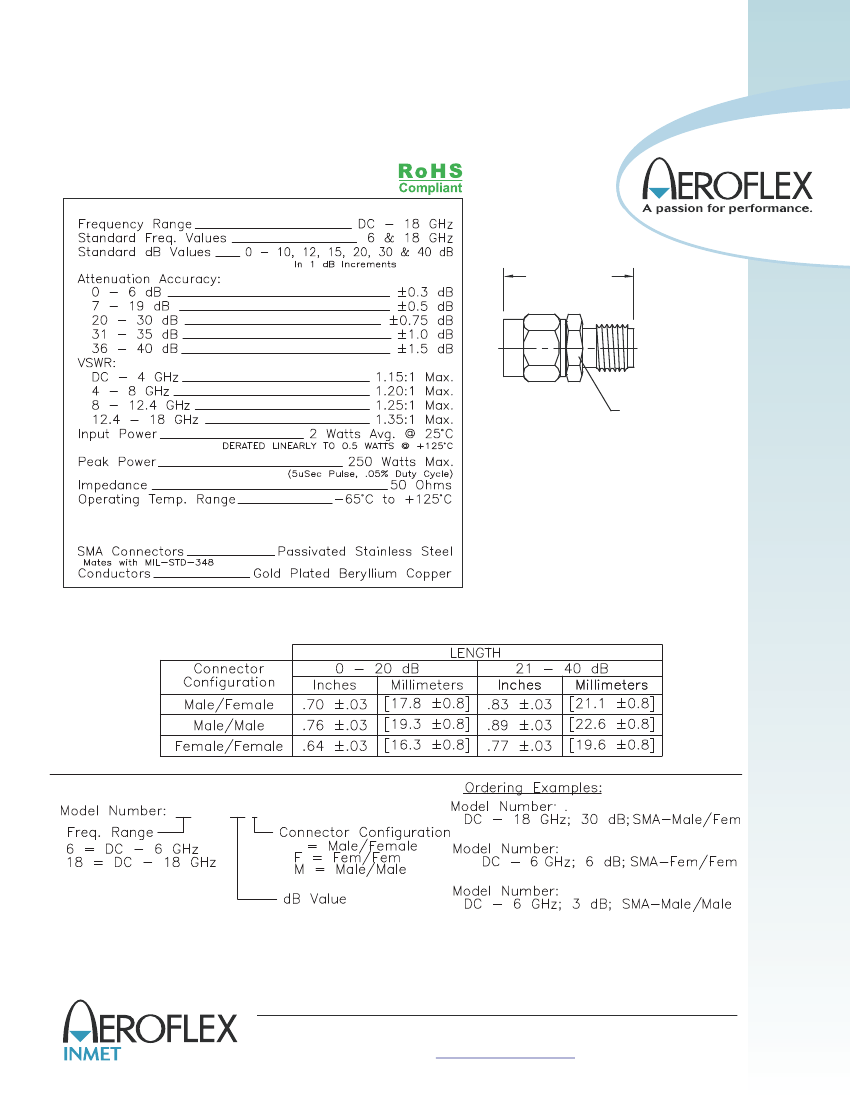

DH ATTENUATORS

SMA, up to 18 GHz, 2 Watts

SPECIFICATIONS:

Models: DH

Electrical:

LENGTH

SEE TABLE

5/16 [7.9] Hex

Note: Connectors are Epoxy Sealed

Mechanical:

HOW TO ORDER:

XXDH-XXY

18DH-30

6DH-6F

6DH-3M

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

18 DH-ATT: REV A (M)

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet
