50103-04071-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 50103-04071-001

Preview

50103-04071-001: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size165KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50103-04071-001 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50103-04071-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body width	0.248 inch
subject depth	0.171 inch
body length	0.795 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AG ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	50103
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

XXX

001

Housing

Halogen Free

Color

Black

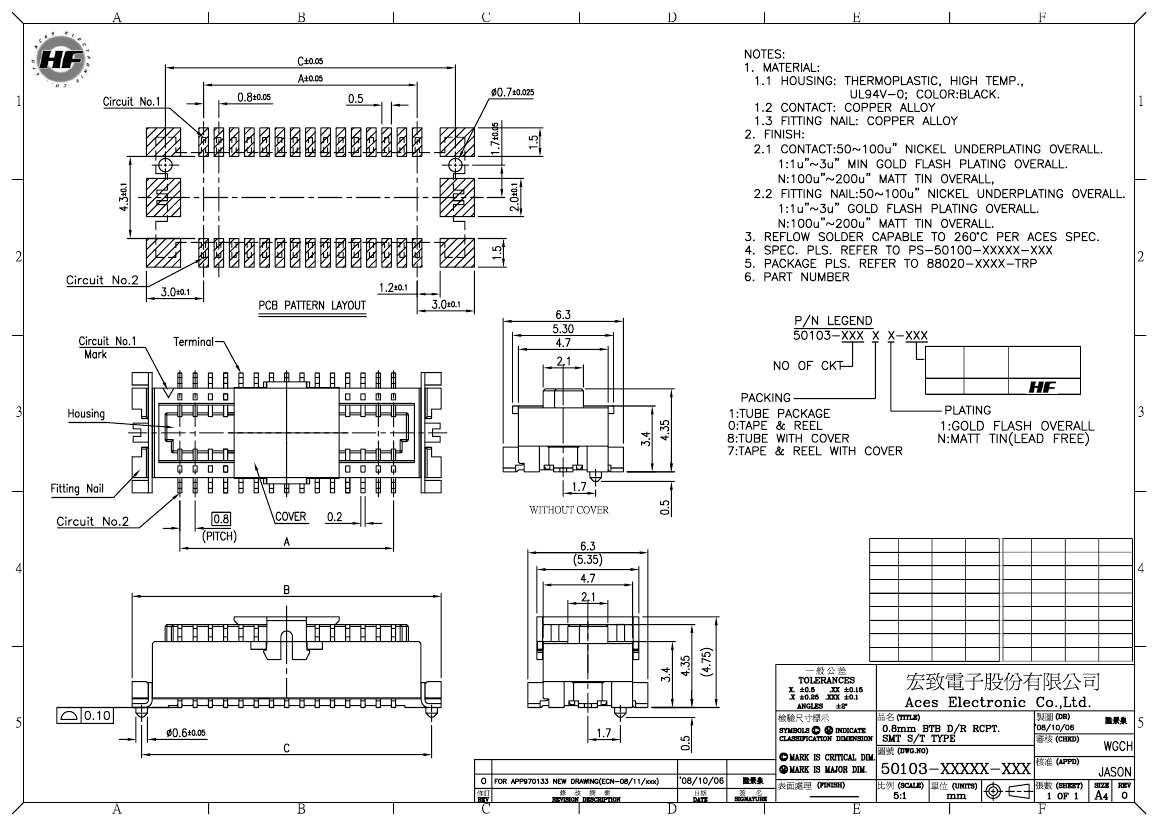

CKT Dim A Dim B Dim C

10

3.2

8.2

7.2

12

4.0

9.0

8.0

14

4.8

9.8

8.8

16

5.6

10.6

9.6

20

7.2

12.2

11.2

24

8.8

13.8

12.8

26

9.6

14.6

13.6

30

11.2

16.2

15.2

CKT Dim A Dim B Dim C

34

12.8

17.8

16.8

36

13.6

18.6

17.6

40

15.2

20.2

19.2

50

19.2

24.2

23.2

60

23.2

28.2

27.2

80

31.2

36.2

35.2

90

35.2

40.2

39.2

100

39.2

44.2

43.2
