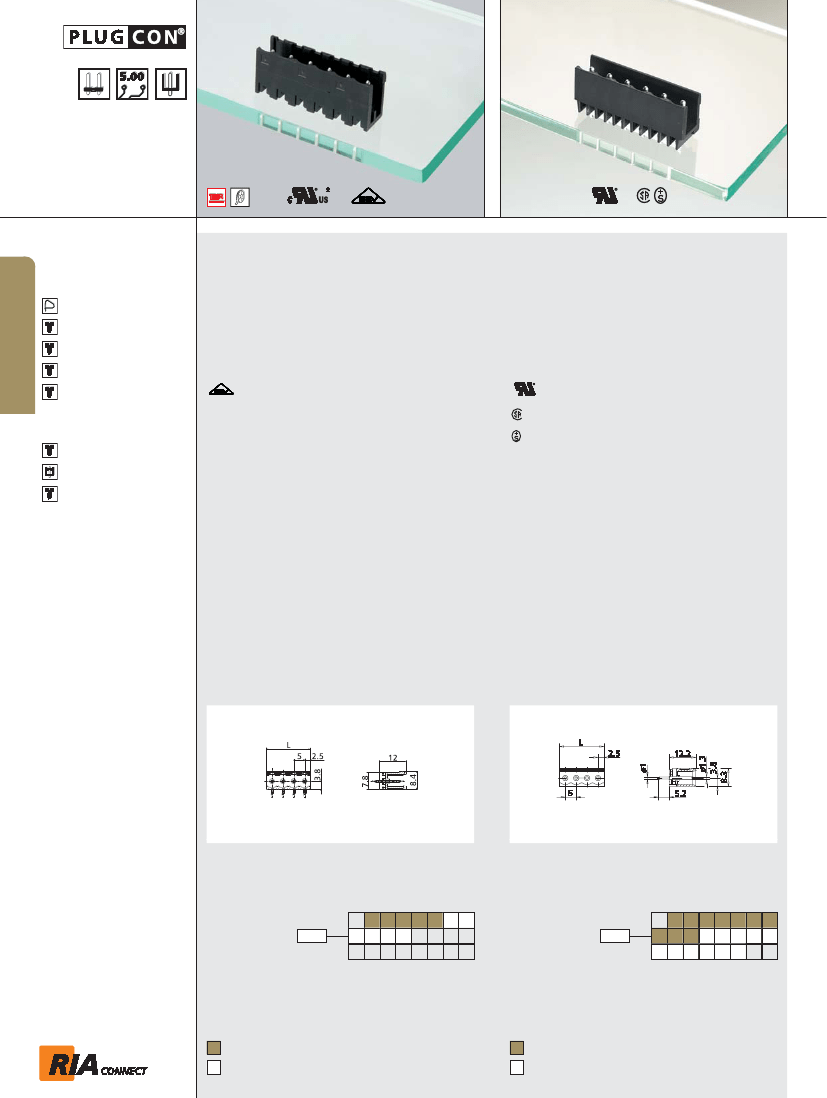

130
Terminal blocks
A
Type 477
Header, centerline 5 mm / 0.197 inches, vertical
mounting, designed for THR, optional Tape on Reel
packaging for automated processing, square contact
pins 1 mm / 0.039 inches, codable, open ends
Type 019
Header, centerline 5 mm / 0.197 inches, vertical
mounting, round contact pins 1.3 mm / 0.051 inches,
open ends
to
Type 477
ASP045
Type 313
Type 314
Type 349
Type 350
page 49
page 96
page 96
page 94
page 94
Technical Data
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.25 mm
Pole size
2 - 12
Color
black
Technische Daten
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
5.2 mm
Pole size
2 - 22
Color
black
to
Type 019
Type 009
Type 026
Type 049
page 93
page 129
page 93
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 477
centerline 5 mm / 0.197 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 019
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
P/N
314771
P/N
310191
* approval pending
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
