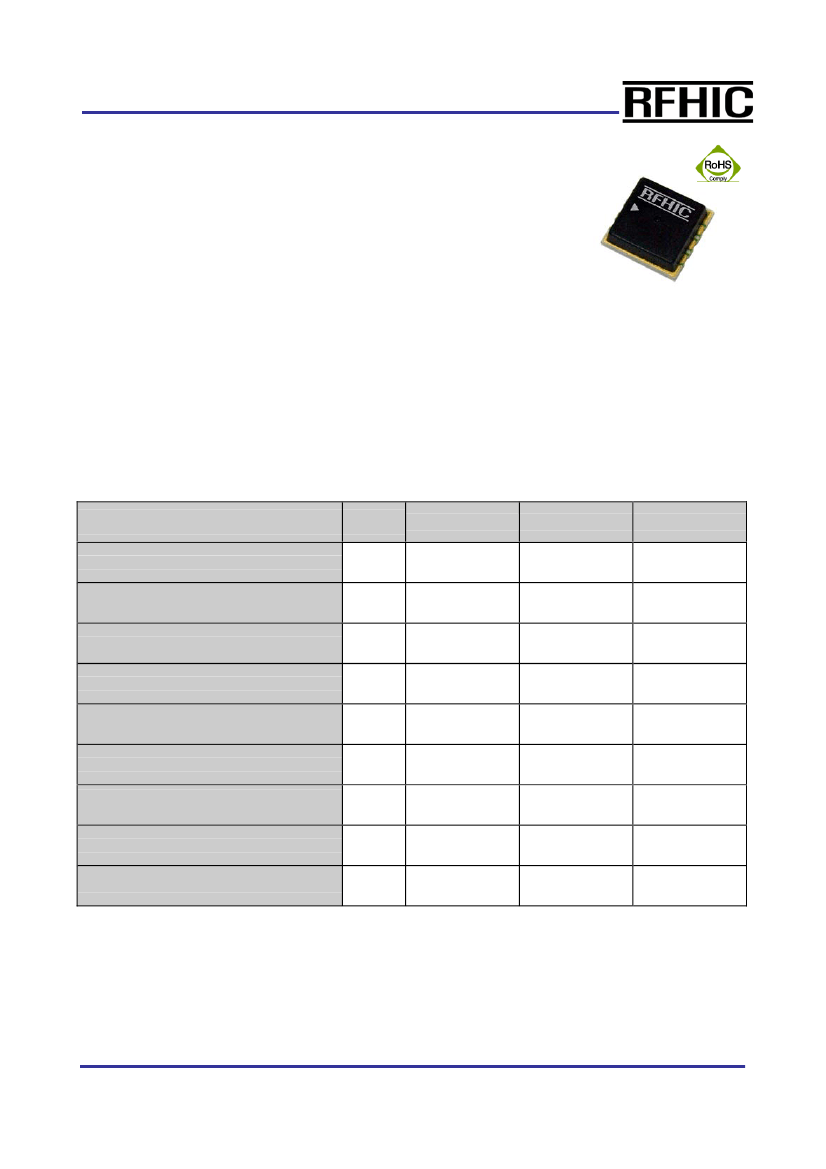

MCM LNA
Product Features
LCL3212-L / LCL3512-L
LCL3712-L
Applications
• 2G & 3G Repeater
• Base Station
• PCS, CDMA, W-CDMA
• GSM, DCS, UMTS
• WiMAX, Wibro, WLAN
• RF Sub-Systems
Package : CP-16B
• Multichip Hybrid Module
• GaAs p-HEMT & MESFET chip on board
• No matching circuit needed
• High IP3 & Low Noise
• Single Supply Voltage (+5V)
• Surface Mount Hybrid Type
• Tape & Reel Packaging
• Small Size, High Heatsink
• Alumina Substrate
• Pb Free / RoHS Standard
Descriptions
RFHIC’s LOW Noise Amplifier series are all hybrid LNA type products which includes all matching for the convenience of
customers. LCL series are focused on higher OIP3 while maintaining low noise. The structure of the device is built with GaAs p-
HEMT die attached on a ceramic thick film substrate. The device is still smaller than the area one would use for the application
notes all together. Depending on the part number, one can use this in different frequency applications. All LNA hybrids are
possible to have custom frequency & spec without any additional NRE cost involved.
All RFHIC products are RoHS compliant.
Electrical Specifications
Parameter
Frequency Range
Small Signal Gain (S
21
)
Gain Flatness
Input Return Loss (S
11
)
Output Return Loss (S
22
)
1dB Compression Point (P
1
dB)
Output 3
rd
Order Intercept Point
(OIP3) (TYP.)
Noise Figure (TYP.)
DC Supply Current (Vdc=+5V)
Units
MHz
dB
dB
dB
dB
dBm
dBm
dB
mA
LCL3212-L
2900~3400
20.5
±1.0
-15
-10
21
42
1.1
180~240
LCL3512-L
3400~3600
19
±1.0
-15
-10
21
42
1.2
180~240
LCL3712-L
3600~3800
18.5
±1.0
-15
-10
21
42
1.3
180~240
Test Condition
①
Supply voltage = +5V, 50ohm System, Ta = 25℃
②
OIP3 is measured with two tones, at an output power of +10dBm/tone separated by 1MHz.
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
page 1/3
▪
All specifications may change without notice.
▪
Version 6.1

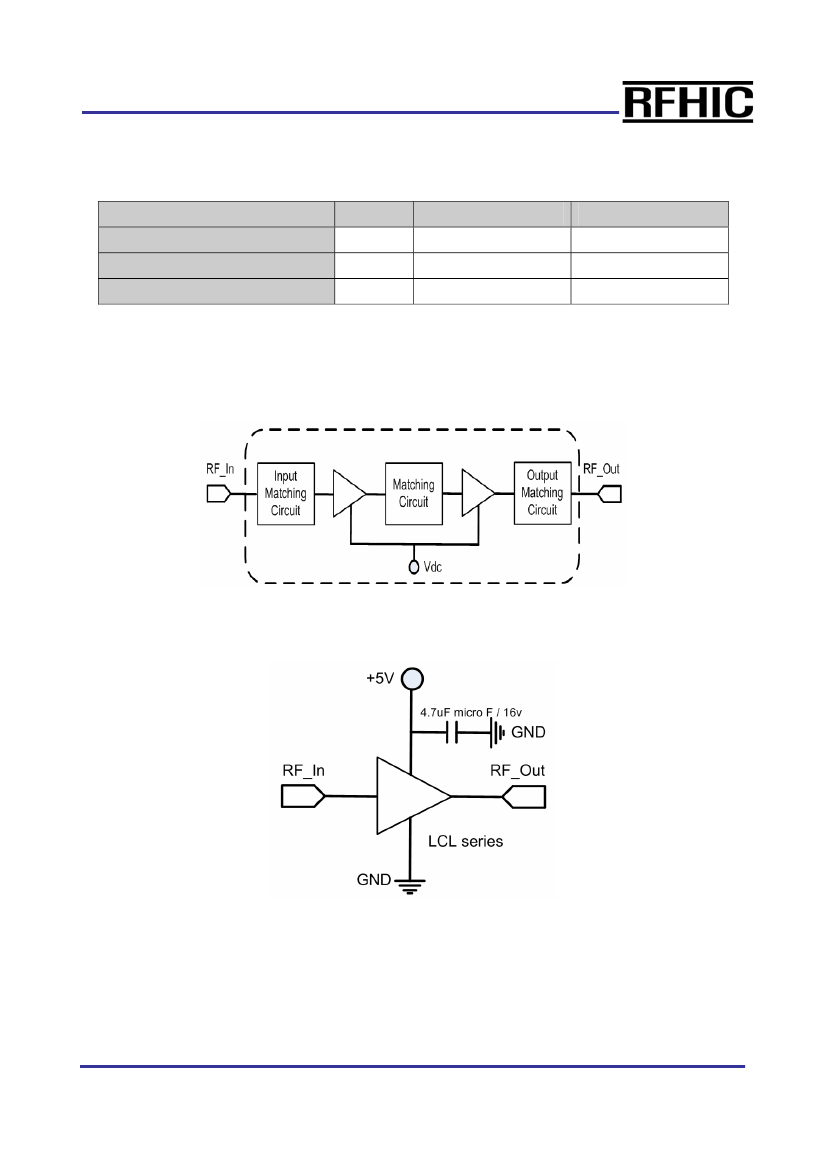

MCM LNA
LCL3212-L / LCL3512-L
LCL3712-L

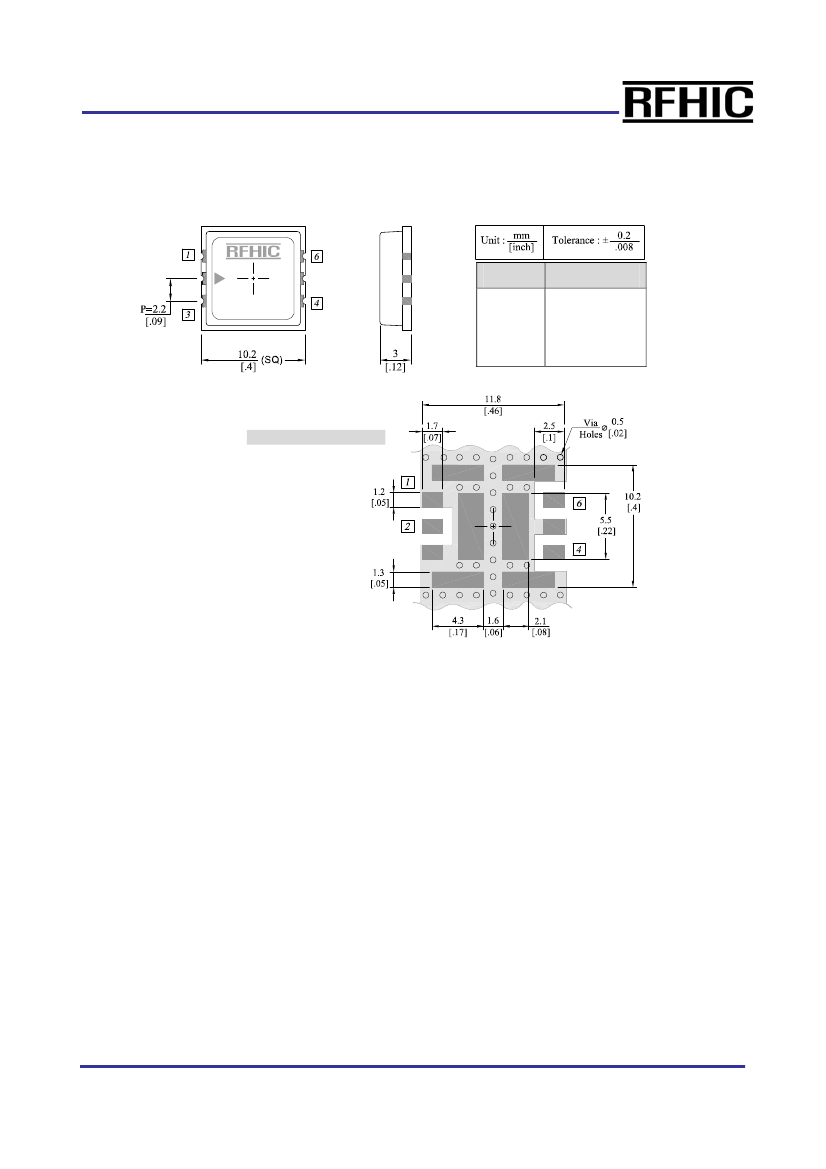

Package Dimensions (Type: CP-16B)
Pin No.
1, 3, 5
2
4
6
Function
Ground
Input
Vcc
Output
Recommended Pattern
ESD Protection
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity.
Proper ESD control techniques should be used when handling these devices. Some of the precautions recommended are;
- Person at a workbench should be earthed via a wrist strap and a resistor.
- All mains-powered equipment should be connected to the mains via an earth-leakage switch.
- Equipment cases should be grounded.
- Relative humidity should be maintained between 40% and 50%.
- An ionizer is recommended.
- Keep static materials, such as plastic envelopes and plastic trays etc. away from the workbench.
